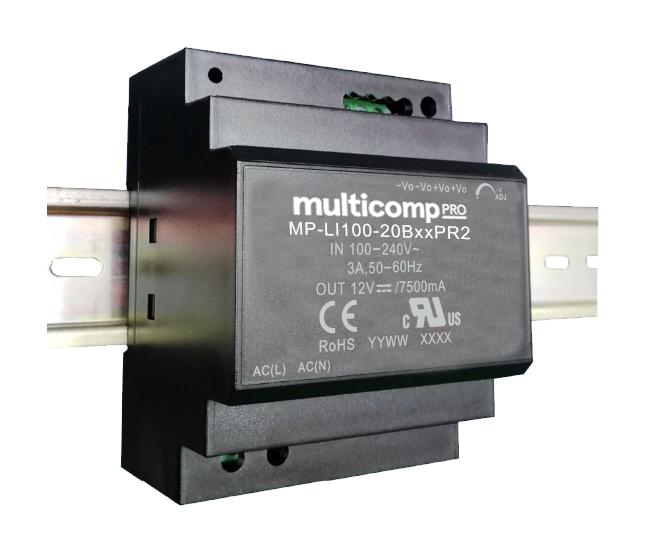

MULTICOMP-PRO MPLI10020B48PR2 Industrial DIN Rail Power Supply
The 100W AC to DC power supply is designed for DIN rail mounting, offering high efficiency, low ripple noise, and adaptability to both AC and DC inputs. It features a universal input range of 85V AC to 264V AC or 120V DC to 370V DC, with output options for 12V/7.5A, 24V/4.2A, and 48V/2.1A. Built to meet international safety standards like UL, EN, and IEC62368, it provides rugged performance in industrial environments with excellent immunity, surge tolerance, and comprehensive protections. Its compact, heat-resistant plastic casing ensures space-saving installation with reliable, long-lasting operation.
MULTICOMP-PRO MPLI10020B48PR2 Industrial DIN Rail Power Supply Specifications:
- Input Voltage Range: 85V AC to 264V AC, 120V DC to 370V DC
- Input Frequency: 47Hz to 63Hz
- Output Power: 100W
- Output Voltage Options: 12V/7.5A, 24V/4.2A, 48V/2.1A
- Efficiency: Up to 90%
- Protection: Short circuit, over-current, over-voltage, surge withstand 300V AC for 5s
- Isolation Test Voltage: 4000V AC (input-output)
- Operating Temperature: -40°C to +70°C
- Casing Material: Heat-resistant plastic UL94V-0
- Dimensions: 70mm x 92.66mm x 58mm
- Weight: 235g
- Certification: UL, EN, IEC62368 safety approvals
- Compliance: RoHS, CE, CB
- Standby Power Consumption: 0.35-0.4 W
- Cooling Method: Free air convection
- Switching Frequency: 65kHz
Buy the Multicomp Series Power Supply: 100W AC to DC DIN Rail Mount Model MPLI10020B48PR2
Purchase the Multicomp Series 100W DIN rail mount power supply MPLI10020B48PR2 online today. Designed for industrial applications, it features universal input voltage, high efficiency, and comprehensive safety protections. Its compact size and rugged construction ensure reliable operation in harsh environments, suitable for machinery and control equipment. Take advantage of fast delivery and excellent support to ensure your project’s success with this energy-efficient power solution built for durability and performance in demanding industrial settings.
Get Multicomp Series 100W power supply MPLI10020B48PR2 today—built for reliable industrial control applications with high efficiency and safety standards.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MPLI10020B48PR2?
You can click on the BUY or RFQ button to purchase MPLI10020B48PR2 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MPLI10020B48PR2?
You can download the MPLI10020B48PR2 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MPLI10020B48PR2?
MULTICOMP-PRO
