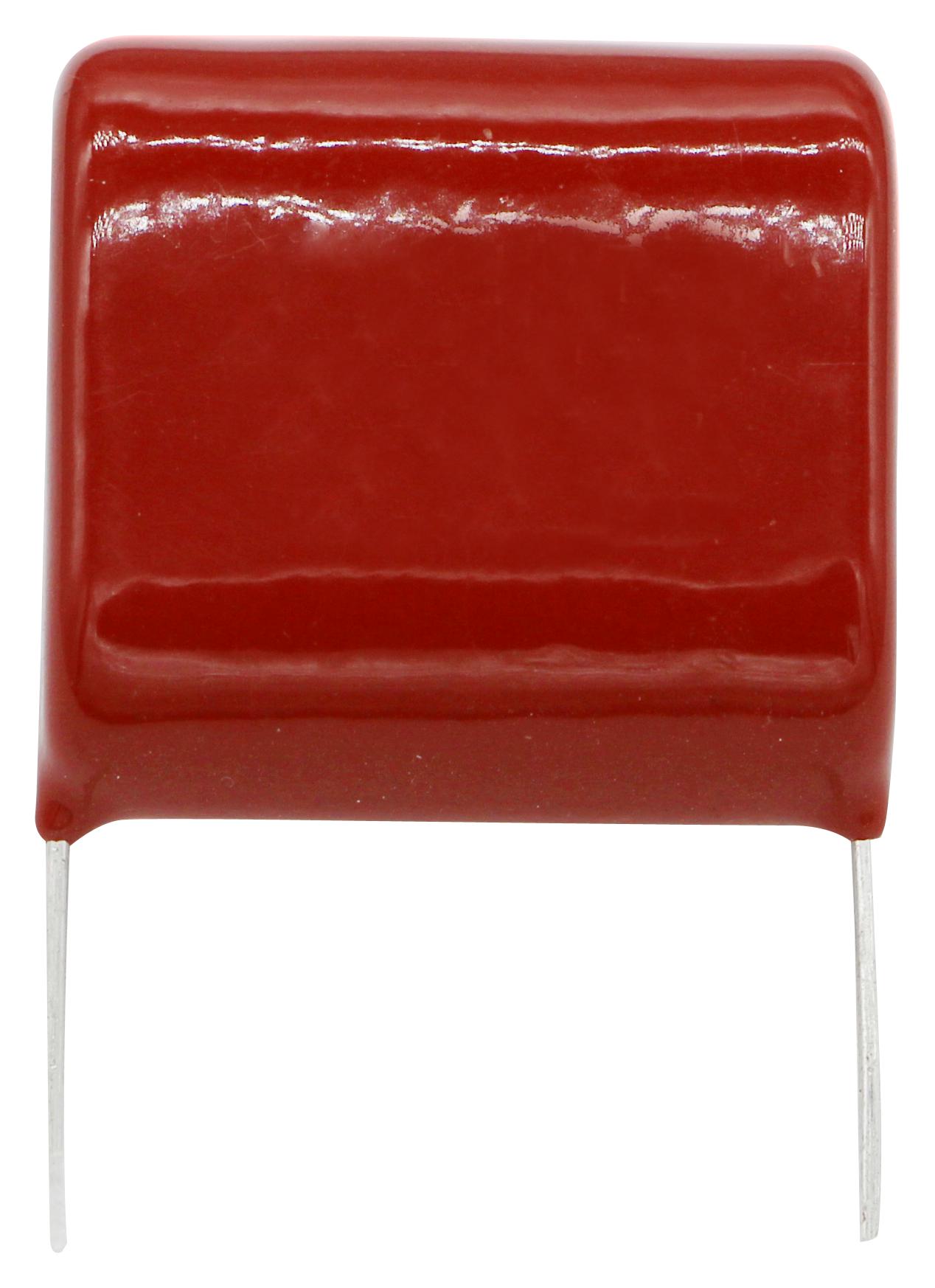

MULTICOMP PRO MPMPP250P33J0I200 Radial Leaded Polypropylene Capacitor
Metallized polypropylene film capacitor with radial lead design, suitable for high-frequency, DC, AC, and pulse circuits. Features flame-retardant epoxy coating (UL 94V-0) and construction with metallized film and tinned copper leads. Offers rated voltages from 250V to 630V, capacitance values ranging from 0.0068uF to 3.3uF, and excellent insulation resistance. Designed for optimal performance in S-correction, monitor, and TV circuits, with high temperature rating up to +85°C and operating temperature range from -40°C to +105°C, ensuring durability and safety.
MULTICOMP PRO MPMPP250P33J0I200 Radial Leaded Polypropylene Capacitor Specifications:
- Material: Metallized polypropylene film
- Construction: Radial leaded design with tinned copper alloy wire leads
- Rated Voltage: 250V, 400V, 630V
- Capacitance Range: 0.0068uF to 3.3uF
- Capacitance Tolerance: ±5% (J)
- Temperature Rating: +85°C
- Operating Temperature: -40°C to +105°C
- Insulation Resistance: 2 100000MQ at 20°C
- Dissipation Factor: < 10 10+ (1kHz, 20°C)
- Flame Retardant Coating: UL 94V-0 epoxy resin
Buy the Metallized Polypropylene Series MPMPP: 250V-630V Capacitor
Order the Metallized Polypropylene Series MPMPP radial leaded capacitor online now. Designed for high-frequency applications, these capacitors feature flame-retardant epoxy coating, wide voltage ratings from 250V to 630V, and capacitance values from 0.0068uF to 3.3uF. Perfect for use in TV, monitor, and pulse circuits, they provide excellent insulation resistance, temperature resilience up to +85°C, and operating range from -40°C to +105°C. Reliable, safe, and easy to install for any electronics project.
Get Metallized Polypropylene Series MPMPP capacitor today—built for high frequency, durable performance, and safe operation in TV and monitor circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPMPP250P33J0I200?
You can click on the BUY or RFQ button to purchase MPMPP250P33J0I200 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPMPP250P33J0I200?
You can download the MPMPP250P33J0I200 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPMPP250P33J0I200?
MULTICOMP PRO
