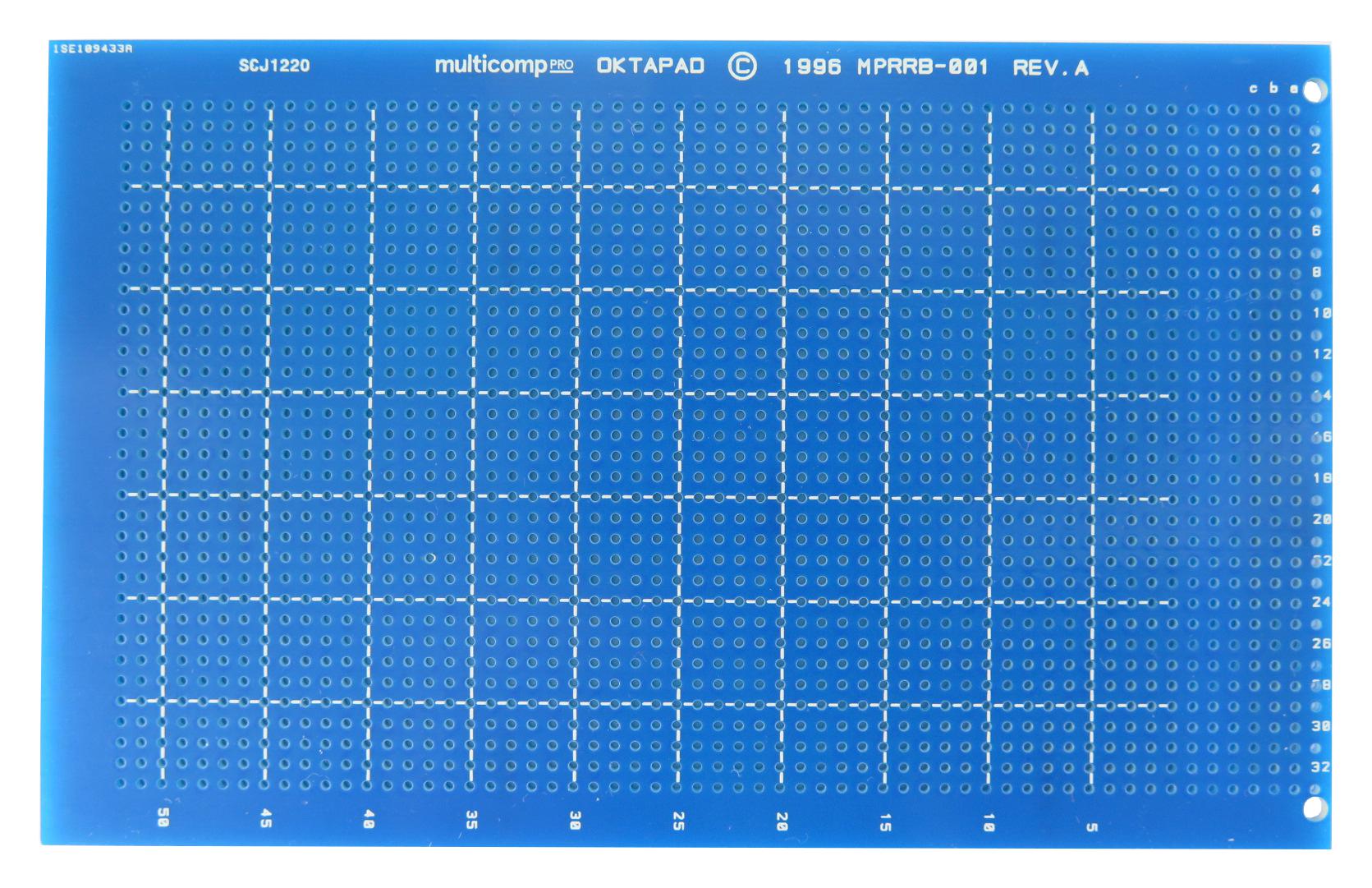

MULTICOMP PRO MPRRB001 Eurocard Circuit Board
This General Purpose Prototyping Eurocard Circuit Board series includes single and double-sided Eurocards, offering versatile layouts for various electronic prototyping needs. Constructed with epoxy glass or FR4, these circuit boards feature octagonal pads for large solder surfaces, silk screen references, and hole matrix grid references for easy component placement and wiring. Suitable for wire wrapping, discrete wiring, and IC placement in any plane, the double-sided boards have a colander ground plane for maximum screening, making them ideal for flexible, high-density prototyping applications in electronic development.
MULTICOMP PRO MPRRB001 Eurocard Circuit Board Specifications:
- Material: epoxy glass or FR4
- Board size: 100mm x 160mm
- Board height: single (3U), double (6U)
- Thickness: 1.6mm
- Copper Thickness: 1 oz/ft² (35 microns, 305 g/m²)
- Hole Size: 1.02mm
- Hole Pitch: 2.54mm x 2.54mm
- Pad Type: octagonal
- Conductive Surface Finish: OSP (organic solderability preservatives)
- Copper Layers: single or double-sided with colander ground plane on double-sided boards
- Connector Mounting: DIN 41612 holes at one end (32/64/96-way)
- Silkscreen references for components and wiring points
- Uses: wire wrapping and discrete component wiring
- RoHS Compliant
Buy the Multicomp Series Eurocard Circuit Board: MPRRB001
Discover high-quality Eurocard circuit boards designed for versatile prototyping and circuit development. These boards are compatible with wire wrapping and soldered components, featuring octagonal pads, silk screen references, and a colander ground plane for maximum screening. Suitable for single and double-sided configurations, with a thickness of 1.6mm and copper finish of 1 oz/ft², they provide excellent electrical performance and durability. Quickly order your reliable, RoHS-compliant Eurocard PCB online to streamline your project development.
Order your Multicomp Series Eurocard Circuit Board MPRRB001 today and enhance your electronic prototyping with reliable, flexible PCB solutions.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPRRB001?
You can click on the BUY or RFQ button to purchase MPRRB001 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPRRB001?
You can download the MPRRB001 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPRRB001?
MULTICOMP PRO
