MULTICOMP PRO MPRRPA105 Enamelled Copper Wire

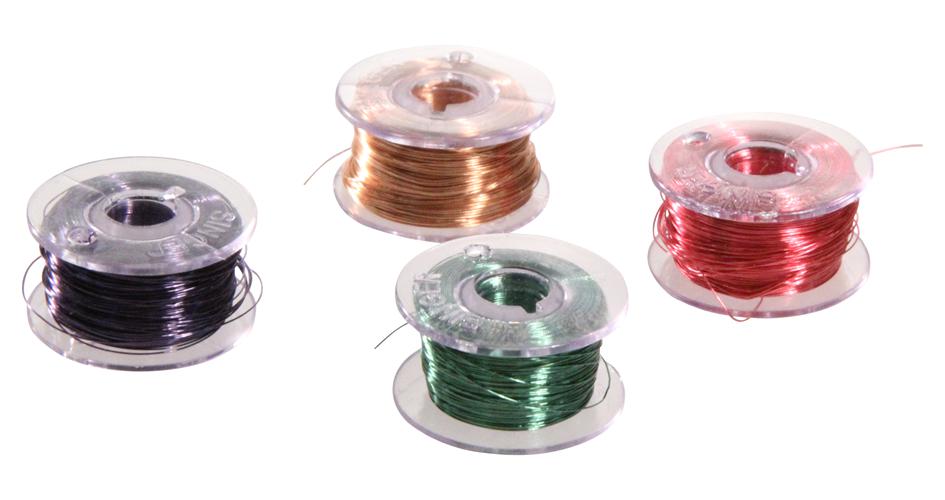

Solderable enamelled copper wire coated with a self-fluxing polyurethane conforming to BS4520 Grade 2. Suitable for prototype wiring, PCB repairs, shorting links, and coil formation. Requires soldering iron temperatures of 400°C or higher, with safety precautions for toxic vapors emitted during soldering. Available in multiple colors including gold, green, and pink, with a reel length of approximately 38 meters. The wire diameter is typically 0.15mm, with an insulation thickness of 0.012mm and a resistance of about 0.967 ohms per meter. Designed for industrial applications, working temperature up to +120°C, and insulation breakdown voltage of 1,500Vrms.
MULTICOMP PRO MPRRPA105 Enamelled Copper Wire Specifications:
- Standard Wire Gauge: 38SWG
- Wire Diameter: 0.15mm
- Insulation Thickness: 0.012mm
- Coating: Grade 2
- Resistance: 0.967Q/m typical
- Current Rating: 82MA
- Insulation Breakdown Voltage: 1,500Vrms
- Max. Continuous Temperature: +120°C
- Soldering Temperature: +400°C to +480°C
- Reel Length: approximately 38m
- Coating Material: Self-fluxing polyurethane
- RoHS Compliant
- Color Variants: Gold, green, pink
- Temperature for Removing Enamel: about 400°C
- Application includes prototype wiring, PCB repairs, and coil forming.
Buy the Multicomp 38SWG U+2013 Reliable Enamelled Copper Wire for Industrial Applications
Order Multicomp enamelled copper wire today and ensure high-quality, reliable connections for your projects. Perfect for prototype wiring, PCB repairs, and coil making, with safe soldering temperatures. The wire comes in vibrant colors like gold, green, and pink, each on a 38-meter reel, providing flexibility and convenience. Easy to use with soldering iron temperatures of 400°C+, but ensure proper ventilation due to toxic fumes. Enhance your industrial or hobby projects with this durable, RoHS-compliant wire suitable for various applications.
Buy Multicomp enamelled copper wire now and experience reliable performance in prototype wiring, PCB repairs, and industrial coil forming.
