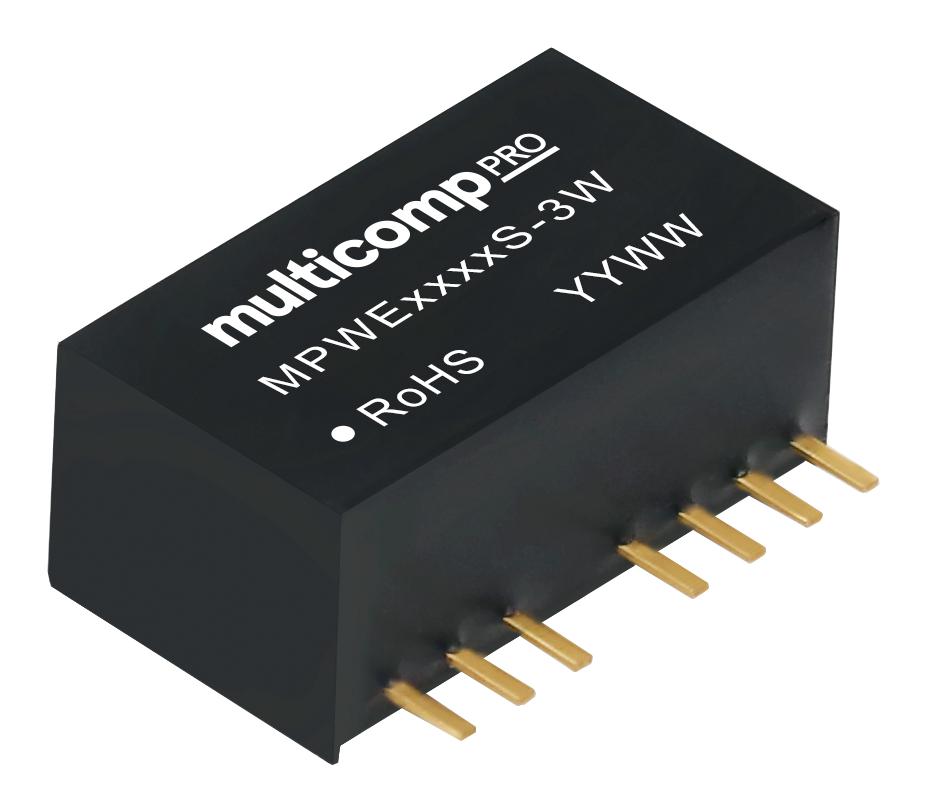

MULTICOMP-PRO MPWE1212S3W DC-DC Converter
The 3W Isolated DC to DC Converter series offers reliable quiet operation with ultra-wide input voltage ranges from 4.5V to 36V, providing stable regulated single or dual outputs for industrial, medical, and communication applications. Featuring efficiencies up to 79%, low no-load power consumption of 0.12W, and 3000VDC isolation, these converters ensure safe, clean power in harsh environments. With protections for over-current, short circuit, and under-voltage, they are built for durability and versatility across various demanding industrial and control fields. RoHS compliant and EN62368 approved, ideal for compact system integration.
MULTICOMP-PRO MPWE1212S3W DC-DC Converter Specifications:
- Input Voltage: 4.5V to 36V
- Output Power: 3W
- Efficiency: Up to 79%
- Input/Output Isolation Test Voltage: 3000VDC
- Operating Temperature: -40°C to +105°C
- Dimensions: 22mm x 9.5mm x 12mm
- Weight: 4.5g
- Isolation Resistance: 1000 MΩ at 500VDC
- Ripple & Noise: 60-100mVp-p at 5% load
- Regulation: ±1-3%
- Protections: Over-current, short-circuit, under-voltage
- RoHS and EN62368 compliant
- Switching Frequency: Up to 300 kHz
- Soldering Resistance: 10 seconds at 300°C
- Vibration Resistance: 5G, 10-150Hz
- MTBF: 1000 hours at 25°C
- Case Material: Flame-retardant black plastic
Buy the Multicomp 1212S3W – Reliable Isolated DC-DC Converter for Industrial Applications
Purchase the multicomp 1212S3W series DC-DC converter online today to ensure your projects benefit from high efficiency, robust isolation, and compact design. Designed for industrial, medical, and communication fields, these converters provide reliable power with protections for over-current, short circuit, and under-voltage. With an ultra-wide input range from 4.5V to 36V, up to 79% efficiency, and 3000VDC isolation, they are ideal for demanding applications where durability and performance are critical. Get yours now for seamless integration and long-term reliability.
Order your multicomp 1212S3W series high-efficiency isolated DC-DC converter today and enhance your industrial or medical power systems with dependable performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MPWE1212S3W?
You can click on the BUY or RFQ button to purchase MPWE1212S3W from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MPWE1212S3W?
You can download the MPWE1212S3W datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MPWE1212S3W?
MULTICOMP-PRO
