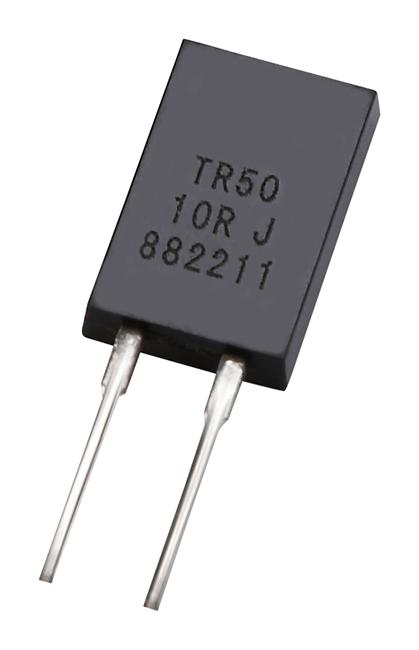

MULTICOMP-PRO MCTR50FDE0220 Power Resistor
The multicomp power resistor delivers 50 watts at 25°C case temperature, housed in a TO-220 style package with a molded case for protection and easy mounting. Its non-inductive design is suitable for high-frequency and pulsing applications such as switching power supplies, UPS, and voltage regulation. Constructed with an alumina substrate, the resistor layer, and lead, it offers electrically isolated casing, high durability, and RoHS compliance. Designed for reliable performance in demanding environments with a working temperature range of -65°C to +150°C, it features a max operating voltage of 350V and excellent electrical characteristics.
MULTICOMP-PRO MCTR50FDE0220 Power Resistor Specifications:
- Power Rating: 50W at 25°C case temperature
- Package: TO-220 style with molded case
- Construction: Alumina substrate, resistor layer, lead, molding
- Operating Temperature Range: -65°C to +150°C
- Maximum Operating Voltage: 350V
- Dielectric Strength: 1,800V AC
- Insulation Resistance: 10GΩ min.
- Resistance Range: < 10Ω available
- Resistance Tolerance: ±0.5%, ±1%, ±2%, ±5%, ±10%, ±20%, ±41%
- Temperature Coefficient of Resistance (TCR): Referenced to 25°C, AR taken at +105°C
- Short Time Overload: AR ≤ 0.3%, 2 times rated power for 5 seconds
- Load Life: AR +1.0%, 2000 hours at rated power in 40+2°C, 90-95% R.H.
- Vibration & Shock: AR 40.2% at 20g peak, Thermal Shock AR +0.3% over 100 cycles
- Lead Material: Tinned Copper
Buy the Multicomp MCTR50FDE0220 – Reliable Power Resistor for Industrial Applications
Enhance your electronic projects with the high-performance multicomp power resistor. Designed for durability and reliability, it handles 50 watts at 25°C with excellent electrical and thermal characteristics. Its non-inductive design ensures optimal performance in high-frequency and pulsing environments such as switching power supplies, UPS systems, and voltage regulation circuits. Easy to mount with molded casing and alumina substrate construction, this resistor offers a wide operating temperature range from -65°C to +150°C and complies with RoHS standards. Perfect for demanding industrial, commercial, and technical applications, this power resistor ensures safety, efficiency, and longevity in your designs.
Buy multicomp MCTR50FDE0220 now and experience unmatched reliability and performance in high-power electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCTR50FDE0220?
You can click on the BUY or RFQ button to purchase MCTR50FDE0220 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTR50FDE0220?
You can download the MCTR50FDE0220 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCTR50FDE0220?
MULTICOMP-PRO
