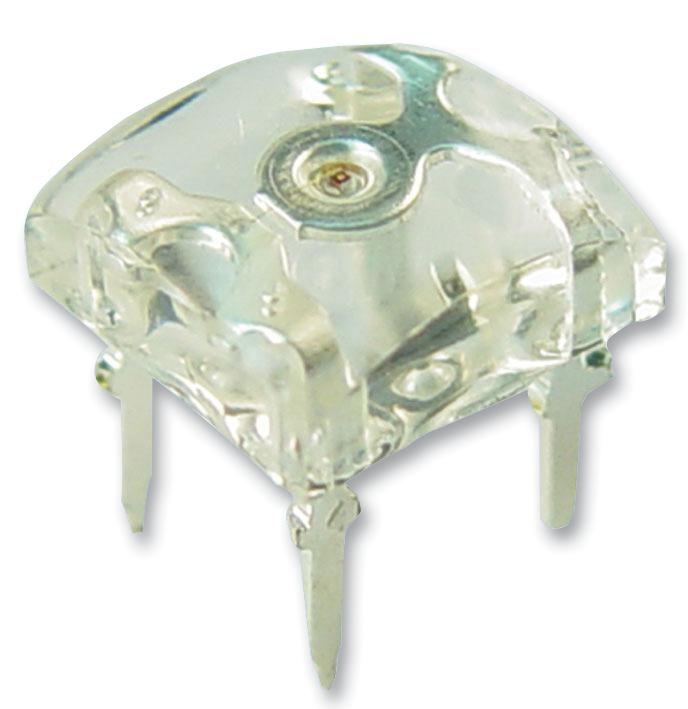

MULTICOMP PRO OVA1068 High Power LED
High Power Super Flux LEDs provide intense brightness and high efficiency for various lighting applications. With industry standard 7.62mm square packages and water-clear lenses, these LEDs operate at a wide temperature range from -40°C to +100°C and are suitable for high-current operations up to >100mA. They feature robust InGaN, sapphire, and other materials for vibrant colors including white, blue, green, red, and yellow, with reliable diode characteristics. Perfect for industrial, automotive, and electronic lighting requiring durability and superior luminosity.
MULTICOMP PRO OVA1068 High Power LED Specifications:
- Forward Voltage: 3.2V at 20mA
- Max. Reverse Voltage: <100V
- D.C. Forward Current: 30mA, >100mA for pulse
- Operating Temperature Range: -40°C to +100°C
- Soldering Temperature: Dip 260°C for 5s, Hand 350°C for 3s
- Luminous Intensity: Up to 850 mcd (white), 150 mcd (blue), 540 mcd (green), 120 mcd (red), 520 mcd (yellow)
- Wavelength: 465 nm (blue), 520 nm (green), 625 nm (red), 589 nm (yellow), white emission
- Package Size: 7.62mm square
- Water clear lens for high brightness
- Radiation angles: 10°, 20°, 40°, 50°, 60°
- Materials include InGaN, sapphire
- Operating and Storage Temperature: -40°C to +100°C
- Soldering Conditions: Dip 260°C for 5s, Hand 350°C for 3s
Buy the Multicomp Series Super Flux LED: OVA1068
Purchase the Multicomp Series OVA1068 high-power LED online today to enjoy reliable high luminance lighting solutions for industrial, automotive, and electronic applications. Designed with industry-standard 7.62mm square packages and water-clear lenses, these LEDs deliver vibrant colors including white, blue, green, red, and yellow, with excellent thermal performance across a wide temperature range. Featuring robust materials like InGaN and sapphire, the OVA1068 ensures long-lasting, energy-efficient operation suitable for high-current applications. Secure your supply of quality LEDs now for superior illumination and durability.
Get Multicomp Series OVA1068 high-power LED today—built for precision, high brightness, and long-lasting durability.
