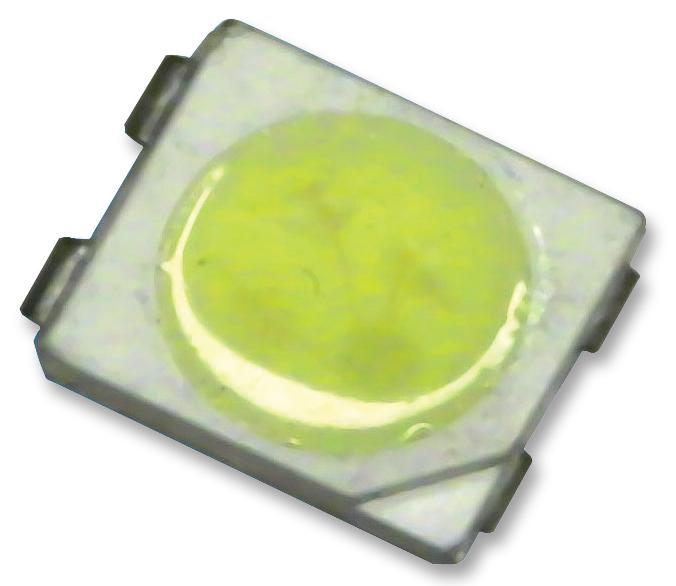

MULTICOMP PRO OVS3301 High Brightness SMD LED
This high-brightness SMD LED from Multicomp Pro offers exceptional visibility with a super wide viewing angle and stable optical performance. Encased in a standard PLCC-4 package, it features InGaN / Sapphire technology emitting brilliant white, blue, green, yellow, and red colors. Operating within -25°C to +85°C, it supports a forward voltage of around 3.2V at 20mA and can handle pulse currents exceeding 100mA, making it ideal for various lighting and indication applications. Its compact size of approximately 3.2mm x 2.7mm x 1.9mm ensures easy integration into electronic devices, providing reliable, high-luminance illumination.
MULTICOMP PRO OVS3301 High Brightness SMD LED Specifications:
- Size: 3.2mm x 2.7mm x 1.9mm
- Package: Standard PLCC-4
- Lumens: High brightness
- Forward Voltage: ~3.2V at 20mA
- Forward Current: 30mA typical, pulse over 100mA
- Reverse Voltage: < 5V
- Operating Temperature Range: -25°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Soldering Temperature: 260°C for 5 seconds
- Viewing Angle: Super wide, approximately 120 degrees
- Color Wavelengths: Blue 465 nm, Green 520 nm, Yellow 591 nm, Red 625 nm, White (CIE x=0.31, y=0.3)
Buy the Multicomp Series OVS Series Bright LED: OVS3301
Experience reliable illumination with the Multicomp OVS3301 high-brightness SMD LED, featuring wide viewing angles and compact dimensions. Designed for easy integration, this LED supports high pulse currents over 100mA and operates within a temperature range of -25°C to +85°C. Its robust construction ensures long-lasting performance in various electronic projects, providing excellent brightness and color stability. Perfect for indication, backlighting, and custom lighting solutions. Purchase online now and enhance your electronic designs with high-quality illumination that lasts.
Get Multicomp OVS3301 today—built for precision and long-lasting durability in lighting applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO OVS3301?
You can click on the BUY or RFQ button to purchase OVS3301 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part OVS3301?
You can download the OVS3301 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of OVS3301?
MULTICOMP PRO
