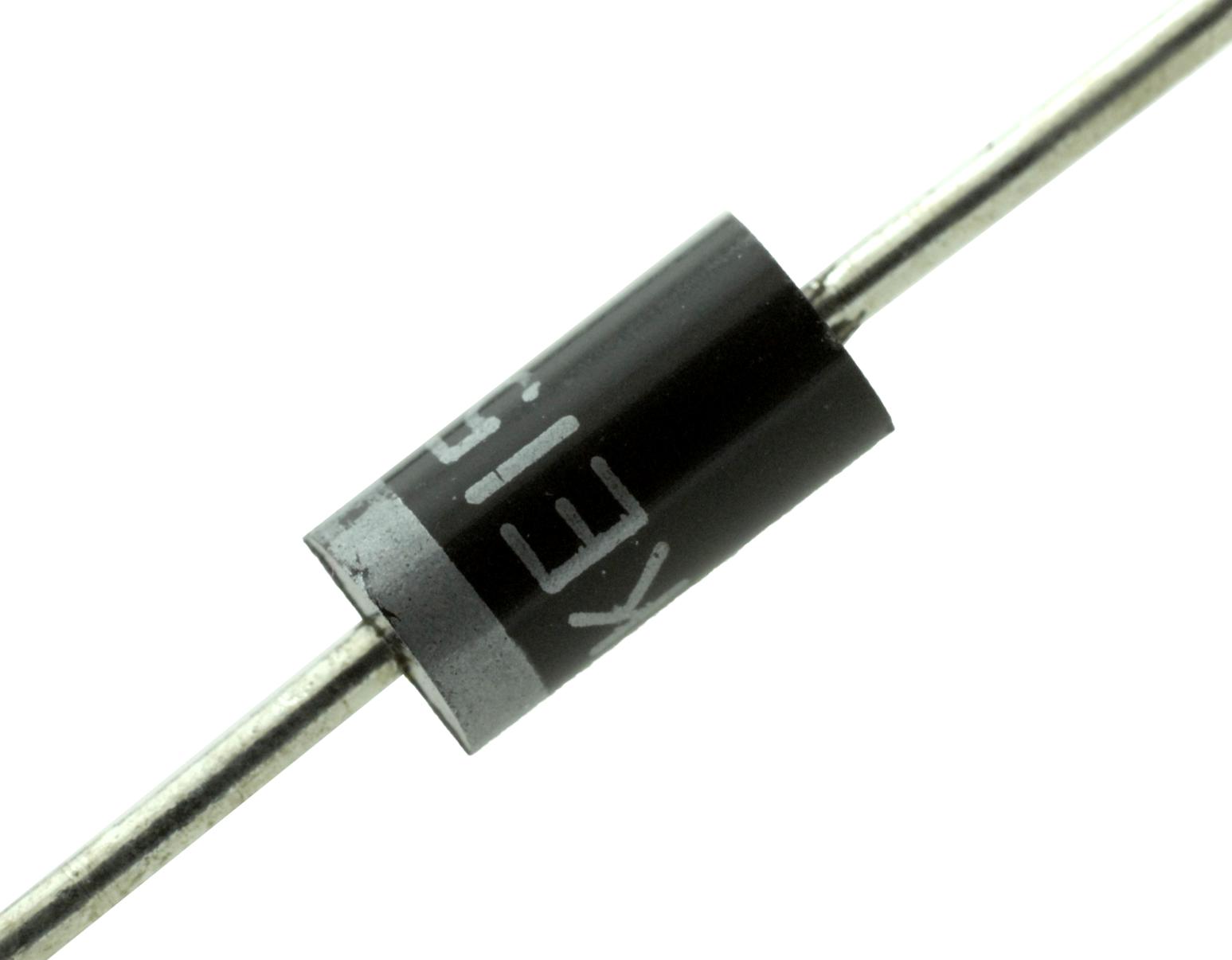

MULTICOMP PRO P6KE15A TVS Diode
The P6KE series TVS diode provides a surge capability of 600W for a 10 x 1000 microsecond waveform with a 0.01% duty cycle. It meets and exceeds environmental standards such as MIL-STD-19500 and is available in both unidirectional and bidirectional configurations. This diode features excellent clamping capability, low Zener impedance, and operates over a temperature range from -55°C to 175°C. It is suitable for industrial applications. Extended lead times may occur, with delivery dates varying. Part of Multicomp Pro offerings, rated highly, with a 12-month warranty, ideal for surge suppression and transient voltage protection.
MULTICOMP PRO P6KE15A TVS Diode Specifications:
- Peak Power Dissipation: 600W at 25°C for 1ms pulse
- Maximum Power Dissipation: 5 Watts at 75°C
- Peak Surge Current: 400 Amps for 8.3ms
- Operating Temperature Range: -55°C to +175°C
- Case Style: DO-204AC (DO-15), molded plastic
- Lead Material: Pure tin plated, solderable per MIL-STD-202, Method 208
- Polarity: Color band denotes cathode (bipolar options available)
- Dimensions: Diameter 0.034 inches (0.9 mm), lead length 0.375 inches (9.5 mm)
- Weight: 0.42g
- Electrical Characteristics: Unidirectional and bidirectional rated voltages, leakage current below 1 µA at 10 V, maximum reverse voltage based on part number
Buy the Multicomp Series P6KE 600W TVS Diode: P6KE15A
Choose the Multicomp Series P6KE15A TVS diode for reliable surge suppression and transient voltage protection in industrial and electronic applications. With a surge capacity of 600W and durable construction, this diode ensures your devices are safeguarded against voltage spikes. Its fast response time and low leakage current make it ideal for sensitive electronic circuits. Easy to solder with lead-free materials, it operates within a temperature range of -55°C to 175°C. Available now, this high-quality diode supports your projects with superior reliability and compliance.
Order your Multicomp Series P6KE15A 600W TVS Diode today and give your projects the dependable transient voltage protection they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO P6KE15A?
You can click on the BUY or RFQ button to purchase P6KE15A from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part P6KE15A?
You can download the P6KE15A datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of P6KE15A?
MULTICOMP PRO
