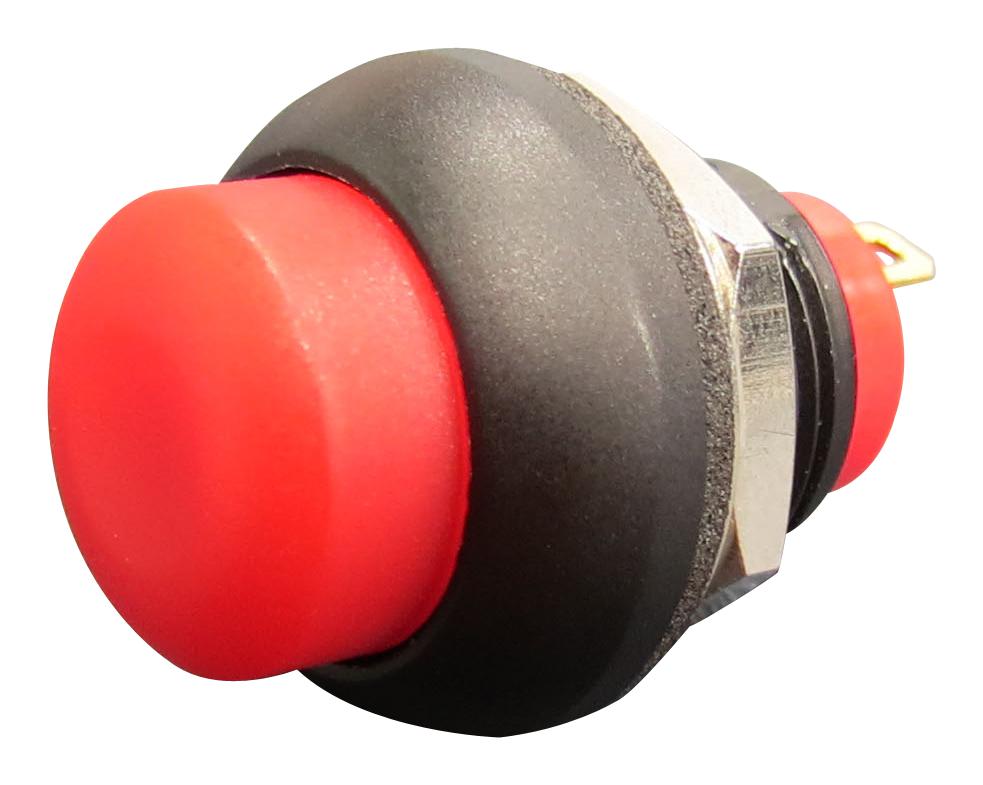

MULTICOMP PRO PAS6B2M1CESG35 Miniature Pushbutton Switch
The PAS6B2M1CESG35 is a sub-miniature pushbutton switch designed for industrial applications, featuring reliable SPST switching with a 1.5mm travel and operating force of 2N to 5N. It has a maximum current of 400mA at 32V AC resistive load, a durable electrical life of 500,000 cycles, and is constructed with a diallyl phthalate case with chrome plating. The switch supports panel thicknesses from 0.8mm to 1.8mm, with UL94V-0 flammability, UL and CSA safety certifications, and lead-free soldering compliance, suitable for various control panels requiring high reliability.
MULTICOMP PRO PAS6B2M1CESG35 Miniature Pushbutton Switch Specifications:
- Max Current/Voltage with Resistive Load: 400mA 32V AC, 100mA 50V DC, 125V AC, 500mA 48V AC, 200mA 50V DC, 200mA 250V AC for metal material
- Initial Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1GΩ min. at 500V DC
- Dielectric Strength: 1,000 VAC rms (standard), 1,500 VAC rms (metal material)
- Electrical Life at Full Load: 500,000 cycles
- Operating Temperature: -30°C to 85°C
- Panel Thickness: 0.8mm min. to 1.8mm max.
- Total Travel: 1.5mm
- Operating Force: 2N to 5N
- Contact Bounce: 10ms
- Mechanical Life: 1,000,000 cycles
- Torque: 0.5Nm max. to nut, 1.5Nm max. for metal material
- Soldering: Max 350°C for 5 seconds, Lead-free
- Materials: Case - Diallyl phthalate (Dap), Cap - Polyamide 6/6, Bushing - Polyamide 6/6
- Switch Function: SPST, OFF-MOM or ON-MOM options, schematics available
- Hardware: M12 Nut, Lock Washer, O-Ring included
- Wire Leads: UL approved multi-wire lead AWG20, 0.6mm section, lengths of 500mm, 90mm, and 100mm
Buy the Multicomp PAS6B2M1CESG35 – Reliable Pushbutton Switch for Industrial Applications
Enhance your control panels with the high-reliability Miniature Pushbutton Switch. Featuring a durable construction, 1.5mm travel, and UL/CSA certifications, it guarantees long-lasting operation with 500,000 cycles. Its simple panel mounting, RoHS compliance, and lead-free soldering make it ideal for industrial environments. Easy to install and compatible with various panel thicknesses from 0.8mm to 1.8mm, this switch ensures dependable on/off switching for automation, machinery, and control systems. Buy online today for quality you can trust.
Buy Multicomp PAS6B2M1CESG35 now and experience unmatched reliability and performance in industrial control systems.
