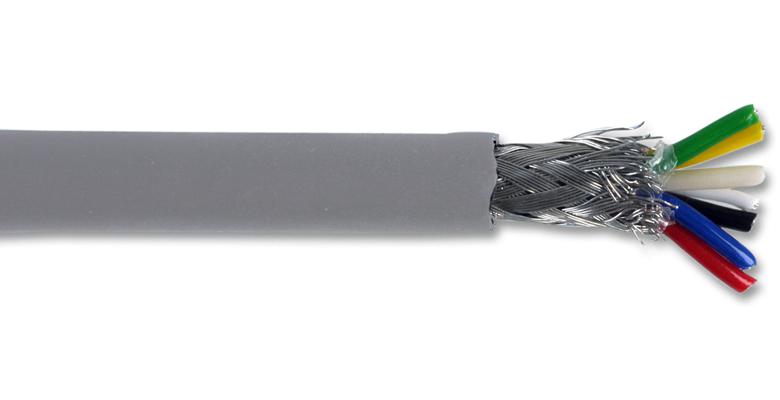

MULTICOMP PRO PP000247 Multicore Data Cable
This screened multicore cable is manufactured to Defence Standard 61-12 Part 4 and is designed for high density wiring between components and within instruments and electronic equipment. It features electrolytic annealed tinned copper conductors, PVC insulation, and a braid screen with a black and grey PVC outer jacket rated for 440V AC rms at 1600Hz. Suitable for high-density electronic wiring in military applications, it ensures reliable signal integrity, minimal electromagnetic interference, and durable construction for demanding environments, with temperature range from 10°C to +70°C and a minimum bending radius of 6 times the cable diameter.
MULTICOMP PRO PP000247 Multicore Data Cable Specifications:
- Conductors: Electrolytic Annealed Tinned Copper 7/0.2mm
- Core Resistance: 92Ω/km @ 20°C
- Insulation Resistance: Min. 100 MΩ×km
- Insulation: PVC, Radial Thickness: 0.3mm
- Outer Sheath: Black and Grey PVC jacket BS6746 Type 6
- Screen: 0.1mm braid, TACW, fill factor 70%
- Voltage Rating: 440V AC rms @ 1600Hz
- Temperature Range: 10°C to +70°C
- Minimum Bending Radius: 6 x cable diameter
- Jacket Diameter: 7.2mm over cores
- Reel Lengths: 25m or 100m options
- Color Coding: As per DEF. STAN. 61-12
- Standard: Defence Standard 61-12 Part 4.
Buy the Acme Series Multicore Data Cable: PP000247
Order the Acme Series Multicore Data Cable PP000247 now and ensure reliable high-density wiring for electronic equipment. Designed for military and industrial applications, it features electrolytic annealed tin copper conductors, PVC insulation, and a braided shield to minimize electromagnetic interference. Its black and grey outer jacket rated at 440V AC rms at 1600Hz guarantees durability and safety in demanding environments. Available in 25 and 100-meter reels, this cable offers excellent flexibility, minimal signal loss, and adherence to strict standards for optimal performance.
Get Acme PP000247 today—built for high-density electronic wiring with durable construction and EMI shielding.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP000247?
You can click on the BUY or RFQ button to purchase PP000247 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP000247?
You can download the PP000247 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP000247?
MULTICOMP PRO
