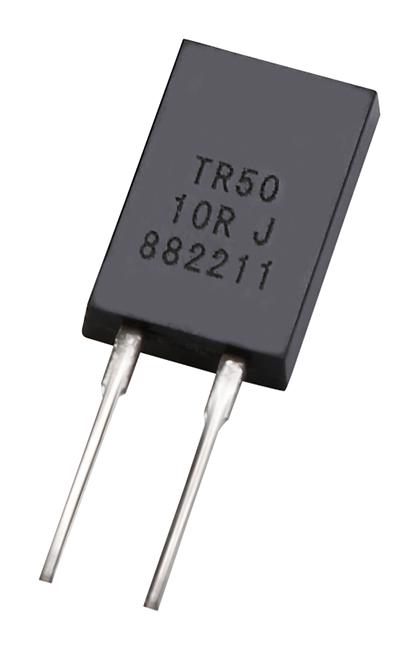

MULTICOMP PRO MCTR50FDE4702 High Power Resistor
The multicomp power resistor is a high-performance, TO-220 style device rated at 50 watts, designed for switching power supplies, pulsing applications, UPS, and voltage regulation. It features a non-inductive design, molded case for protection and easy mounting, and aluminum substrate construction. Suitable for high-frequency applications, it has a resistor range from less than 10 ohms with a maximum operating voltage of 350V, and excellent thermal and electrical characteristics. The resistor withstands temperatures from -65°C to +150°C, with a short-time overload capacity and robust environmental resilience.
MULTICOMP PRO MCTR50FDE4702 High Power Resistor Specifications:
- Power Rating: 50W at 25°C case temperature
- Package: TO-220 style
- Construction: Alumina substrate with resistor layer and lead, molded case
- Maximum Operating Voltage: 350V
- Dielectric Strength: 1,800V AC
- Insulation Resistance: 10GΩ min.
- Temperature Range: -65°C to +150°C
- Temperature Coefficient of Resistance: As specified, typically around ±100 PPM/°C
- Load Life Stability: ±1.0% after 2000 hours at rated power
- Environmental Tests: Solderability, thermal shock, vibration, damp heat with load
- Lead Material: Tinned Copper
- Dimensions: Refer to datasheet diagram for exact measurements
- RoHS Compliant
Buy the Buy Multicomp Power Resistor Part Number MCTR50FDE4702 Online
Purchase the high power resistor from Multicomp online today to benefit from reliable, high-capacity performance suitable for switching power supplies, UPS, and pulsing circuits. Designed with a rugged TO-220 package and aluminum substrate, this resistor ensures durability, thermal stability, and high-frequency effectiveness. With a maximum voltage of 350V and 50W power rating, it is ideal for demanding electrical environments. Place your order now and upgrade your projects with resilient, top-quality components that meet international standards for safety and environmental compliance.
Order your Multicomp Series MCTR50FDE4702 high-power resistor today and ensure reliable performance in your power management and switching applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTR50FDE4702?
You can click on the BUY or RFQ button to purchase MCTR50FDE4702 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTR50FDE4702?
You can download the MCTR50FDE4702 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTR50FDE4702?
MULTICOMP PRO
