MULTICOMP PRO PP000347 Unscreened Multicore Cable
This unscreened multicore cable meets Defence Standard 61-12 Part 5, ideal for high-density wiring in electronic instruments and equipment. Constructed with electrolytic annealed tinned copper conductors, each core is insulated with PVC to BS676 type 2, with a black PVC jacket to BS6746 Type 6. Rated for 440V AC rms at 1600Hz and a temperature range of 10°C to +70°C, it features a 6× minimum bending radius and cores wrapped in plastic tape, suitable for various electronic and electrical applications.
MULTICOMP PRO PP000347 Unscreened Multicore Cable Specifications:
- Number of Cores: 25
- Core Diameter: 3.7 mm
- Jacket Thickness: 0.45 mm
- Overall Diameter: 5.5 mm
- Jacket Material: Black PVC to BS6746 Type 6
- Conductor Material: Tinned copper
- Conductor Size: 16/0.2 mm
- Nominal Core Resistance: 40.10/km @ 20°C
- Current Rating per core: 2.5 Amp
- Insulation Resistance: Min. 200 MΩ/km @ 20°C
- Test Voltage: 2000V (core to core, 1 min)
- Temperature Range: 10°C to +70°C
- Rated Voltage: 440V AC rms @ 1600Hz
- Minimum Bending Radius: 6× cable diameter
- Electrical insulation: PVC to BS676 type 2
- Wrap: Cores wrapped with plastic tape
- RoHS & WEEE Compliant, Defence Standard 61-12 Part 5

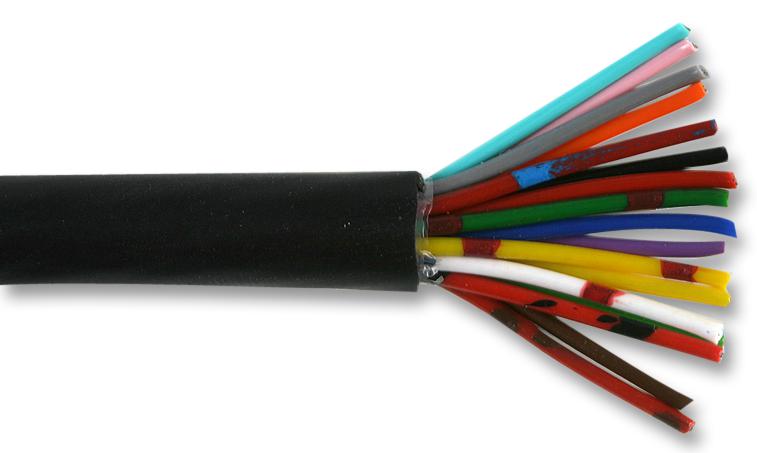

Buy the Buy Multicomp Unscreended Multicore Cable Part Number PP000347 Online
Order the Multicomp unscreened multicore cable part number PP000347 online today to ensure your electronic wiring projects are completed with durable, high-quality cable. Designed for high-density and efficient wiring, it features PVC insulation, a black PVC jacket, and is rated up to 440V. Its tinned copper conductors provide excellent conductivity, while its insulation and wrapping ensure safety and reliability across temperature ranges. Perfect for electronic and electrical applications requiring robust and flexible wiring solutions, available now for fast delivery.
Buy Multicomp PP000347 now and experience reliable high-density wiring for electronic systems with this durable, insulated multicore cable.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP000347?
You can click on the BUY or RFQ button to purchase PP000347 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP000347?
You can download the PP000347 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP000347?
MULTICOMP PRO
