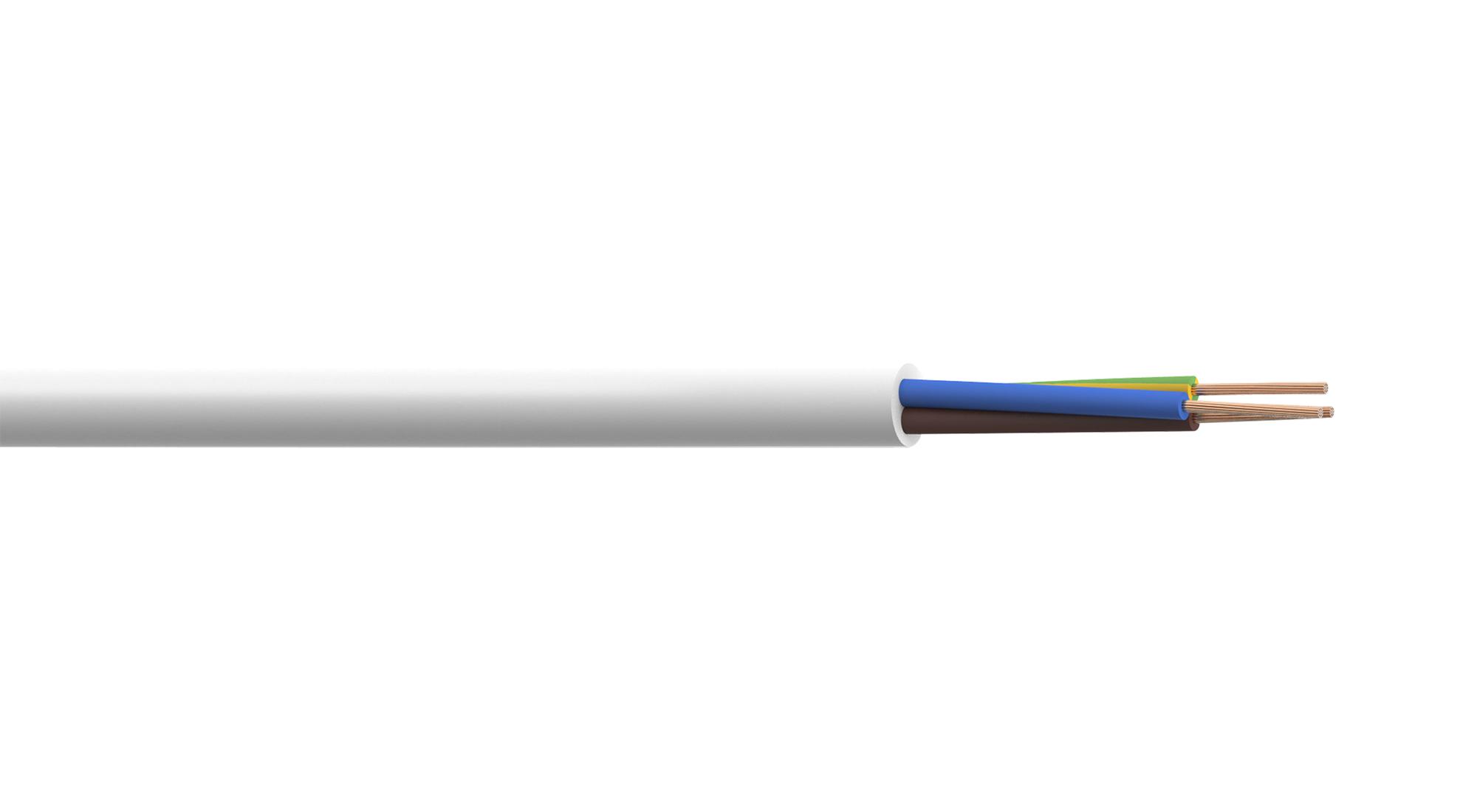

MULTICOMP-PRO PP000926 Flexible Multicore Cable
This unscreened multicore flexible cable is designed for indoor general wiring, ideal for public areas, hospitals, and airports. It complies with RoHS standards and meets BS EN 50525-3-11 and IEC 60332-1-2 regulations. Featuring a high voltage rating of 300/500V and temperature tolerance from -20°C to +60°C, the cable consists of class 5 flexible copper conductors with insulation and sheathing in standard colors like white and black. Its low smoke zero halogen (LSZH) properties enhance safety in fire-sensitive environments.
MULTICOMP-PRO PP000926 Flexible Multicore Cable Specifications:
- Voltage Rating: 300/500V
- Temperature Rating: -20°C to +60°C
- Core Colors: 2 cores - Blue & Brown, 3 cores - Green/Yellow, Blue & Brown, 2 or 3 cores available
- Construction: Class 5 flexible copper conductor per BS EN 60228, with LSZH insulation and sheath
- Minimum Bending Radius: 5 x overall diameter
- Conductor Resistance: 19.5 Ω/km for 1 mm², 7.98 Ω/km for 2.5 mm²
- Nominal Cross Sectional Area: 0.75 mm², 1 mm², 1.5 mm², 2.5 mm²
- Dimensions: Nominal overall diameter ranges from 6.3 mm to 9.9 mm depending on size
- Weight: Ranges from 57 kg/km for 0.75 mm² to 163 kg/km for 25 mm²
- Fire Safety: Complies with BS EN 60332-1-2 and BS EN 60332-3-24.C, LSZH Type TI6 and TM7
- Current Capacity: Up to 20 Amps for 2.5 mm² section
Buy the Multicomp Series LSZH Flexible Cable: PP000926
Purchase the Multicomp Series LSZH Flexible Cable online now for reliable indoor wiring applications in public venues, hospitals, and airports. Designed with fire safety in mind, this low smoke zero halogen cable meets strict safety standards and provides excellent flexibility, durability, and electrical performance. Easy to install in tight spaces and resistant to high temperatures from -20°C to +60°C, it ensures safe and efficient electrical connections. Order now from authorized distributors for quick delivery and quality assurance.
Order your Multicomp Series LSZH Flexible Cable in 1.5 mm² today and ensure safe, flexible wiring for indoor environments with fire safety compliance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP000926?
You can click on the BUY or RFQ button to purchase PP000926 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP000926?
You can download the PP000926 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP000926?
MULTICOMP-PRO
