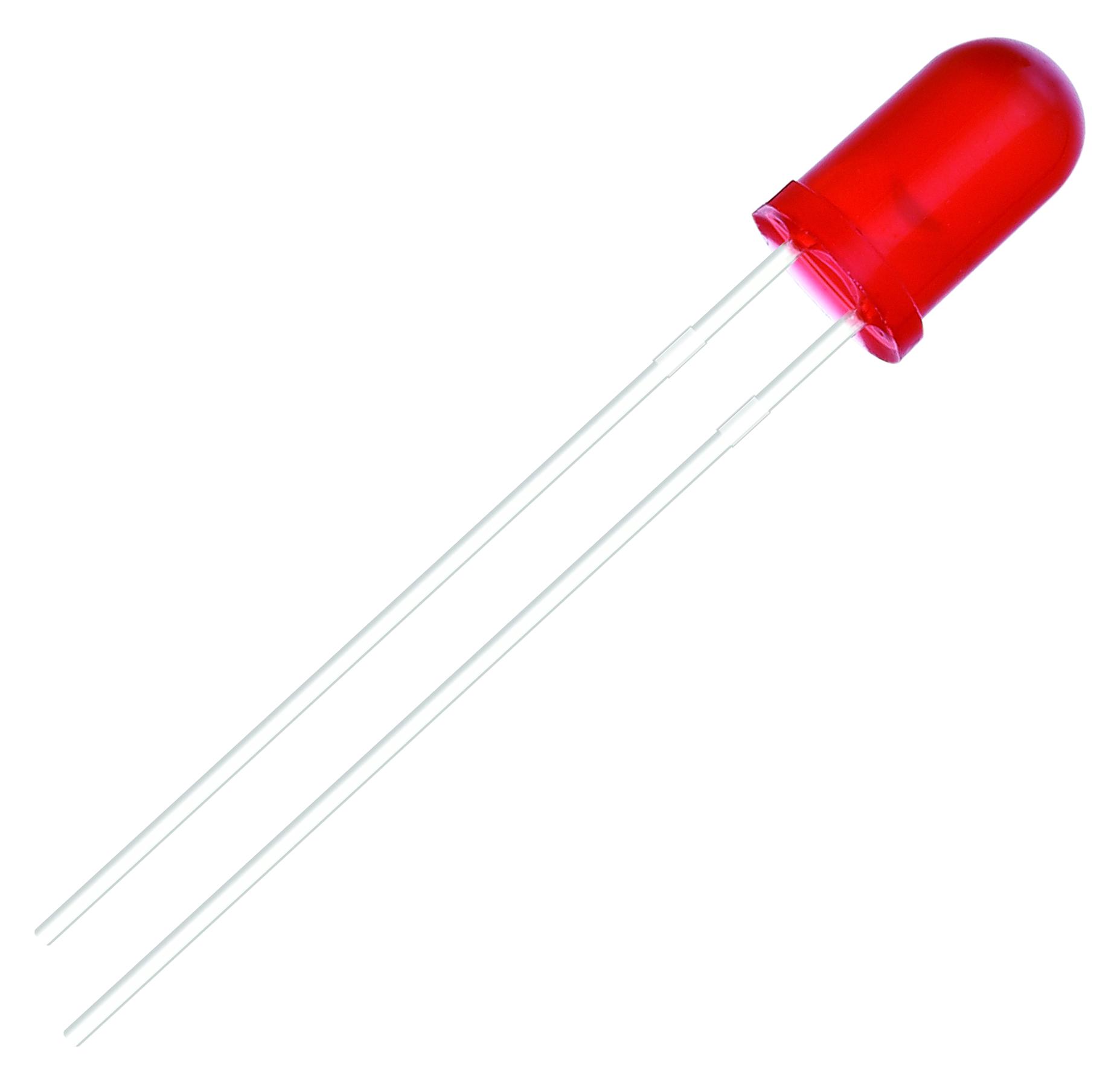

MULTICOMP PRO MP006837 Red Indicator LED
This 5mm red round LED features a 653 nm emission wavelength, 180 mcd luminous intensity, and a wide 45° viewing angle. Designed with AllnGaP die material, it operates efficiently at a forward voltage of 1.7–2.4 V and a recommended current of 30 mA. The LED supports a peak pulse current of 400 mA and has RoHS compliance for environmentally friendly applications. Suitable for various visual indicator uses, it offers reliable performance in temperatures from -40°C to +85°C and includes protections for surge and static discharge. Perfect for low-power, high-brightness indicator projects.
MULTICOMP PRO MP006837 Red Indicator LED Specifications:
- Wavelength: 653 nm
- Luminous Intensity: 180 mcd
- Viewing Angle: 45°
- Forward Voltage: 1.7–2.4 V
- Recommended Current: 30 mA
- Peak Pulse Current: 400 mA
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Power Dissipation: 85 mW
- RoHS Compliant
- Lens Colour: Red Diffused
- Dice Material: AllnGaP
- Peak Wavelength: 653 nm
- Spectral Line Half-Width: 19 nm
- Reverse Voltage: 5 V
- Reverse Current: 10 μA
- Soldering Temperature Range: 260°C for 5 sec.
Buy the Buy MulticompPro Red LED Part Number MP006837 Online
Secure your high-quality red indicator LED from MulticompPro today. Featuring a 653 nm wavelength, 180 mcd brightness, and a wide 45° viewing angle, this LED is ideal for various visual signaling applications. Operating efficiently at 30 mA, it supports pulse currents up to 400 mA and guarantees reliable performance from -40°C to +85°C. It is RoHS compliant and suitable for low-power devices, making it perfect for electronics, indicator lights, and display systems. Order now and improve your project's visibility and reliability effortlessly.
Order your MulticompPro Series MP006837 red indicator LED today and enhance your electronic projects with reliable, high-brightness lighting solutions.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006837?
You can click on the BUY or RFQ button to purchase MP006837 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006837?
You can download the MP006837 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006837?
MULTICOMP PRO
