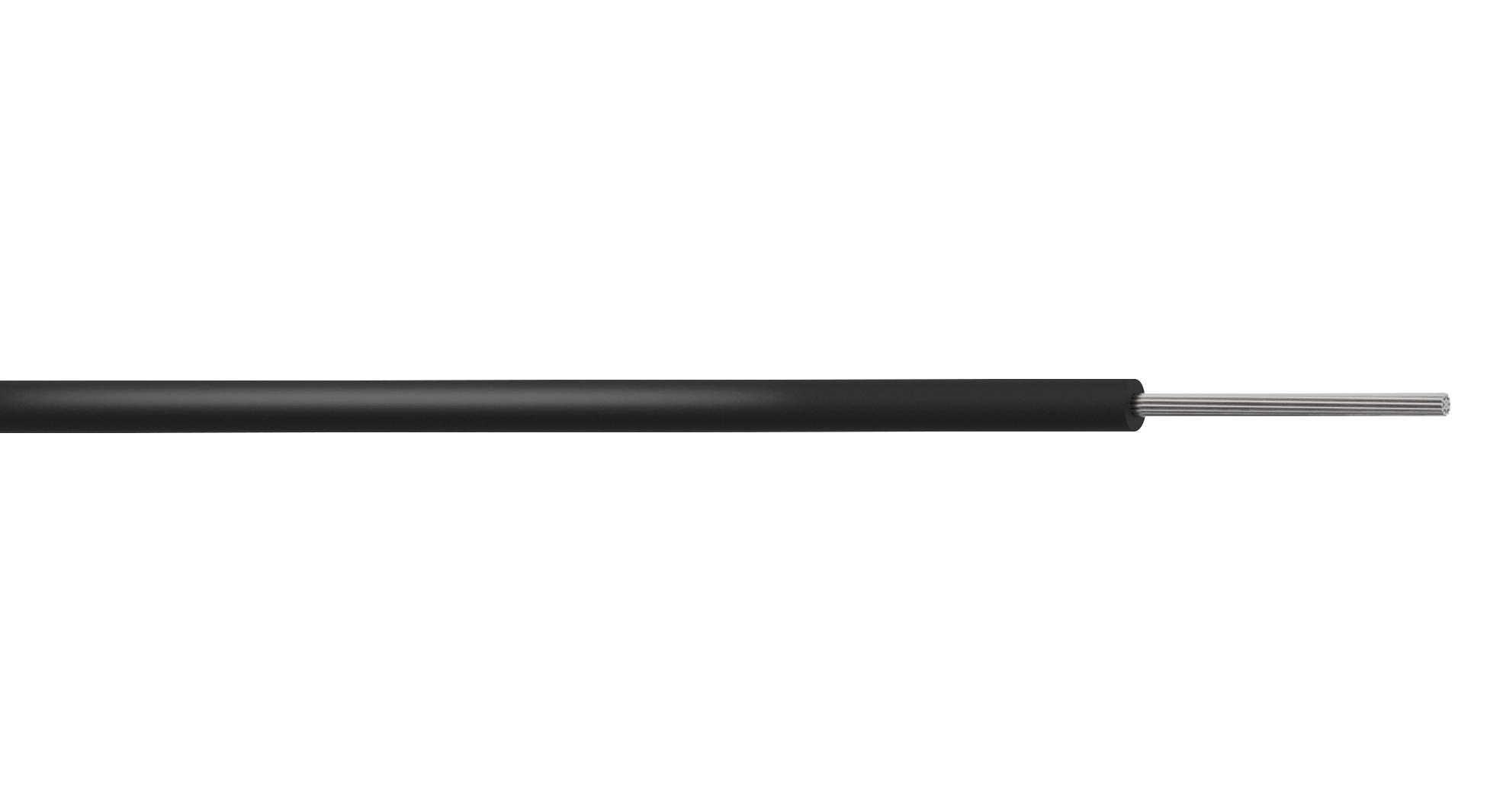

MULTICOMP-PRO PP001083 High Temperature Silicone Wire
This high-temperature silicone wire features flexible Class 5 tinned copper conductors suitable for demanding industrial environments. Capable of withstanding temperatures from -60°C to +180°C, it is ideal for power plants, refrigeration, aerospace, and shipbuilding. The wire's silicone rubber insulation ensures excellent heat resistance, low smoke, and zero halogen emissions. Available in multiple colors, the wire’s robust construction and various sizes make it adaptable for diverse electrical applications requiring durability and safety in extreme conditions, complying with BS EN 60228 standards.
MULTICOMP-PRO PP001083 High Temperature Silicone Wire Specifications:
- Conductor: Class 5 flexible tinned copper according to BS EN 60228
- Insulation: Silicone rubber
- Voltage Rating: 300/500V for sizes 0.25mm² to 2.5mm²
- Temperature Range: -60°C to +180°C
- Minimum Bending Radius: 4 times the overall diameter
- Nominal Cross-sectional Area: 0.25mm² to 25mm²
- Overall Diameter: 1.8mm to 3.5mm depending on size
- Weight: 7kg/km to 34kg/km based on size
- Color Options: Blue, Brown, Green/Yellow, Black, Red, White, Grey, Purple, Yellow
- Resistance at 20°C: 0.25mm² - 86Ω, 0.5mm² - 40.1Ω, 0.75mm² - 26.7Ω, 1mm² - 20Ω, 1.5mm² - 13.7Ω, 2.5mm² - 8.21Ω
- Operating Temperature: Up to 180°C
Buy the Multicomp Series High Temperature Silicone Wire: PP001083
Order the high-temperature silicone wire now to ensure durable, heat-resistant electrical connections for demanding industrial or aerospace applications. With flexible tinned copper conductors and silicone rubber insulation, this versatile wire withstands temperatures from -60°C to 180°C, offering low smoke, zero halogen emissions, and excellent flexibility. Available in multiple sizes and colors, it is perfect for power plants, refrigeration, and shipbuilding projects. Purchase online today for swift delivery and consistent quality to meet all your electrical needs in extreme environments.
Buy Multicomp Series High Temperature Silicone Wire PP001083 now and experience unmatched reliability and performance in extreme environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP001083?
You can click on the BUY or RFQ button to purchase PP001083 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001083?
You can download the PP001083 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP001083?
MULTICOMP-PRO
