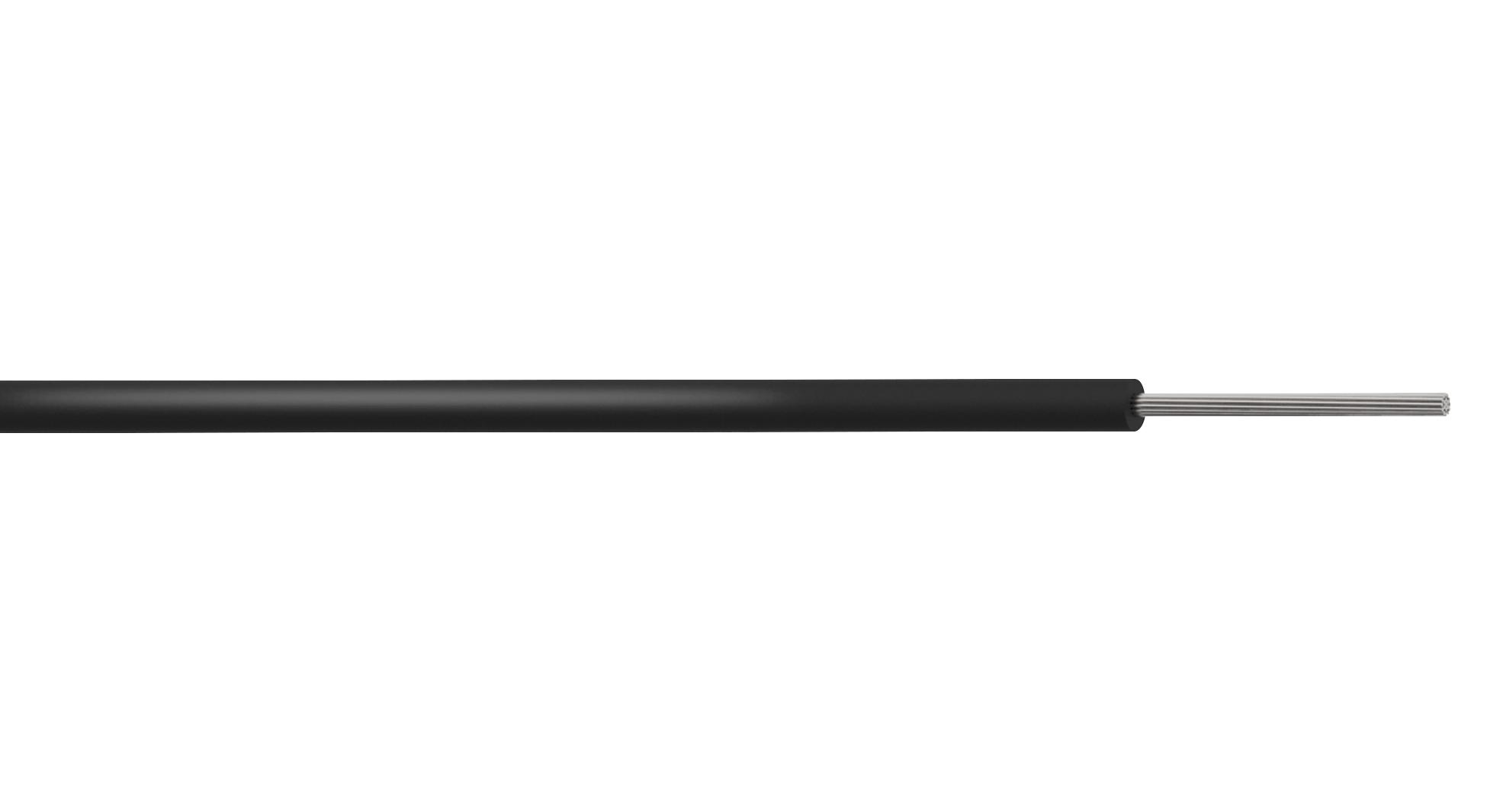

MULTICOMP-PRO PP001089 High Temperature Silicone Wire
High Temperature Silicone Wire is a flexible, heat-resistant cable suitable for industrial applications requiring sustained heat resistance up to 180°C. Made with Class 5 tinned copper conductors insulated with high-quality silicone rubber, it offers excellent resilience at extreme temperatures from -60°C to +180°C. Its flexible design and various color options facilitate easy installation in power plants, refrigeration, aerospace, and shipbuilding. The wire maintains integrity under demanding conditions, with voltage ratings of 300/500V for sections 0.25mm² to 2.5mm², and features a minimal bending radius for safe routing.
MULTICOMP-PRO PP001089 High Temperature Silicone Wire Specifications:
- Voltage Rating: 300/500V for 0.25mm² to 2.5mm² sections
- Temperature Range: -60°C to +180°C
- Conductor: Class 5 flexible tinned copper according to BS EN 60228
- Insulation: Silicone rubber
- Minimum Bending Radius: 4 times overall diameter
- Cable Diameter: 1.8mm to 3.5mm depending on section
- Conductor Resistance at 20°C: 86Ω for 0.25mm², 40.1Ω for 0.5mm², 26.7Ω for 0.75mm², 20Ω for 1mm², 13.7Ω for 1.5mm², 8.21Ω for 2.5mm²
- Current Rating in Air (at 30°C): 15A for 0.25mm², 23A for 0.5mm², 30A for 0.75mm², 35A for 1mm², 44A for 1.5mm², 61A for 2.5mm²
- Reel Length: 100 meters
- Color Options: Blue, Brown, Green/Yellow, Black, Red, White, Grey, Purple, Yellow
- RoHS Compliant
Buy the Buy Multicomp High Temperature Silicone Wire Part Number PP001089 Online
Order the high-quality Multicomp High Temperature Silicone Wire PP001089 online today. Designed for industrial applications, it offers excellent heat resistance up to 180°C, flexible silicone insulation, and robust copper conductors. Ideal for power plants, refrigeration, aerospace, and shipbuilding, this wire ensures durability and reliable performance in extreme conditions. Available in various colors with a reel length of 100 meters, it’s perfect for professional electrical installations and demanding environments where safety and flexibility are paramount.
Get Multicomp High Temperature Silicone Wire PP001089 today—designed for industrial environments, offering excellent heat resistance up to 180°C and flexible routing.
