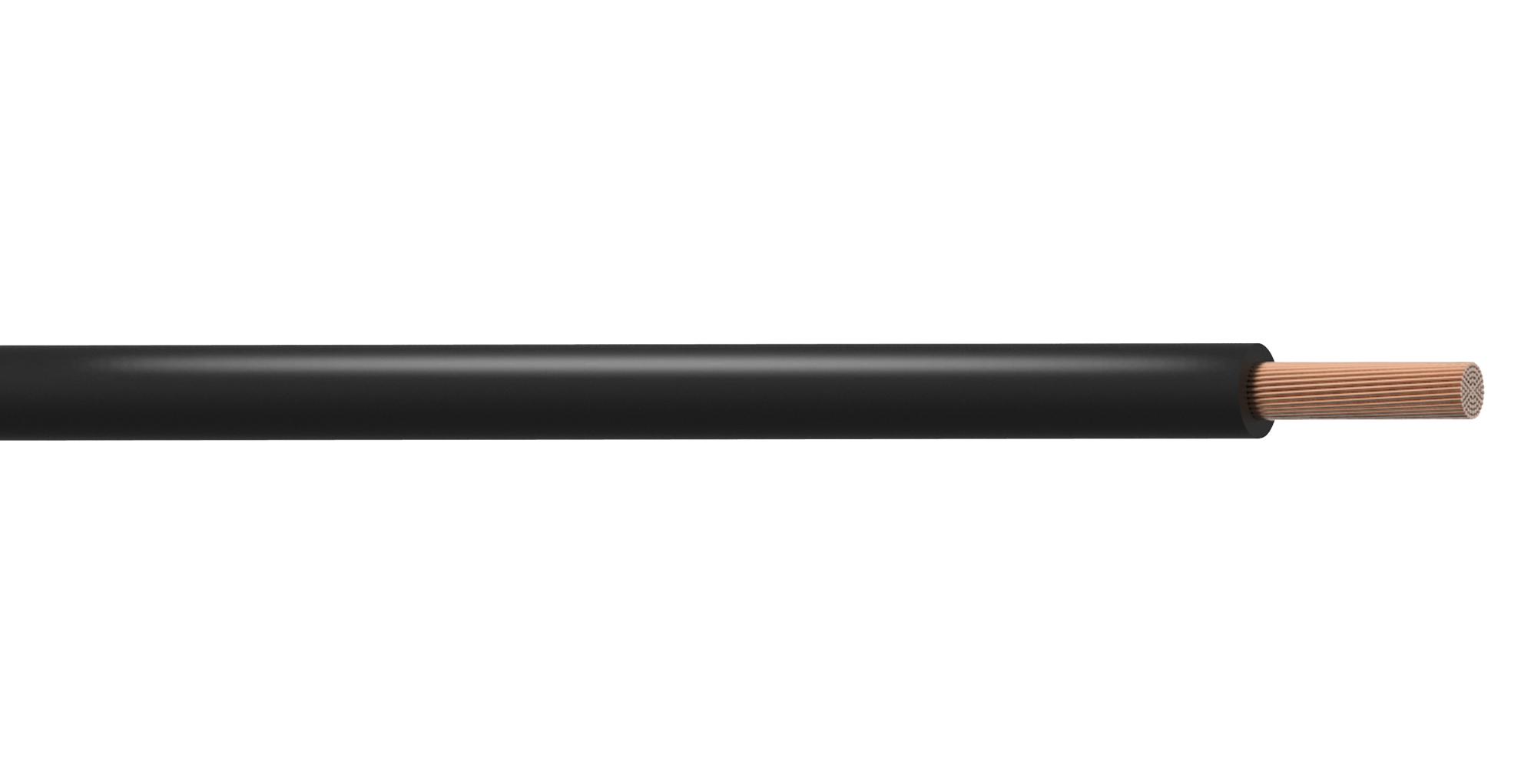

MULTICOMP PRO PP001193 Equipment Wire
Tri-Rated flexible PVC equipment wire designed for high-temperature applications in switch control, relay, and instrumentation panels. Suitable for internal connectors in power switchgear, rectifier equipment, motor starters, and controllers. Conforms to BS 6231, UL, CSA, and IEC standards, with flexible copper conductors and PVC insulation. Rated for 600/1000V with a temperature capacity of up to +105°C, and available in multiple colors and reel lengths, ensuring reliable performance in industrial wiring setups.
MULTICOMP PRO PP001193 Equipment Wire Specifications:
- Voltage Rating: UL, CSA: 600/1000V
- Temperature Rating: UL, CSA: +105°C
- Construction: Class 5 flexible copper conductor, PVC Type TI3 insulation
- Minimum Bending Radius: 6 x overall diameter
- Sheath Colors: Black, Blue, Brown, Dark Blue, Green, Grey, Green/Yellow, Light Blue, Orange, Pink, Red, Violet, White, Yellow
- Standards: BS EN 50525-2-31, BS 6231, UL 21015, CSA C22.2 No. 210
- Reel Lengths: 50 m, 100 m, 500 m (select sizes)
- Conductor Nominal Cross Sections: 0.5mm² to 25mm²
- Current Capacity: 11A to 136A depending on cross section
- Conductor Strand Configuration: 16 x 0.2 mm to 196 x 0.4 mm
- Outer Diameter Range: 0.78 mm to 4.36 mm
- RoHS Compliant
- Application: Internal wiring in power equipment, motor starters, controllers, switchgear
Buy the Multicomp Series Equipment Wire: PVC Control Cable PP001193
Purchase the high-quality multicomp equipment wire online today and ensure your electrical projects meet the highest standards. Designed for high-temperature, flame-retardant performance, this PVC cable is suitable for a wide range of industrial applications, including switchgear, relays, and control panels. Available in various colors and reel lengths, it guarantees flexibility, durability, and safety in demanding environments. Order now to benefit from fast delivery and expert support for your wiring needs.
Buy Multicomp Series Equipment Wire PP001193 now and experience unmatched reliability and performance for your industrial electrical installations.
