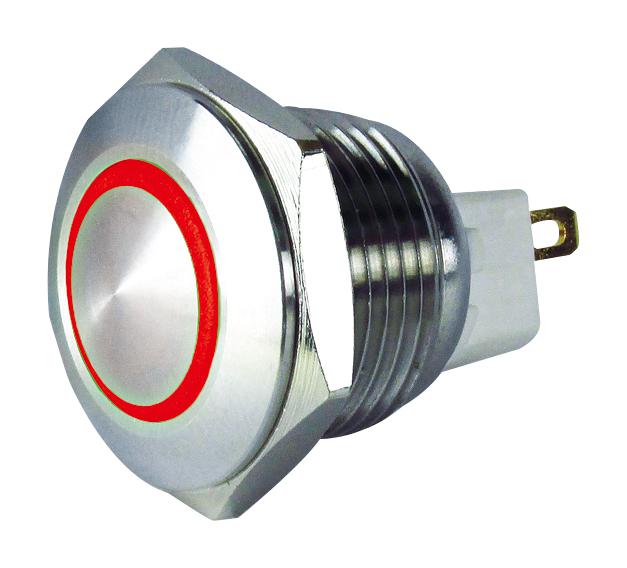

MULTICOMP PRO MC010898 Illuminated Vandal Resistant Switch
The illuminated vandal resistant switch offers a durable and IP67-rated solution suitable for indoor and outdoor applications, featuring stainless steel construction, gold-plated contacts, and high dielectric strength. Available in flush, prominent, and domed top types, it operates at 48V DC with a current > 100mA, ensuring reliability in harsh environments. The switch has a single normally open contact, LED indicator in green, red, or blue, and supports operating temperatures from -30°C to +70°C. Its rugged design includes vibration and shock resistance, with a mechanical life of 1,000,000 cycles and electrical life of 50,000 cycles.
MULTICOMP PRO MC010898 Illuminated Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colour: Green / Red / Blue
- Switch Operation: 1NO.
- Material / Finish: Stainless Steel
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mQ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +70°C (No freezing)
- Operating Temperature: 1-25°C to +50°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude 0.5mm
- Shock Resistance: Damage limit 500 m/sec², Operating limit 200 m/sec²
- Mechanical Life: Momentary 1,000,000 cycles; Maintained 250,000 cycles
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 11g
Buy the multicomp U-2013 Reliable Illuminated Vandal Resistant Switch for Industrial Applications
Order the multicomp illuminated vandal resistant switch online today and enjoy a reliable, IP67-rated switch perfect for harsh environments. Featuring stainless steel construction, 48V DC operation, LED indicators in green, red, and blue, and a single SPST contact, this switch ensures long-lasting durability and high dielectric strength. Its rugged design resists vibration and shock, with a mechanical life of 1,000,000 cycles and an electrical life of 50,000 cycles. Ideal for industrial, outdoor, and vandal-resistant applications, it offers excellent performance and protection.
Get multicomp MC010898 today—built for durability and outdoor resilience in vandal resistant switches.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010898?
You can click on the BUY or RFQ button to purchase MC010898 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010898?
You can download the MC010898 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010898?
MULTICOMP PRO
