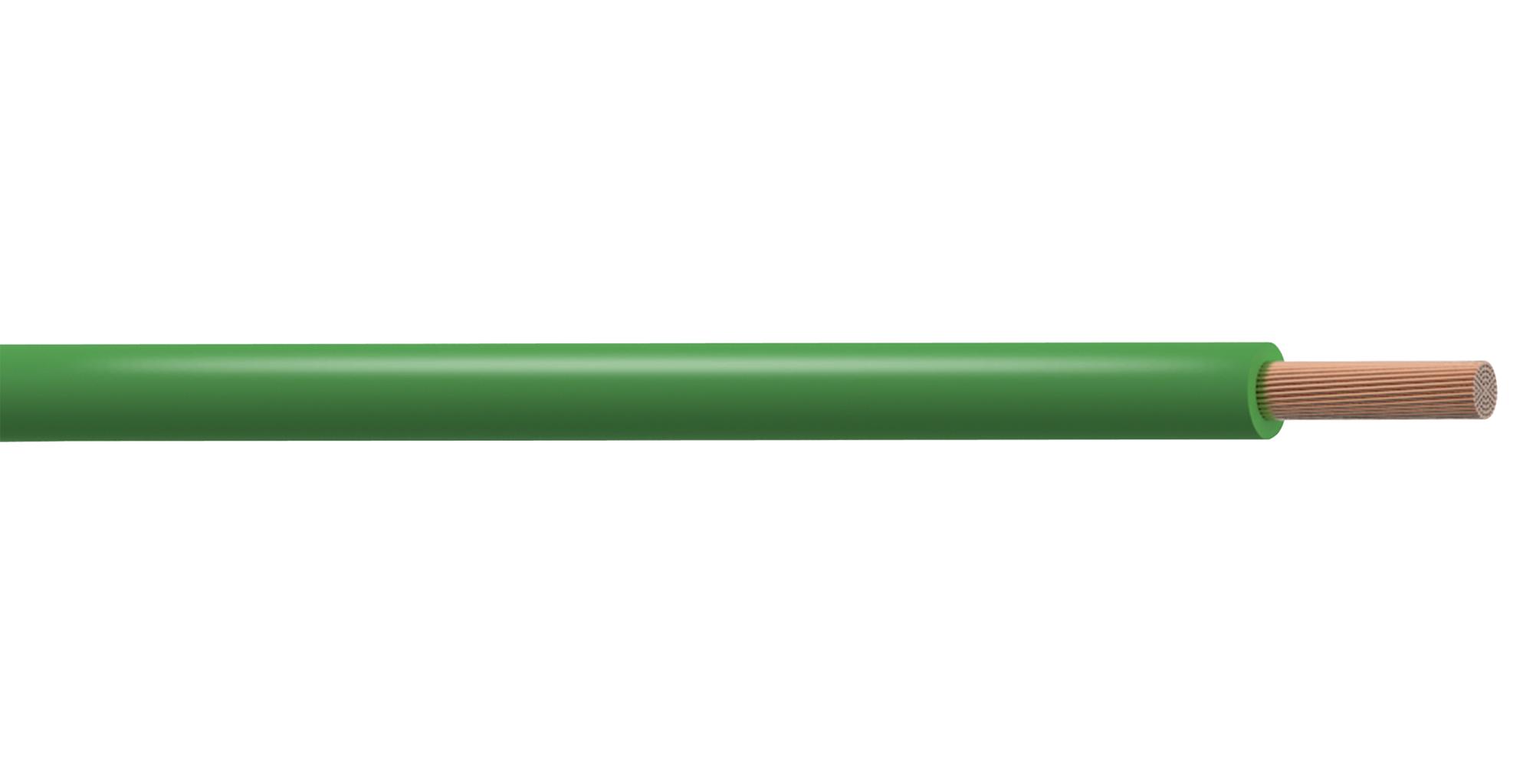

MULTICOMP PRO PP001226 Flexible PVC Equipment Wire
Tri-rated flexible PVC equipment wire designed for high-temperature applications in power switchgear, motor starters, and control panels. It complies with BS, UL, and CSA standards, featuring a Class 5 flexible copper conductor and PVC Type TI3 insulation. Suitable for internal connectors and relay panels, it operates at voltages up to 1000V and withstands temperatures to +105°C. The wire's robust construction includes a flexible copper core and flame-retardant PVC sheath, available in multiple colors and reel lengths for versatile electrical installation and industrial use.
MULTICOMP PRO PP001226 Flexible PVC Equipment Wire Specifications:
- Conductor Material: Class 5 flexible copper
- Insulation Material: PVC Type TI3
- Voltage Rating: 600/1000V (UL, CSA), 300/500V, 450/750V (BS EN 50525-2-31)
- Temperature Rating: +105°C ( UL, CSA), +90°C (BS 6231)
- Minimum Bending Radius: 6 x overall diameter
- Sheath Colors: Black, Blue, Brown, Dark Blue, Green, Grey, Green/Yellow, Light Blue, Orange, Pink, Red, Violet, White, Yellow
- Reel Lengths: 50 m, 100 m, 500 m
- Standards Compliance: BS EN 50525-2-31, BS 6231, UL Style 21015, CSA C22.2 No. 210
- Operating Temperature Range: -15°C to +105°C
- Bending Radius: 6 x overall diameter
Buy the Farnell Series Tri-Rated PVC Equipment Wire: PP001226
Purchase Farnell Tri-Rated PVC Equipment Wire PP001226 online today for reliable high-temperature electrical connections in industrial settings. This versatile wire features flexible copper conductors and flame-retardant PVC insulation, ideal for control panels, relay modules, and power switchgear. Available in multiple colors and lengths, it complies with BS EN, UL, and CSA standards, ensuring safety and durability. Invest in quality wiring that withstands environmental stresses and meets industry safety standards for efficient installation and maintenance.
Get Farnell Tri-Rated PVC Equipment Wire PP001226 today—built for high-temperature durability and flexible electrical connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP001226?
You can click on the BUY or RFQ button to purchase PP001226 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001226?
You can download the PP001226 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP001226?
MULTICOMP PRO
