MULTICOMP-PRO 2212S08SG85 Datasheet & Stock

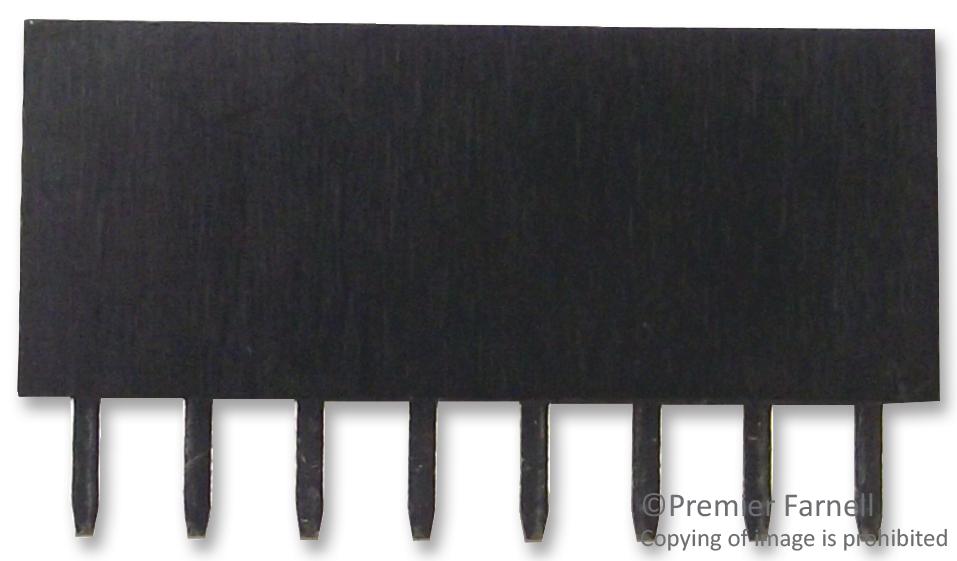

The 2212S series from Multicomp Pro features 2.54mm pitch, single-row PCB sockets with vertical mounting. These connectors are rated for 3A current and 250VAC/DC voltage. They operate within a temperature range of -40°C to 105°C. Made from copper alloy with selectively gold-plated contacts, they are available with 2 to 24 pins. The contacts have a maximum resistance of 20 milliohms, and the insulation resistance is at least 1000 megaohms. An 8.5mm height header option is also available. Suitable for industrial applications, these sockets are rated 4.6 out of 5 stars by customers with a 12-month limited warranty.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 2212S08SG85?
You can click on the BUY or RFQ button to purchase 2212S08SG85 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 2212S08SG85?
You can download the 2212S08SG85 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 2212S08SG85?
MULTICOMP-PRO
