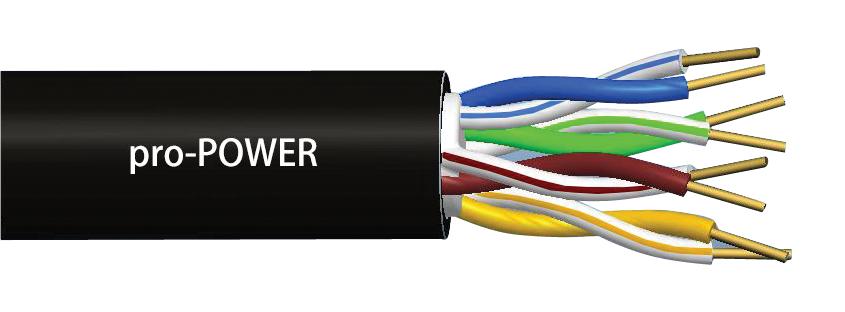

MULTICOMP PRO PP001511 Outdoor LAN Cable
This outdoor CAT 5E LAN cable is designed for high-speed data transmission in harsh environments. It features a solid 24AWG copper conductor, PE insulation, and a water-resistant flooding compound to ensure durability against moisture and UV exposure. The cable’s black PE sheath provides excellent sunlight resistance and protection for aerial or duct installations, supporting standards like IEEE 802.3 Ethernet variants and ATM protocols. Suitable for outdoor networks, it offers reliable performance in temperatures from -30°C to +70°C, making it ideal for robust, high-speed LAN infrastructure.
MULTICOMP PRO PP001511 Outdoor LAN Cable Specifications:
- Conductor Material: Plain Annealed Copper
- Conductor Size: 24AWG
- Insulation Material: PE
- Insulation Nominal Outer Diameter: 0.9mm
- Sheath Material: PE
- Sheath Nominal Outer Diameter: 6.3mm
- Sheath Color: Black
- Water Resistant Flooding Compound for Water Blocking
- Min. Bend Radius: 73mm
- Operating Temperature Range: -30°C to +70°C
- Max. Operating Voltage: 300V
- Max. DC Resistance at 20°C: 93.8Ω/km
- Max. DCR Unbalance at 20°C: 25%
- Voltage Test: 21.5kV AC/1min
- Max. Capacitance Pair to Pair: 5pF/m
- Velocity of Propagation: 70%
- Max. Delay Skew: 45 ns/100m
- Characteristic Impedance (1-100MHz): 100 +150Ω
- Max. Insertion Loss at 100MHz: 3.8 dB/100m
- Max. Near End Crosstalk (NEXT): 44 dB at 100MHz
Buy the Buy Multicomp Pro Outdoor LAN Cable Part Number PP001511 Online
Order the Multicomp Pro outdoor LAN cable PP001511 online today to ensure your network’s outdoor connectivity is robust and reliable. This high-quality CAT 5E cable features 24AWG copper conductors, PE insulation, and a water-resistant flooding compound that protects against moisture and UV exposure. Designed for duct and aerial installation, it supports high-speed Ethernet standards, including IEEE 802.3. With a durable black PE sheath, this cable performs reliably from -30°C to +70°C, providing a dependable solution for outdoor network infrastructure.
Buy Multicomp Pro outdoor LAN cable PP001511 now and experience reliable high-speed network performance with weatherproof durability for outdoor environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP001511?
You can click on the BUY or RFQ button to purchase PP001511 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001511?
You can download the PP001511 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP001511?
MULTICOMP PRO
