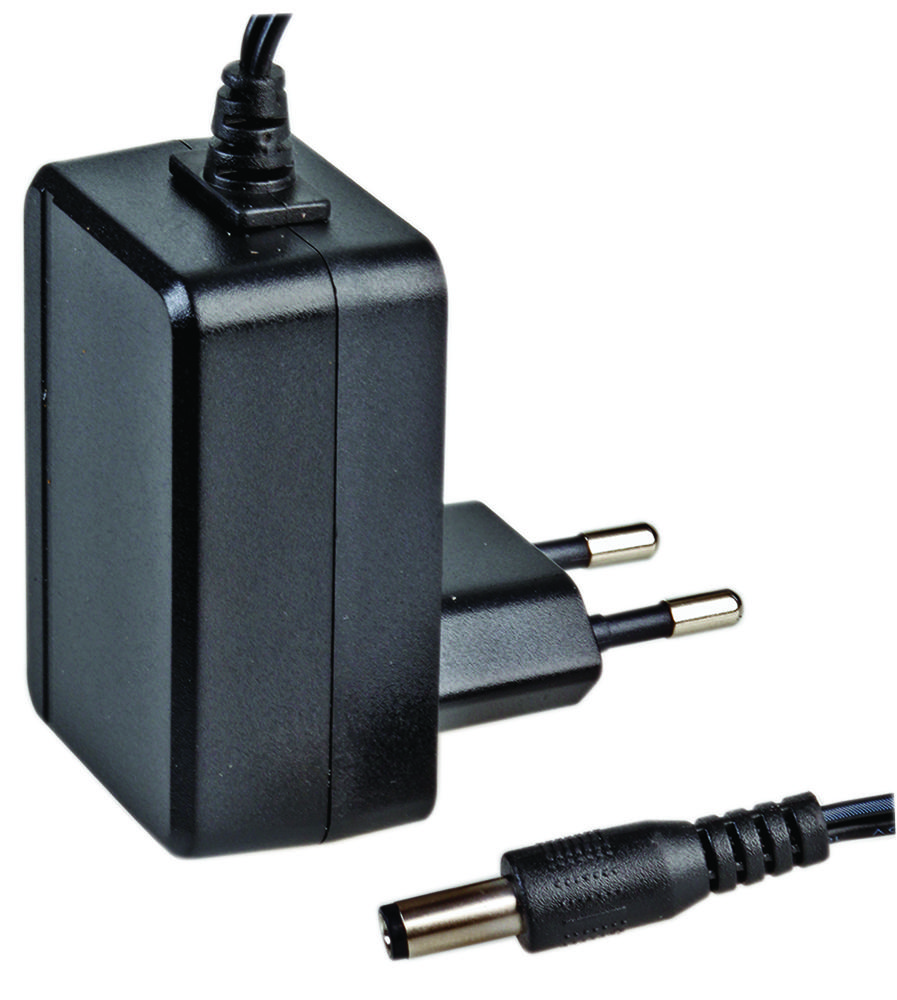

MULTICOMP PRO MP004758 Power Supply Adapter
The 15W EU Wall Plug Adapter is a compact, high-efficiency AC/DC power supply designed for general power applications. It provides a stable +5V DC output at 3A, making it suitable for various electronic devices requiring reliable power. Recognized for its Level VI efficiency and RoHS compliance, this switch-mode power supply features a European fixed AC head, a size of approximately 59mm x 40.9mm x 26.5mm, and weighs around 120 grams. It has safety features like over-current and short-circuit protection, and meets stringent safety and EMI standards for safe industrial and consumer use.
MULTICOMP PRO MP004758 Power Supply Adapter Specifications:
- Input Voltage Range: 90V AC to 264V AC
- Input Frequency Range: 47Hz to 63Hz
- Input Current Rated: 0.6A Max
- Output Voltage Rating: +5V
- Output Current Range: 3A
- Output Min Current: 0A
- Output Connection Type: 2.1mm x 5.5mm x 12mm Centre Positive — Straight
- Load Regulation: 45%
- Line Regulation: 41%
- Ripple & Noise: 200m Vp-p
- Efficiency: 81.39% Min
- Over Current Protection: Self-Recovery
- Short-Circuit Protection: No Damage
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +80°C
- Operating Humidity: 10% to 90%
- Storage Humidity: 5% to 95%
- Hi-Pot: 3000V AC 10mA 1min
- Leakage Current: GS/CE
- Safety Standard: Meets TUV-GS (EN60950-1)
- EMI Standard: EN55022, EN61000-3-2
- MTBF: 50K Hours
- Size: 59mm (L) x 40.9mm (W) x 26.5mm (H)
- Weight: 120g ±30%
- Regulator Type: Switched Mode Power Supply
Buy the Multicomp 15W EU Wall Plug Adapter – Reliable 5V Power Supply for Industrial Applications
Purchase the Multicomp 15W EU Wall Plug Adapter online for reliable 5V DC output delivering 3A current, compact design, high efficiency, and safety features. Ideal for industrial, commercial, or personal electronic applications requiring a stable power source. RoHS compliant and meeting all safety standards, this European plug-in power supply is easy to install and perfect for diverse power needs. Enjoy fast delivery, secure checkout, and quality assurance when you buy this versatile, high-performance adapter online today.
Get Multicomp 15W EU Wall Plug Adapter today—built for precision, efficiency, and long-lasting durability in electronic power solutions.
