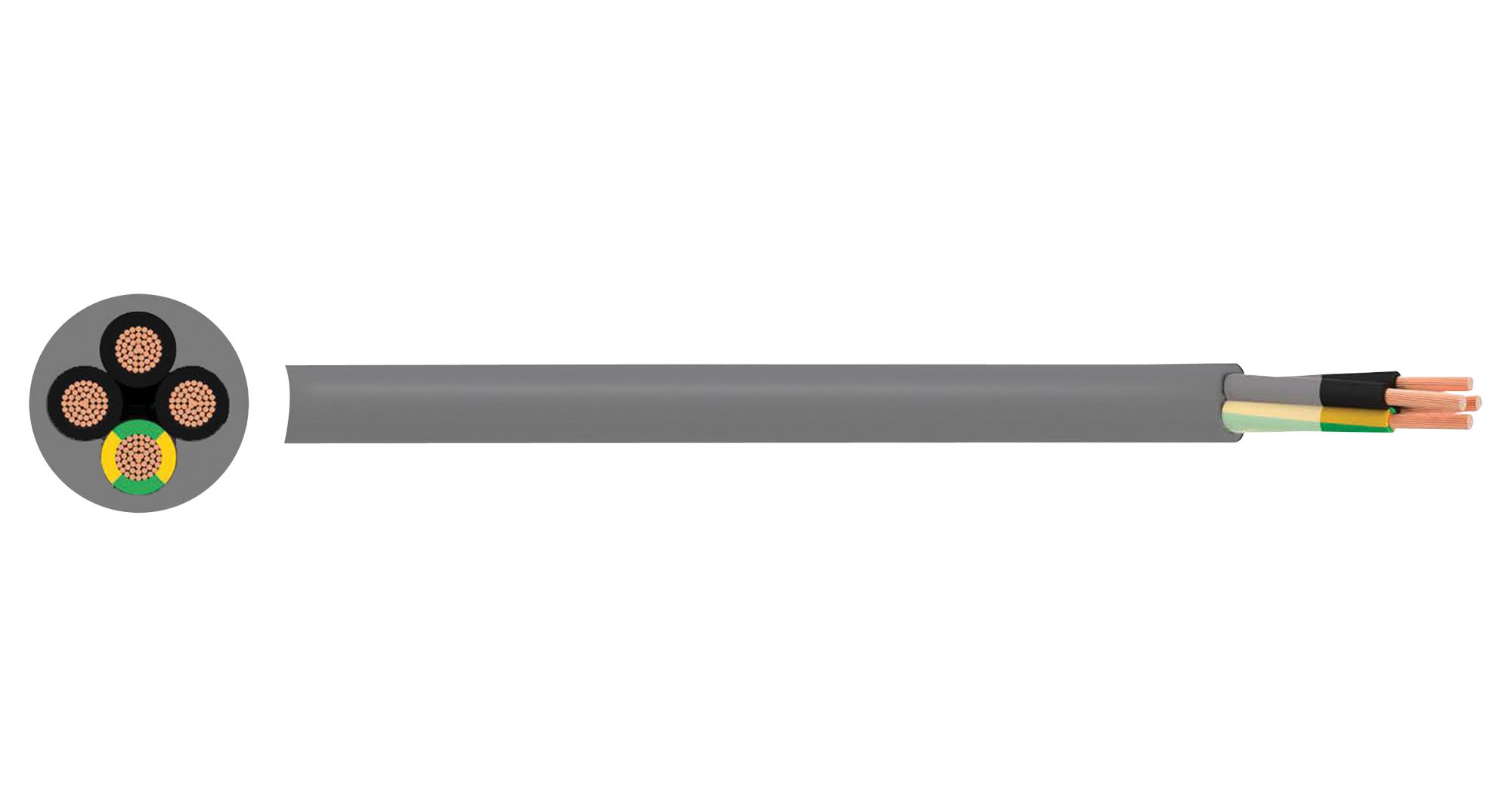

MULTICOMP-PRO PP001523 Multicore Power Cable
The multicomp polyurethane multicore cable is a flexible, RoHS-compliant power cable designed for industrial applications, machinery, and outdoor fixed installations. Featuring a PVC-insulated, Class 5 copper conductor with a PUR sheath, it offers high flexibility with excellent resistance to oil, chemicals, abrasion, and mechanical stress. Suitable for dry and wet environments, it meets VDE standards, with voltages up to 500V, test voltage of 2.4kV, and operates within -40°C to +80°C. Its robust construction ensures durability in demanding industrial and outdoor settings.
MULTICOMP-PRO PP001523 Multicore Power Cable Specifications:
- Voltage Rating: 300/500V
- Test Voltage: 2.4kV
- Temperature Rating: Fixed -40°C to +80°C, Flexed -5°C to +70°C
- Minimum Bending Radius: Fixed 4 x overall diameter, Flexed 10 x overall diameter
- Conductor: Class 5 flexible plain copper wires
- Insulation: PVC (Polyvinyl Chloride)
- Sheath: PUR (Polyurethane)
- Core Identification: Black with white number + Green/Yellow
- Sheath Colour: Grey
- Number of Cores and Cross-Sectional Area: 3 cores, 0.75 mm²; 3 cores, 1 mm²; 3 cores, 1.5 mm²; 4 cores, 0.75 mm²; 4 cores, 1 mm²; 4 cores, 1.5 mm²; 5 cores, 0.75 mm²; 5 cores, 1 mm²; 5 cores, 1.5 mm²; 7 cores, 0.75 mm²; 7 cores, 1.5 mm²; 12 cores, 0.75 mm²; 12 cores, 1.5 mm²; 18 cores, 0.75 mm²; 18 cores, 1.5 mm²
- Dimensions: Nominal Cross-Sectional Area ranging from 0.75 mm² to 25 mm², Overall Diameter varies by model
- Weight: Varies from 53 kg/km to 430 kg/km depending on configuration
- Construction: Harmonic copper conductor, PVC insulation, PUR sheath, non-woven polyester tape separator
- Standards and Approvals: VDE 0295, VDE 0293-334, VDE 0293-308, VDE 0285-525-1, VDE 0285-525-2-51, UKAS accredited testing, RoHS compliant
Buy the Premium Cable PP001523 – Reliable Power Cable for Industrial Applications
Enhance your industrial setup with our premium multicomp polyurethane multicore cable. Engineered for flexible power transmission, it complies with RoHS standards and meets rigorous VDE certifications. Its PVC insulation and PUR sheath ensure resistance to oil, chemicals, abrasion, and mechanical stress, making it ideal for machinery, outdoor fixed installations, and production lines. With a wide range of core configurations and high-temperature tolerance, this cable guarantees durability and reliability in demanding environments. Order online today for quick delivery and exceptional performance.
Buy multicomp polyurethane multicore cable now and experience unmatched durability, flexibility, and compliance in demanding industrial and outdoor environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP001523?
You can click on the BUY or RFQ button to purchase PP001523 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001523?
You can download the PP001523 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP001523?
MULTICOMP-PRO
