MULTICOMP-PRO PP001537 Flexible Screened Cable

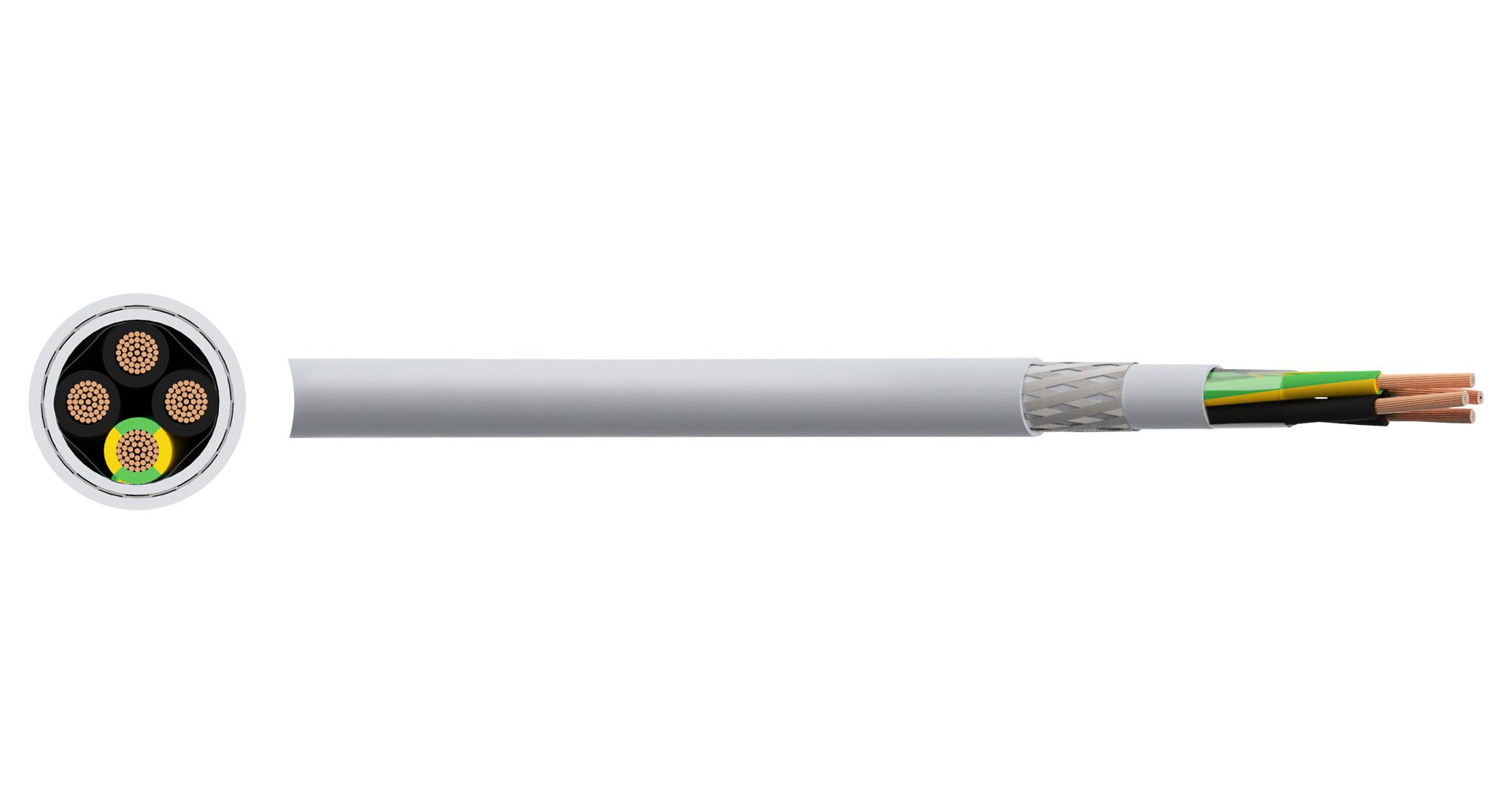

This flexible screened bedding cable is designed for mechanical engineering, instrumentation, and control equipment applications. Suitable for dry, moist, and wet rooms, it features LSZH insulation, a tinned copper wire braid screen, and a grey LSZH sheath for mechanical protection and external interference shielding. Rated at 300/500V with UL 94V-0 flame retardancy, low smoke, and halogen-free properties, it meets stringent safety standards for indoor use. The cable supports flexible applications with minimum bending radii of 6x overall diameter when fixed and 15x during movement, ensuring reliability in dynamic environments.
MULTICOMP-PRO PP001537 Flexible Screened Cable Specifications:
- Voltage Rating: 300/500V
- Test Voltage: 2kV
- Temperature Rating: Fixed -40°C to +80°C, Flexed -15°C to +70°C
- Minimum Bending Radius: Fixed 6 x overall diameter, Moved 15 x overall diameter
- Construction: Class 5 flexible plain copper conductors, LSZH insulation, LSZH sheath, tinned copper wire braid screen
- Flame Retardant: IEC 60332-3-24, IEC 60332-1-2
- Low Smoke Density: IEC 61034-2, IEC 60754-1/2
- Standards: VDE 0295, VDE 0207-303-7, VDE 0293-308, VDE 0285-525-2-51, VDE 0285-525-3-11, VDE 0482-332-1-2, VDE 0819-102
- Approvals: UK laboratory tested, UL, CSA compliant, RoHS, Low Voltage Directive 2014/35/EU, RoHS 2011/65/EU
- Core Identification: Black with white number, green/yellow for earth
- Dimensions vary by part number: e.g., diameter from 6.8 mm to 17 mm, weight per km from 77 kg to 569 kg
Buy the Buy Multicomp Pro Flexible Screened Bedded Cable Part Number PP001537 Online
Secure your wiring needs with Multicomp Pro flexible screened bedding cable, perfect for instrumentation, control, and mechanical engineering applications. Rated at 300/500V, it features LSZH insulation, low smoke, and halogen-free properties, ensuring safety compliance and environmental friendliness. Designed for flexible use, it supports minimum bending radii of 6x and 15x overall diameter during fixed and moved states, respectively. Its construction includes class 5 copper conductors, a tinned copper wire braid screen, and a grey LSZH sheath for mechanical and interference protection, suitable for indoor dry, moist, and wet room environments.
Get Multicomp Pro flexible screened bedding cable PP001537 today—engineered for durability, safety, and reliable control connections in demanding environments.
