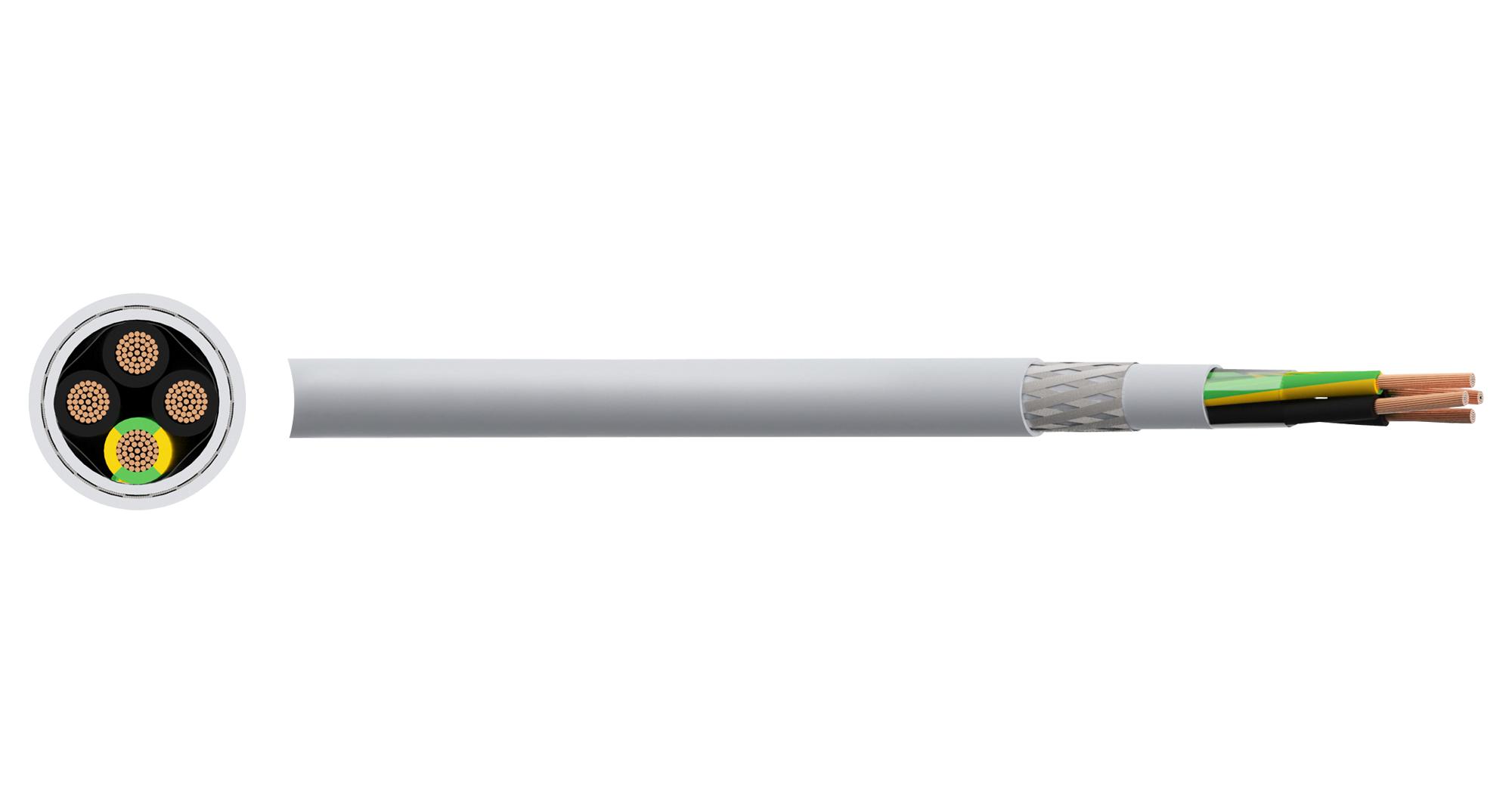

MULTICOMP-PRO PP001538 Multicore Control Cable
This flexible screened bedding cable is highly suitable for mechanical engineering, instrumentation, and control equipment. It features LSZH (Low Smoke Zero Halogen) insulation and sheath, ensuring safety in dry, moist, and wet environments. The cable includes a tinned copper wire braid screen to shield against external interference pulses and provide additional mechanical protection. Classified under various VDE standards, it is flame retardant, low smoke density, and RoHS compliant, making it ideal for flexible applications requiring electrical safety, durability, and compliance in industrial settings. Suitable for indoor use, not intended for outdoor or underground installation.
MULTICOMP-PRO PP001538 Multicore Control Cable Specifications:
- Voltage Rating: 300/500V
- Test Voltage: 2kV
- Temperature Rating: Fixed -40°C to +80°C, Flexed -15°C to +70°C
- Minimum Bending Radius: Fixed 6 x overall diameter, Moved 15 x overall diameter
- Conductor: Class 5 flexible plain copper wires
- Insulation & Sheath: LSZH (Low Smoke Zero Halogen)
- Screen: Tinned Copper Wire Braid
- Core Identification: Black with white number, Green/Yellow for additional cores
- Dimensions vary by model with cross-sectional areas from 0.5 mm² to 25 mm²
- Sheath Color: Grey
- Standards & Compliance: VDE 0295, IEC 60332-3-24, RoHS, UKAS accredited testing
Buy the Buy Multicomp LSZH Multicore Cable Part Number PP001538 Online
Order Multicomp LSZH Multicore Cable Part Number PP001538 online today for your industrial control, instrumentation, and mechanical engineering projects. These cables are engineered with Low Smoke Zero Halogen insulation and sheathing, providing safety and durability in indoor environments. They feature a tinned copper wire braid shield for external interference protection and mechanical bedding for added robustness. Suitable for flexible applications, they meet international standards including VDE and IEC certifications. Perfect for OEM, manufacturing, and automation systems, ensuring safety, compliance, and long-lasting performance in your electrical installations.
Get Multicomp LSZH Multicore Cable PP001538 today—designed for reliable industrial control and instrumentation wiring with enhanced mechanical and electrical protection.
