MULTICOMP-PRO PP001583 Multicore Control Cable

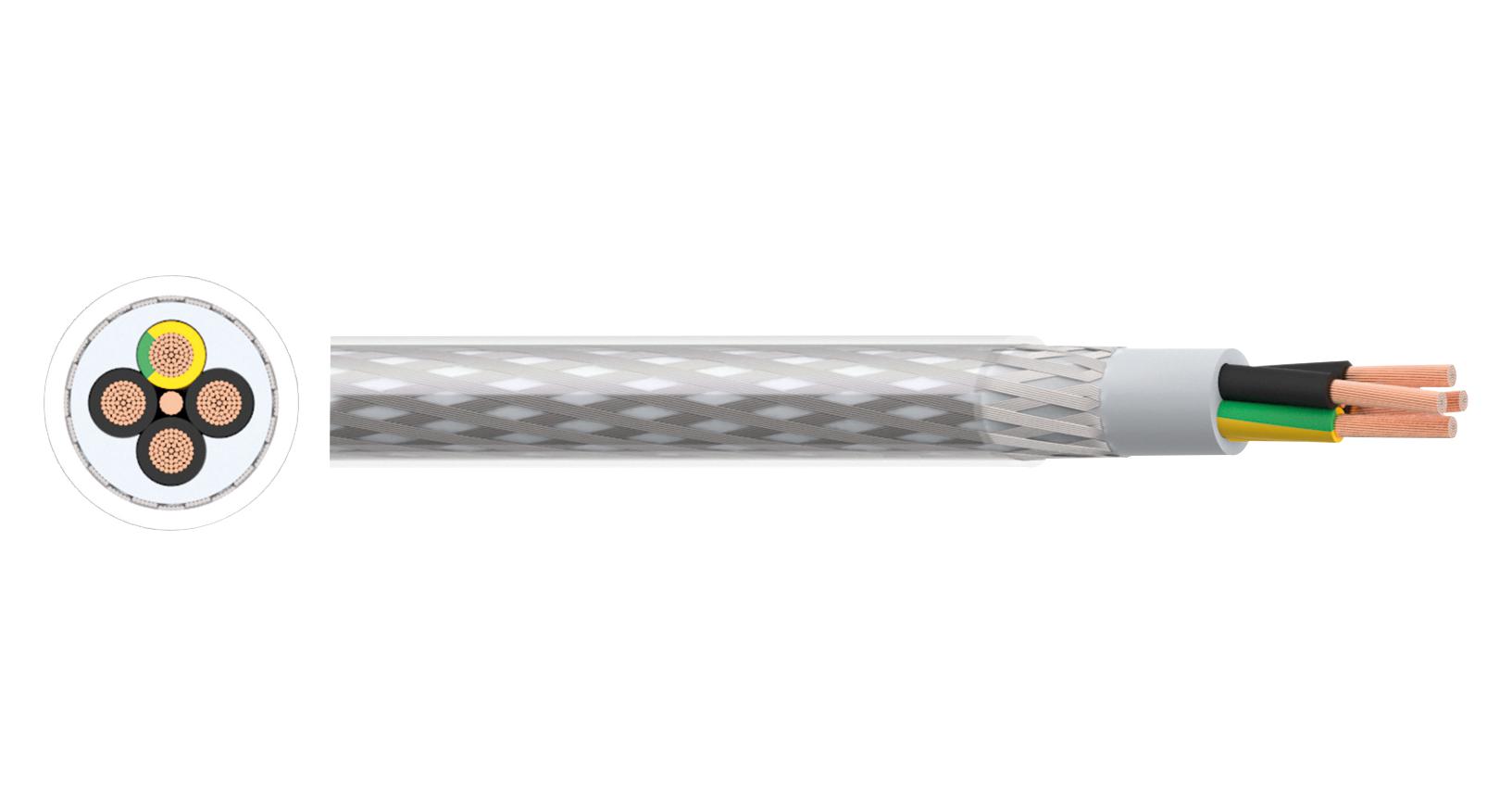

Flexible armoured control cable with multicore design, featuring PVC insulation and sheath, galvanized steel wire braid armor for mechanical protection and interference shielding. Suitable for instrumentation and control applications, these cables comply with RoHS and UL standards. Designed to operate in dry, moist, and wet environments with excellent flexibility, they offer a voltage rating of 300/500V, a test voltage of 2 4kV, and temperature ratings from -40°C to +80°C fixed and -5°C to +70°C flexed. The cables have a minimum bending radius of 4x overall diameter when fixed and 12.5x when flexed, ensuring durability in dynamic settings.
MULTICOMP-PRO PP001583 Multicore Control Cable Specifications:
- Voltage Rating: 300/500V
- Test Voltage: 2 4kV
- Temperature Rating: Fixed: -40°C to +80°C; Flexed: -5°C to +70°C
- Minimum Bending Radius: Fixed: 4 x overall diameter; Flexed: 12.5 x overall diameter
- Conductor Material: Class 5 flexible plain copper wires
- Insulation & Sheath Material: PVC (Polyvinyl Chloride)
- Armour: GSWB (Galvanised Steel Wire Braid)
- Core identification: Black with white number, green/yellow for active cores
- Standards: VDE 0207-363-3, IEC 60332-1-2 flame retardant, UK Laboratory tested
- Regulatory Compliance: RoHS 2011/65/EU, Low Voltage Directive 2014/35/EU
Buy the Flexible Control Cable Series YSLYSY: PP001583
Order the versatile multicore control cable with steel wire braid armor online today. Designed for instrumentation and flexible machinery applications, this cable provides reliable electrical performance, protection against mechanical stress, and resistance to interference. Its PVC insulation and sheath ensure durability in wet, moist, and dry conditions while meeting RoHS, UL, and flame retardant standards. Perfect for installation in dynamic environments, it offers an optimal balance of flexibility and robustness, ensuring long-term operational stability and safety in your control systems.
Get Flexible Control Cable Series YSLYSY PP001583 today—built for strength, flexibility, and interference protection in demanding environments.
