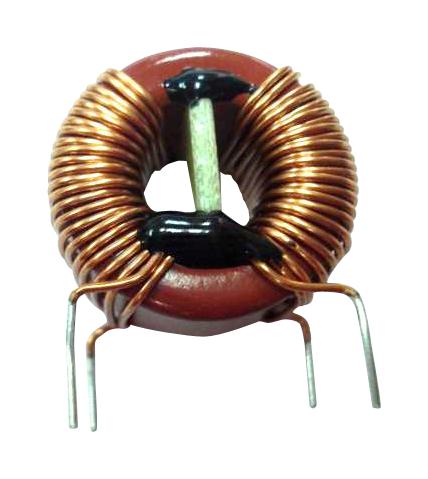

MULTICOMP PRO MCT25X15X15C502NU Common Mode Choke
This is a high-performance common mode choke designed for filtering and noise suppression in electronic circuits. With a 5mH inductance and 6A current rating, it ensures reliable operation within temperature ranges from -25°C to +85°C. Constructed with a core material of A07 T18 x 10 x 10C and lead-free solder, it features low DCR values, verified through strict testing. The compact PCB-compatible design makes it suitable for various industrial and consumer electronics applications, providing effective electromagnetic interference (EMI) suppression and circuit stability.
MULTICOMP PRO MCT25X15X15C502NU Common Mode Choke Specifications:
- Inductance: 5mH typical with a tolerance of +30%
- Current Rating: 6A
- DCR (1-4): 35.6Ω (max.)
- DCR (2-3): 35.63Ω (max.)
- Operating Temperature Range: -25°C to +85°C
- Material: Core A07 T18 x 10 x 10C (Red), Wire UEFN/U (155°C)
- Solder: Lead-free Sn99.3% / Cu0.7%
- Soldering Temperature: 260 +5°C, Dip time 15 +0/-0.5s
- Humidity Storage: Below 70% RH, conforming to J-STD-020B level 3
- Mechanical Dimensions: Max length 28.46mm, Max width 18.7mm, Max height 8.42mm
- Test Voltage: 1,500V AC coil-to-coil, 4,500V AC for insulation tests
- RoHS Compliant
Buy the Multicomp Common Mode Choke – Reliable Noise Filter for Industrial Applications
Purchase the Multicomp Series common mode choke today to enhance noise filtering and circuit stability. Perfect for industrial, automation, and electronics applications, this 5mH choke rated at 6A offers low DCR, compact design, and complies with RoHS standards. Its reliable performance is validated by rigorous testing, including high voltage and humidity resistance. Order online now and get fast delivery to improve your circuit design efficiency with this essential electromagnetic interference suppression component.
Order your Multicomp Series MCT25X15X15C-502NU common mode choke today and ensure robust noise suppression for your industrial electronics projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCT25X15X15C502NU?
You can click on the BUY or RFQ button to purchase MCT25X15X15C502NU from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCT25X15X15C502NU?
You can download the MCT25X15X15C502NU datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCT25X15X15C502NU?
MULTICOMP PRO
