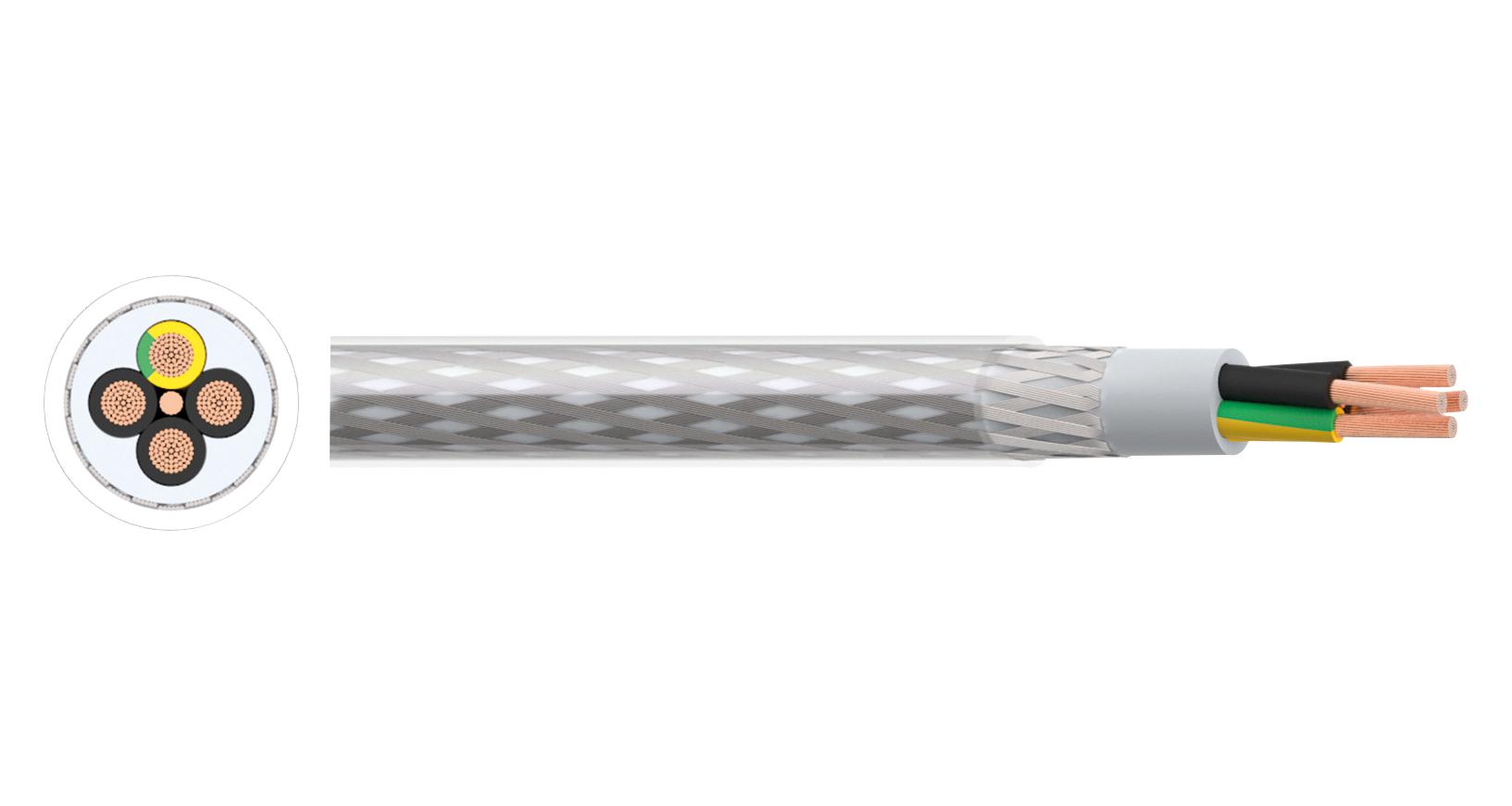

MULTICOMP-PRO PP001608 Multicore Control Cable
Flexible armoured control cable with multicore construction, featuring PVC insulation and sheathing, galvanised steel wire braid armour, and color-coded cores suitable for flexible machinery and instrumentation applications. Designed for dry, moist, and wet indoor environments, it offers excellent mechanical protection against traverse loads and interference shielding, with compliance to RoHS, IEC flame retardant, and UK laboratory tested standards. Rated for 300/500V, operable from -40°C to +80°C, perfect for flexible control and instrumentation wiring in industrial settings.
MULTICOMP-PRO PP001608 Multicore Control Cable Specifications:
- Voltage Rating: 300/500V
- Test Voltage: 2 4kV
- Temperature Rating: Fixed -40°C to +80°C, Flexed -5°C to +70°C
- Minimum Bending Radius: Fixed 4 x overall diameter, Flexed 12.5 x overall diameter
- Construction: Conductors Class 5 flexible plain copper wires, Insulation PVC, Inner Sheath PVC, Armour GSWB (Galvanised Steel Wire Braid), Sheath PVC
- Core Identification: Black with white number, Green/Yellow for certain cores
- Standards: VDE 0207-363-3, IEC 60332-1-2 flame retardant, UKAS tested, RoHS compliant
- Cable Dimensions: Varies by part number, ranging from 7.2 kg/km to 525 kg/km in weight
- Physical Dimensions: Nominal overall diameter between approximately 7.2 mm to 16.8 mm, lengths typically 50m
- Conductors: Copper, flexible class 5
- Maximum Resistance: Approx. 19.5 mΩ at 20°C for 1 mm² cable
- Application: Indoor control panel wiring, machinery, instrumentation, flexible mechanical loading uses
Buy the Buy Multicomp Control Cable Part Number PP001608 Online
Enhance your industrial wiring solutions by purchasing the Multicomp Series Control Cable PP001608 online. Designed with PVC insulation and steel braid armor, this versatile bulk cable offers superior flexibility, mechanical protection, and interference shielding. It supports indoor control, instrumentation, and machinery wiring with a 300/500V rating, operating efficiently from -40°C to +80°C. Its precise construction ensures high-quality connection reliability, easy installation, and compliance with RoHS, IEC flame retardant standards, and UKAS testing. Purchase online now for fast delivery and premium quality control wiring for your projects.
Order your Multicomp Series control cable PP001608 today and ensure reliable, flexible wiring for your industrial control projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP001608?
You can click on the BUY or RFQ button to purchase PP001608 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001608?
You can download the PP001608 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP001608?
MULTICOMP-PRO
