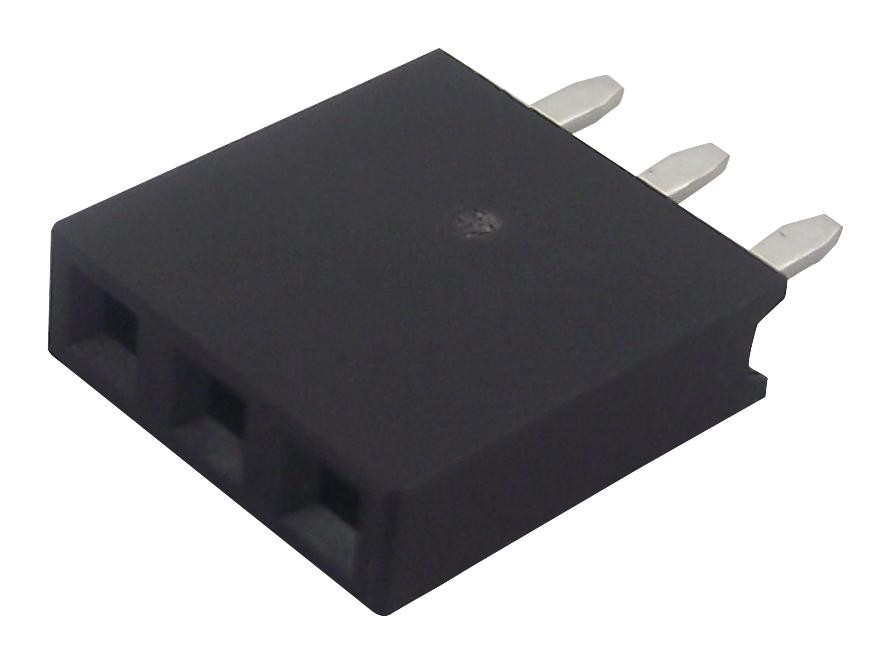

MULTICOMP PRO 2212S03SG85 PCB Socket
The 2212S-03SG-85 is a 3-way, single-row PCB straight socket featuring a black PBT insulator and selectively gold-plated copper alloy contacts. It has a 2.54mm pitch, a current rating of 3A at DC, and a voltage rating of 250VAC/DC. The socket offers a maximum contact resistance of 20 milliohms and a minimum insulation resistance of 1000 megaohms. Designed for industrial applications, this component provides reliable electrical connection with durable materials, suitable for various electronic assemblies.
MULTICOMP PRO 2212S03SG85 PCB Socket Specifications:
- Pitch: 2.54mm
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: Max. 20mΩ
- Insulation Resistance: Min. 1000MΩ
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature: -40°C to +105°C
- Insulator Material: PBT
- Contact Material: Copper alloy
- Finish: Selective gold plated
- Height: 8.5mm
- Number of Contacts: 3
- Dimensions (approximate): Length: 8.12mm, Width: 5.08mm
- RoHS Compliant
Buy the Multicomp Series 3-Way 2.54mm PCB Socket: 2212S03SG85
Enhance your electronic assemblies with the reliable 2212S-03SG-85 PCB socket, featuring a durable PBT insulator and gold-plated contacts for excellent conductivity and corrosion resistance. With a compact 2.54mm pitch, rated for 3A at 250V, and withstanding voltages of 600V AC, this socket offers excellent electrical performance. Its robust construction ensures long-term durability in industrial environments. Perfect for applications requiring stable, secure connections, order online now to upgrade your project with a trusted, high-quality component that delivers connection stability and ease of installation.
Order your Multicomp Series 3-Way 2.54mm PCB Socket 2212S-03SG-85 today and ensure the safe, reliable electrical connections your projects need.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2212S03SG85?
You can click on the BUY or RFQ button to purchase 2212S03SG85 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2212S03SG85?
You can download the 2212S03SG85 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2212S03SG85?
MULTICOMP PRO
