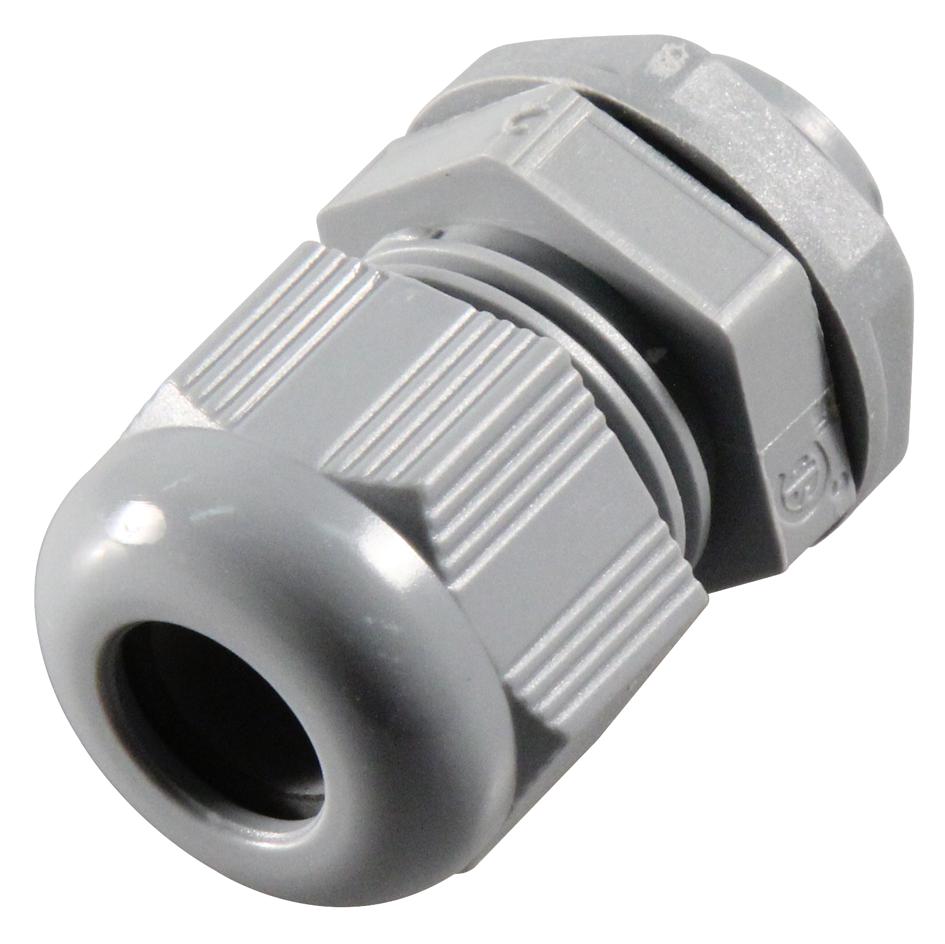

MULTICOMP PRO PP001678 Nylon Cable Gland
These nylon cable glands provide reliable sealing and strain relief for electrical cables in industrial and commercial applications. Made from durable PA (Nylon) with UL 94 V-2 flammability rating, they feature hermetic NBR seals and EPDM O-Rings for excellent protection against dust, moisture, and other environmental factors. With an IP68/IP69K rating, these glands operate effectively in harsh conditions, supporting static temperatures from -40°C to 100°C and dynamic ranges from -20°C to 80°C. Available in multiple sizes and colors, they ensure secure cable entry and mechanical stability.
MULTICOMP PRO PP001678 Nylon Cable Gland Specifications:
- Material: PA (Nylon), UL 94 V-2
- Hermetic Seal: NBR
- O-Ring: EPDM
- Protection Degree: IP68/IP69K
- Working Temperature: -40°C to 100°C in static state, -20°C to 80°C in dynamic state
- Heat Resistance: Instantaneous up to 120°C
- Colors: Black, Grey, White
- Thread Sizes: M12 x 1.5, M16 x 1.5, M20 x 1.5, M25 x 1.5, M32 x 1.5
- Dimensions vary per size, e.g., M12: 3-6.5mm, M16: 4-8mm, M20: 6-12mm, M25: 13-18mm, M32: 18-25mm
- Sealing: Lock nut, body seal, sealing nut included
Buy the Buy Multicomp Nylon Cable Glands Part Number PP001678 Online
Secure your electrical connections quickly and reliably with the durable nylon cable glands from Multicomp. Designed for harsh environments, these glands feature high IP ratings and temperature tolerance, ensuring a sealed and stable cable entry point. Made from robust PA material with hermetic NBR seals and EPDM O-Rings, they prevent dust, water, and environmental contamination. Available in multiple sizes and colors, these cable glands support both static and dynamic applications, providing long-lasting protection and mechanical stability for professional electrical installations.
Order your Multicomp series PP001678 nylon cable gland today and secure your electrical cables with durable, waterproof protection for industrial environments.
