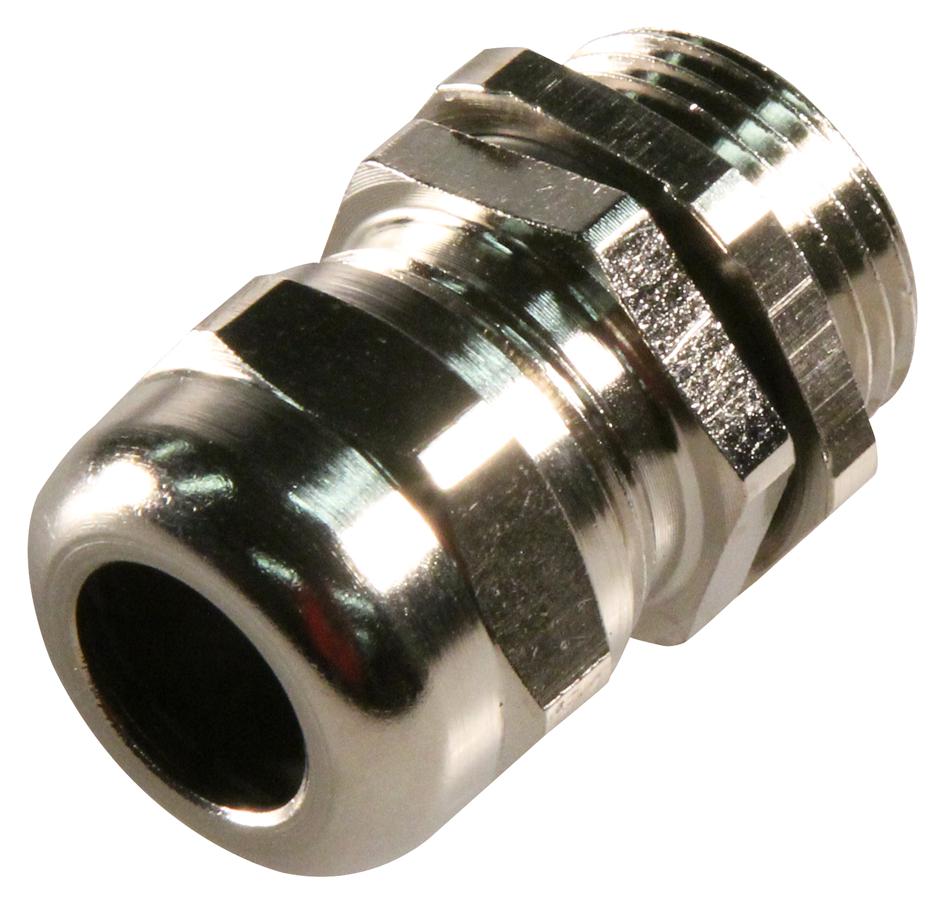

MULTICOMP-PRO PP001685 Metal Cable Glands
Metal cable glands provide reliable and secure enclosure sealing for electrical wiring in industrial applications. Made from nickel-plated brass with nylon, NBR, and EPDM components, these glands support IP68 protection against dust and water ingress. Designed for M20 threads, they operate in temperatures ranging from -40°C to 100°C, with heat resistance up to 120°C. Suitable for outdoor and demanding environments, they ensure a robust connection with features like O-rings, locking nuts, and hermetic seals for safety and durability.
MULTICOMP-PRO PP001685 Metal Cable Glands Specifications:
- Material: Nickel-plated brass
- Fixture Pack: Included
- Hermetic Seal: Yes
- O-Ring: EPDM, NBR
- Protection Degree: IP68
- Working Temperature: -40°C to 100°C
- Heat Resistance: Up to 120°C
- Thread Sizes: M12 x 1.5, M16 x 1.5, M20 x 1.5, M25 x 1.5, M32 x 1.5
- Dimensions: Varies by model, e.g., M20 x 1.5 thread, 23 mm length, 6 mm core diameter, 22 mm outside diameter
- Certifications: RoHS Compliant
- Sealing Nut: Seals with O-ring
- Claw, Lock Nut: Included
Buy the Multicomp Series Metal Cable Glands: PP001685
Order Multicomp Series metal cable glands online today for reliable, IP68 rated sealing solutions suitable for industrial environments. Crafted from nickel-plated brass with durable sealing rings, these glands support various thread sizes including M12, M16, M20, M25, and M32, ensuring flexibility and secure fitment. They operate safely between -40°C and 100°C, with heat resistance up to 120°C, making them ideal for outdoor and harsh conditions. Protect your electrical wiring with these high-quality, easy-to-install cable glands from top supplier.
Get Multicomp Series M20 Metal Cable Glands today—designed for secure electrical connections in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP001685?
You can click on the BUY or RFQ button to purchase PP001685 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001685?
You can download the PP001685 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP001685?
MULTICOMP-PRO
