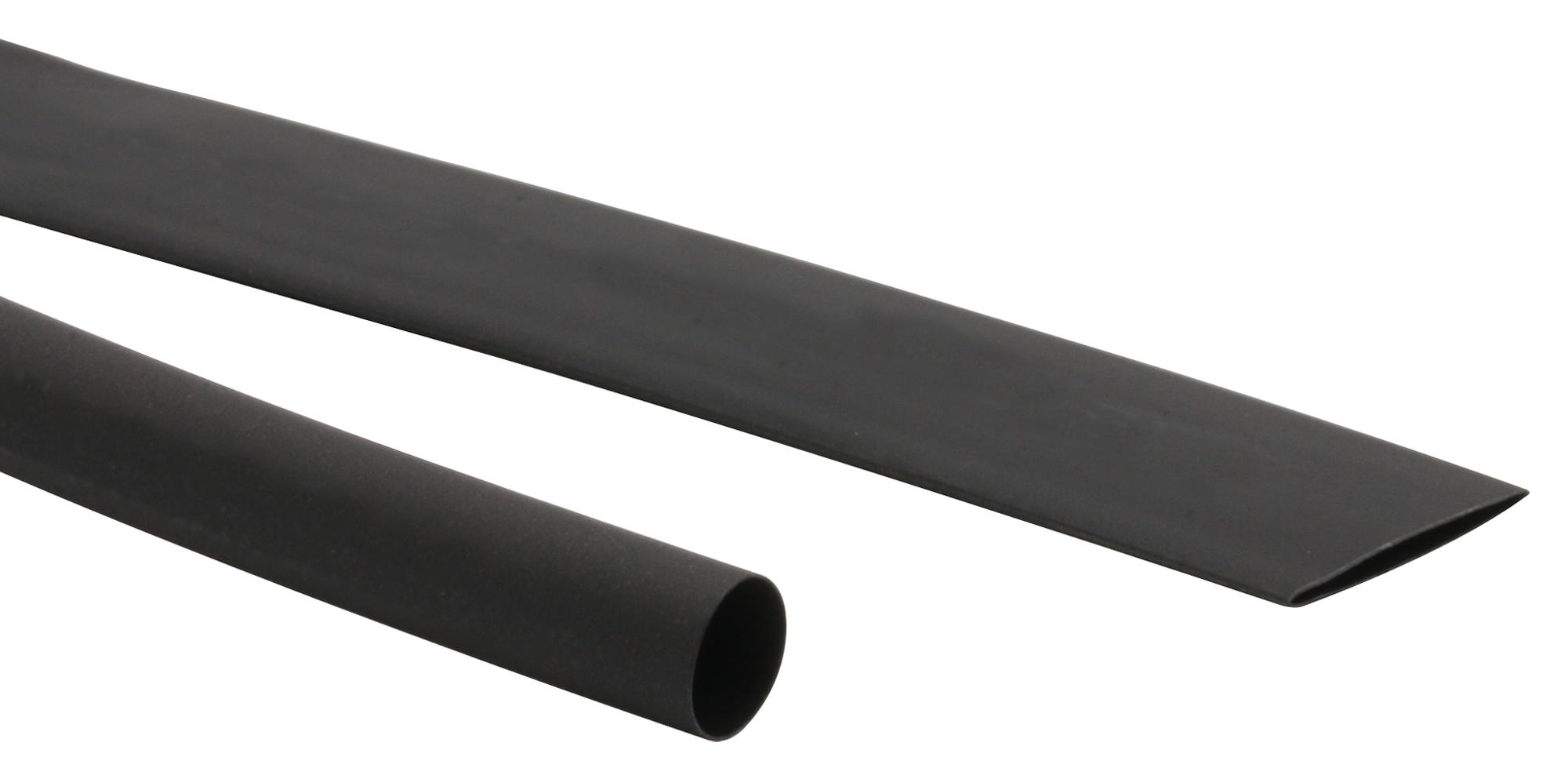

MULTICOMP PRO PP001892 Heat Shrink Tubing
The heat shrink thin wall tubing is flexible, halogen-free, and made from polyolefin, offering rapid shrinking and space-saving installation. It operates from -55°C to +125°C and has a low minimum shrink temperature of 270°C, ensuring quick application with minimal risk of damage to temperature-sensitive components. This product features a 2:1 shrink ratio, meets environmental standards including RoHS and Sony-SS-00259, and provides excellent electrical and mechanical properties such as high dielectric strength, volume resistivity, and resistance to heat aging. Its ultra-thin wall design makes it suitable for tight spaces and delicate wiring.
MULTICOMP PRO PP001892 Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +125°C
- Minimum Shrink Temperature: 270°C
- Full Recovery Temperature: 125°C
- Shrink Ratio: 2:1
- Color: Black
- Tensile Strength: 210.4 MPa
- Ultimate Elongation: 2200%
- Longitudinal Shrinkage: 45%
- Dielectric Strength: 215 kV/mm
- Volume Resistivity: 21x10^16 Ω·cm
- Heat Aging Tensile Strength: 27.3 MPa at 158°C for 168 hours
- Heat Shock Resistance: 250°C for 4 hours without cracking or dripping
- Flammability: FMVSS302 Pass
- Copper Stability & Corrosion: Meets UL224, no corrosion
- Part Diameter After Recovery: 40.2 mm (for 1/16 inch, 1.6 mm), up to 40.5 mm (for 1 inch, 25.4 mm)
- Wall Thickness After Recovery: approximately 0.20 mm to 0.45 mm depending on size
- Product Length: up to 100 meters as supplied, 50 meters for larger sizes
Buy the Farnell PP001892 – Reliable Heat Shrink for Industrial Applications
Purchase Farnell heat shrink tubing online today—designed for rapid shrinking and space-saving installations. Made of halogen-free polyolefin, this ultra-thin wall tubing offers excellent electrical insulation, high dielectric strength, and outstanding heat and aging resistance. Suitable for delicate wiring and tight spaces, meeting RoHS and Sony standards, ensuring safety and environmental compliance. Available in various sizes up to 100 meters, it provides reliable performance for electrical and electronic projects, ensuring long-lasting durability and protection for your components. Buy now for quality you can trust.
Get Farnell PP001892 today—built for precision, durability, and optimal electrical insulation in tight spaces.
