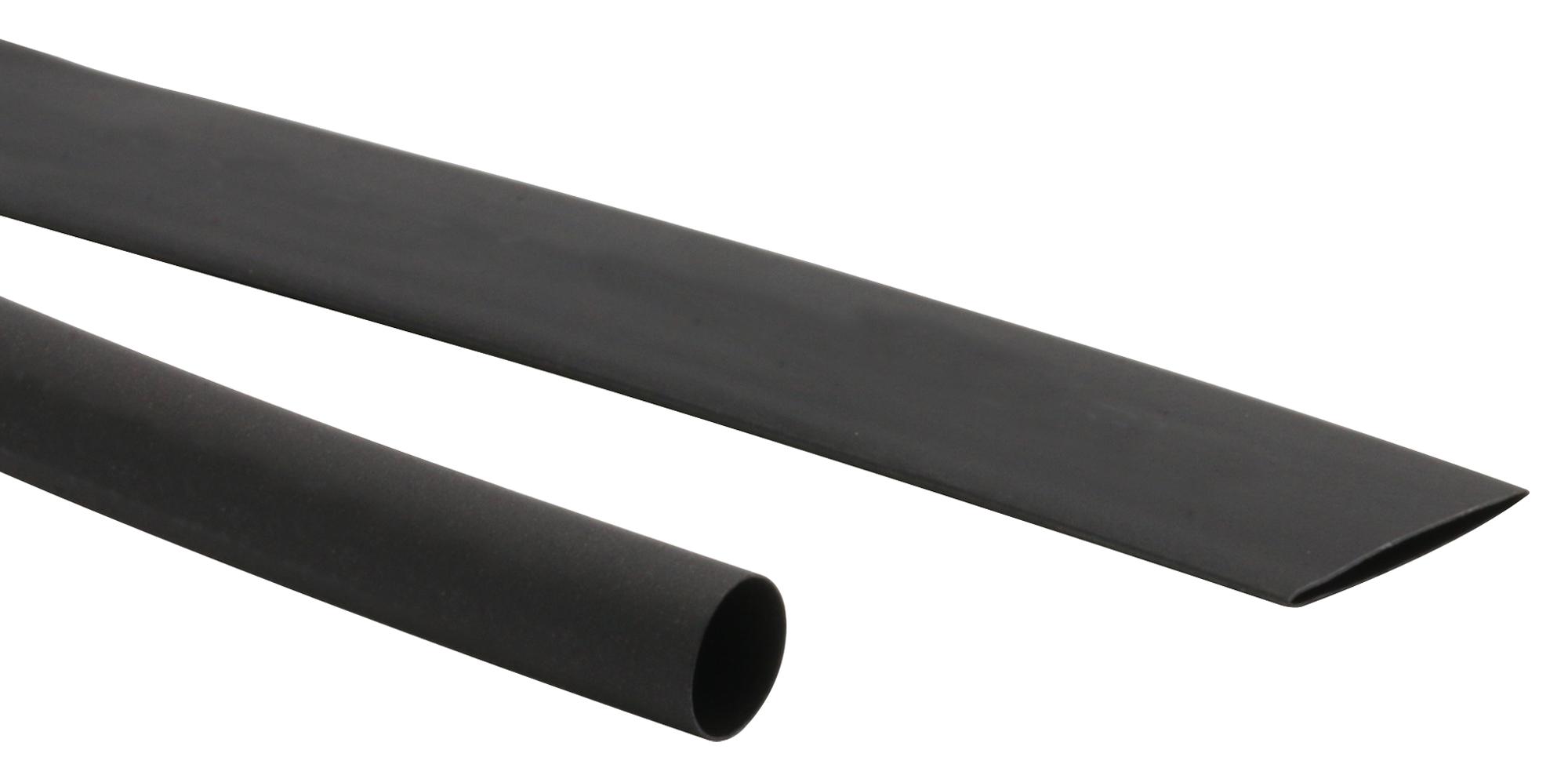

MULTICOMP-PRO PP001895 Heat Shrink Tubing
Pro-Power ultra-thin wall heat shrink tubing is flexible, halogen-free, and made from polyolefin, designed for rapid shrinking and space-saving applications. Its low shrinks temperature reduces installation time and minimizes damage risk to temperature-sensitive components. Meeting environmental standards like RoHS and Sony-SS-00259, it offers excellent electrical insulation, high tensile strength of 210.4 MPa, and elongation up to 2200%. It withstands heat aging, heat shocks, and complies with flammability standards, making it ideal for electrical and electronic insulation in diverse industrial settings. Available in various sizes, it ensures durability and reliable performance under demanding conditions.
MULTICOMP-PRO PP001895 Heat Shrink Tubing Specifications:
- Operating Temperature: 1-55°C to +125°C
- Minimum Shrink Temperature: 270°C
- Full recovery temperature: 125°C
- Shrink Ratio: 2:1
- Colour: Black
- Tensile Strength: 210.4 MPa
- Ultimate Elongation: 2200%
- Heat Aging Tensile Strength: 27.3 MPa at 158°C for 168 hours
- Dielectric Strength: 215 kV/mm
- Volume Resistivity: 21 x 10^10 Ω-cm
- Flammability: FMVSS302 Pass
- Copper Stability and Corrosion: Pass (UL224)
- Product Dimensions (for size 1.6 mm): Internal diameter: 1.4 mm, Wall thickness: 0.20 mm
- Size Range: from 1.6 mm to 50.8 mm internal diameter
- Available in 5m or 50m lengths depending on size
Buy the Farnell Series Thin Wall Heat Shrink Tubing: PP001895
Discover high-quality, flexible, halogen-free polyolefin heat shrink tubing designed for fast shrinking and reliable electrical insulation. Perfectly suited for space-constrained or sensitive environments, this tubing offers excellent durability, high tensile strength, and environmental compliance. Available in multiple sizes with easy online ordering, it reduces installation time and enhances safety with superior flame resistance and thermal stability. Purchase now for dependable insulation solutions that meet industrial standards and ensure long-lasting performance in your electrical projects.
Get Farnell PP001895 thin wall heat shrink tubing today—built for durability and rapid installation in electronic and electrical applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP001895?
You can click on the BUY or RFQ button to purchase PP001895 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001895?
You can download the PP001895 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP001895?
MULTICOMP-PRO
