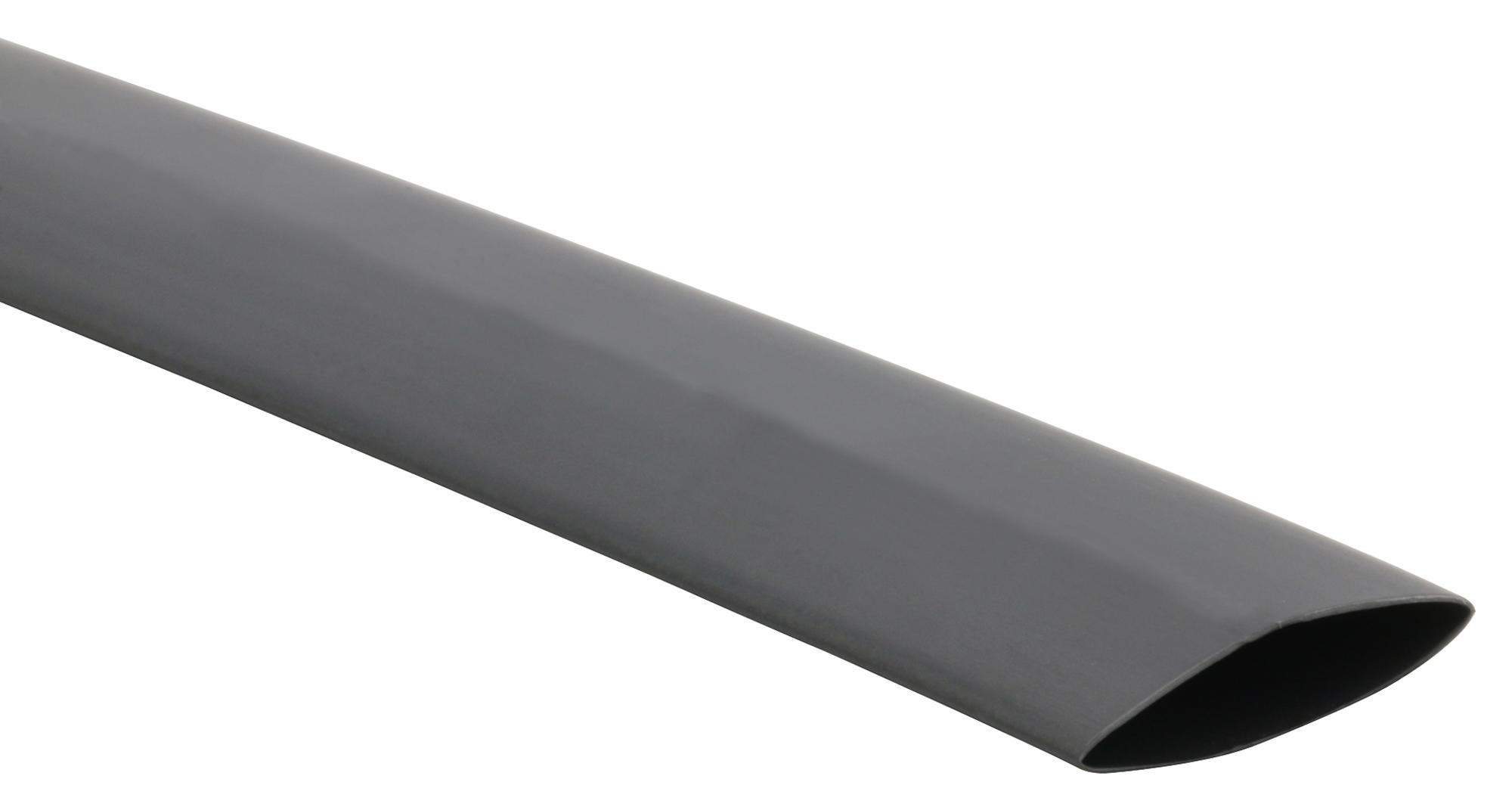

MULTICOMP PRO PP001931 Heat Shrink Tubing
Environmentally friendly, flexible, and highly flame-retardant heat shrink tubing made from polyolefin, suitable for electrical insulation in industrial, military, and electronic applications. It offers excellent resilience, high tensile strength, and a maximum shrink ratio of 2:1, providing effective protection for inline components, connectors, and splices. With operating temperatures from -55°C to +135°C, it complies with UL224 VW-1, RoHS, and AMS-DTL-23053/5 standards. Available in various sizes with natural or black colors for easy identification and color-coding in complex wiring systems.
MULTICOMP PRO PP001931 Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +135°C
- Min. Shrink Temperature: 70°C
- Min. Full Recovery Temperature: 120°C
- Shrink Ratio: 2:1
- Colors: Black and Natural
- Tensile Strength: 210.4MPa
- Elongation: 2200%
- Dielectric Strength: 215kV/mm
- Volume Resistivity: 2.1x10^4 Q-cm
- UL Approval: UL224 VW-1, 125°C 600V
- Material: Polyolefin
- Application: Insulation, wire identification, harness bundling, splice protection
- Approvals: UL, RoHS Compliant, AMS DTL-23053/5
- Dimensions: Internal diameter from 1.5mm (240.2 inch) to 18mm (40.5 inch), Wall thickness from 0.36mm to 0.7mm
- Resistance to common fluids and solvents, heat aging, and mechanical stress
Buy the DrO-POWER Heat Shrink Tubing – Reliable Insulation for Industrial Applications
Order DrO-POWER heat shrink tubing online now for dependable insulation solutions that withstand extreme temperatures, resist chemicals, and offer easy identification. Perfect for industrial, military, and electronic applications, this flexible polyolefin tubing provides a 2:1 shrink ratio, ensuring reliable protection for wires, connectors, and splices. Available in various sizes, colors, and length options, it meets UL standards and RoHS compliance, making it the optimal choice for demanding environments where durability and safety are paramount. Buy today for fast delivery and superior performance.
Get DrO-POWER heat shrink tubing today—built for durability and versatile electrical insulation in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP001931?
You can click on the BUY or RFQ button to purchase PP001931 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001931?
You can download the PP001931 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP001931?
MULTICOMP PRO
