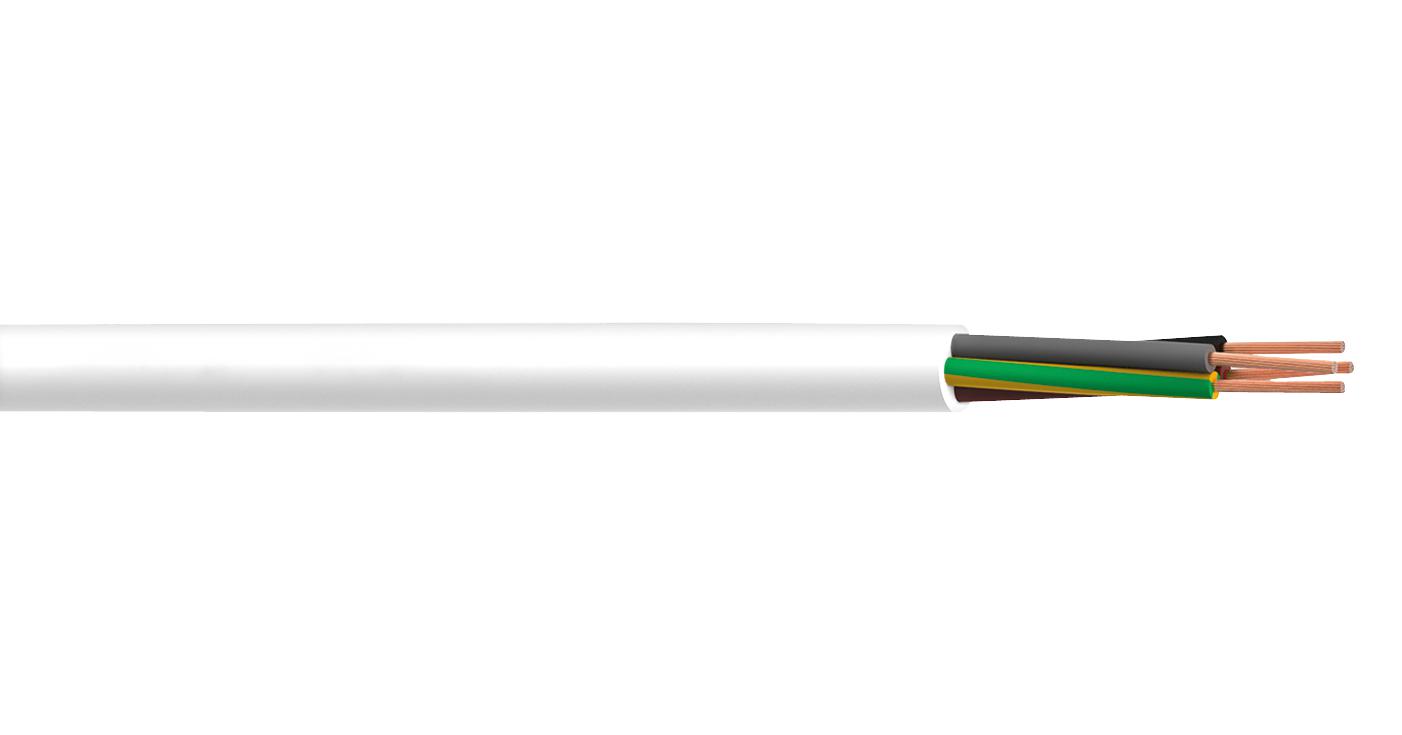

MULTICOMP-PRO PP002156 Flexible Cable
Flexible multicomp cable suitable for internal wiring in high-temperature zones like lighting applications. RoHS compliant, with PVC insulation and sheath, available in 100m reels or per metre. Conductor class 5 copper with various core and cross-sectional options, rated for 300/500V, operating between -55°C to +90°C. Designed to meet BS EN 50525-2-11 and IEC standards, it features flexible construction with blue, brown, green/yellow, black, and grey color coding. Ideal for industrial, electrical, and automation wiring requiring durability and flexibility.
MULTICOMP-PRO PP002156 Flexible Cable Specifications:
- Voltage Rating: 300/500V
- Temperature Rating: -55°C to +90°C
- Minimum Bending Radius: Fixed: 6 x overall diameter, Flexed: 10 x overall diameter
- Construction: Class 5 flexible copper conductor, PVC Type TI3 insulation, PVC Type TM3 sheath
- Core Colors: 2 core: Blue & Brown, 3 core: Green/Yellow, Blue & Brown, 4 core: Green/Yellow, Brown, Black & Grey
- Nominal Cross-Sectional Area: 0.75mm², 1mm², 1.5mm², 2.5mm²
- Dimensions: Sheath Diameter varies from 6.3mm to 9.7mm depending on core count and size
- Weight: 63 kg/km to 170 kg/km depending on size
- Standards: BS EN 50525-2-11, BS EN/IEC 60332-1-2
- Conductor: Copper, Class 5 according to BS EN 60228
- Selectable Length: 100m reels or per metre
Buy the Buy multicomp Flexible Cable Part Number PP002156 Online
Discover the high-quality flexible cable from multicomp, designed for versatile electrical wiring in high-temperature zones. RoHS compliant with PVC insulation and sheath, available in various core sizes from 0.75mm² to 2.5mm², rated for 300/500V, operating between -55°C and +90°C. Ideal for industrial, lighting, and automation applications, it ensures durability, flexibility, and compliance with international standards. Purchase online in reels of 100m or per metre for convenient, reliable electrical wiring solutions.
Buy multicomp Flexible Cable PP002156 now and experience unmatched flexibility and reliable electrical wiring for industrial and lighting applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002156?
You can click on the BUY or RFQ button to purchase PP002156 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002156?
You can download the PP002156 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002156?
MULTICOMP-PRO
