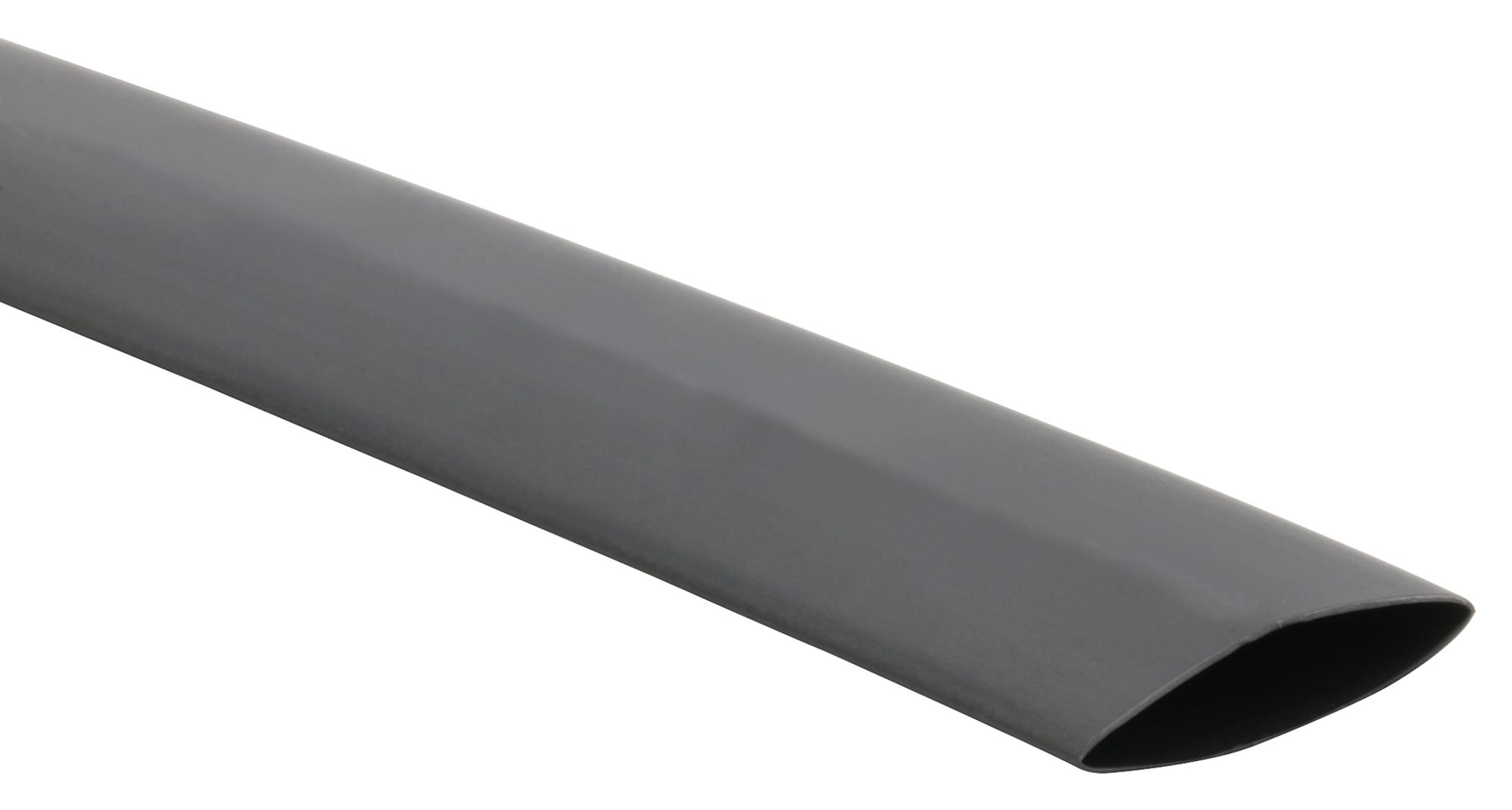

MULTICOMP-PRO PP001944 Heat Shrink Tubing
This flexible heat shrink tubing made from environmentally friendly polyolefin provides excellent flame retardancy and high insulation performance for electrical applications. It offers a 2:1 shrink ratio, suitable for both commercial and military use, with resistance to common fluids and solvents. The tubing withstands temperatures from -55°C to +135°C, with a shrink temperature of 70°C and full recovery at 120°C. Its high tensile strength, elongation, dielectric strength, and certifications like UL224 VW-1 ensure durability and safety in wiring, splicing, and harnessing tasks involving electronic and electrical components.
MULTICOMP-PRO PP001944 Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +135°C
- Min. Shrink Temperature: 70°C
- Min. Full Recovery Temperature: 120°C
- Shrink Ratio: 2:1
- Colours: Black and Natural
- Part Number: PP001944
- Internal Diameter (Max): 2 mm
- Wall Thickness: 0.45 mm +0.1 mm
- Tensile Strength: 210.4 MPa
- Elongation: 2200%
- Dielectric Strength: 215 kV/mm
- Volume Resistivity: 21104 Q-cm
- UL Listing: UL224, 125°C 600V VW-1
- Resistant to common fluids and solvents
- Meets AMS DTL-23053/5 class 1 & 3
- Certification: RoHS Compliant
Buy the MULTICOMP-PRO Series Heat Shrink Tubing Insulation: PP001944
Purchase high-quality heat shrink tubing online for reliable electrical insulation and component protection. Perfect for wiring harnesses, splicing, and identification in industrial and military environments. Our polyolefin-based tubing withstands extreme temperatures from -55°C to +135°C, offers robust flame retardancy, and is resistant to fluids and solvents. Designed with optimal wall thickness and high dielectric strength, it ensures safety and durability. Easy to apply with a 2:1 shrink ratio, making installation quick and efficient. Available in versatile sizes and colors, buy now for your electrical projects and applications.
Get Enekonnt heat shrink tubing today—built for precision, flexibility, and long-lasting durability in electrical wiring and insulation.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP001944?
You can click on the BUY or RFQ button to purchase PP001944 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001944?
You can download the PP001944 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP001944?
MULTICOMP-PRO
