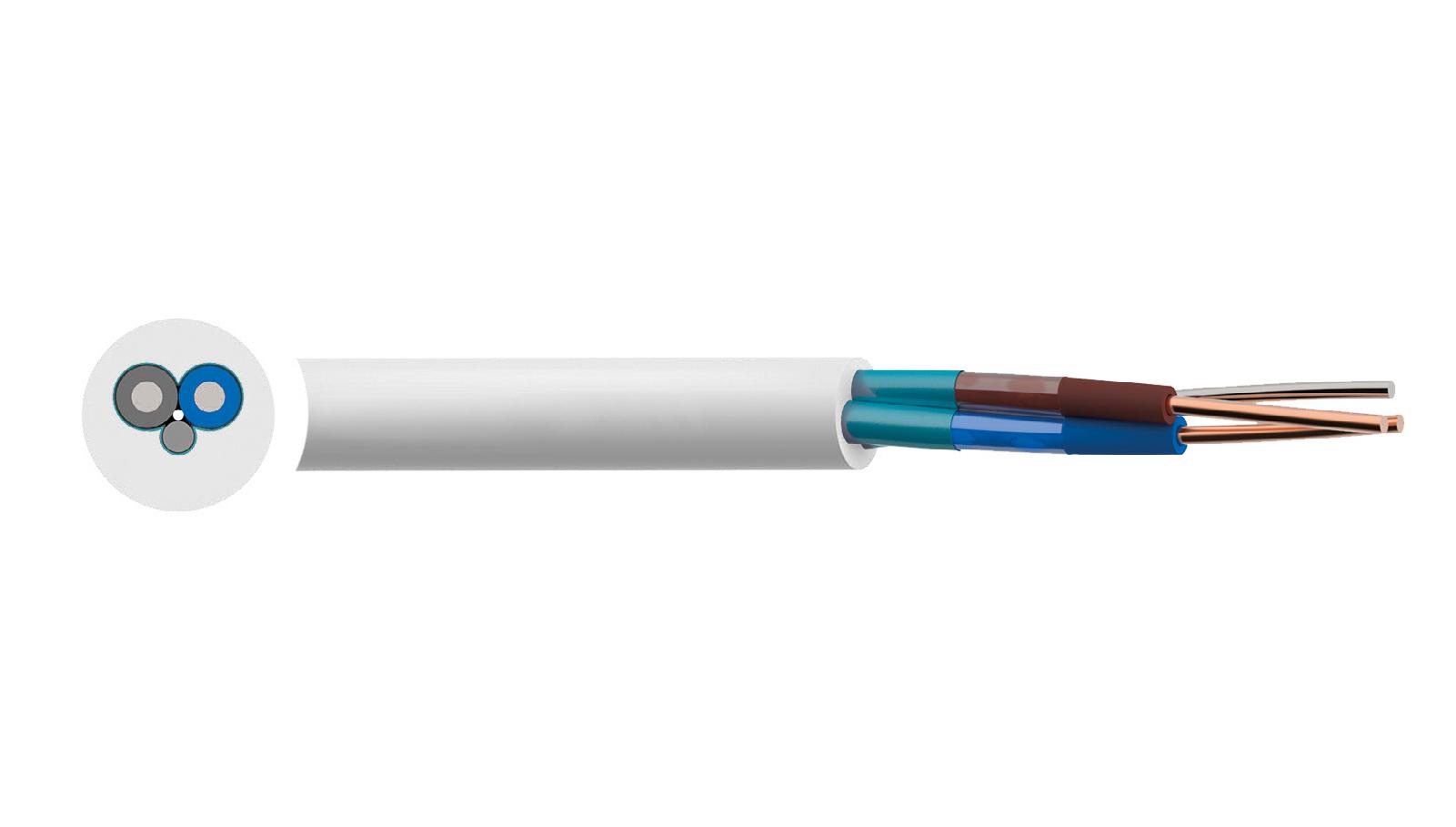

MULTICOMP PRO MP002413 Fire Resistant Multicore Cable
Enhanced fire-resistant multicore cables designed for critical fire detection, alarm, voice, and emergency lighting systems. These cables maintain operation during fires, ensuring safety and system functionality. Constructed with Class 1 solid conductors from 1.5mm² to 2.5mm², they feature mica/glass fire-resistant insulation covered by high-performance silicone rubber. The cables have an aluminum/polyester overall screen, tinned copper protective conductors, and LSZH outer sheaths in red or white, complying with BS standards, suitable for high-temperature environments and emergency applications.
MULTICOMP PRO MP002413 Fire Resistant Multicore Cable Specifications:
- Voltage Rating: 300V / 500V
- Temperature Rating: -40°C to +90°C
- Minimum Bending Radius: 6 x overall diameter
- Conductor: Class 1 Solid Conductor, 1.5mm² to 2.5mm²
- Insulation: Mica/Glass fire resistant tape covered by high-performance fire resistant silicone rubber
- Overall Screen: Aluminum/Polyester Tape
- Outer Sheath: LSZH (Low Smoke Zero Halogen)
- Core Identification: 2 cores with Blue, Brown + Bare Earth; 3 cores with Brown, Black, Grey + Bare Earth; 4 cores with Blue, Brown, Black, Grey + Bare Earth
- Sheath Colour: Red & White
- Standards & Approvals: BS 7629-1, BS 5839-1, BS EN/IEC 60754-1/2, BS EN 61034-2, BS EN 50200-PH30, PH60, PH90, PH120, BS 6387, BS 5266-1, BS 8519, BS 8434-2, BS EN 60228, BASEC tested
Buy the Multicomp Series Fire Resistant Cables: MP002413
Order the Multicomp fire-resistant multicore cable MP002413 online today to enhance your fire safety systems. These cables are specially designed with fire-resistant insulation, high-temperature endurance, LSZH outer sheath, and solid conductors for reliable operation during fire incidents. Compliant with BS standards, they are ideal for fire detection, alarm, voice, and emergency lighting circuits in buildings. Purchase online now for fast delivery, premium quality, and to ensure safety and compliance for your building infrastructure.
Buy Multicomp fire-resistant multicore cable MP002413 now and ensure reliable operation of your fire alarm and emergency systems during critical conditions.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002413?
You can click on the BUY or RFQ button to purchase MP002413 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002413?
You can download the MP002413 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002413?
MULTICOMP PRO
