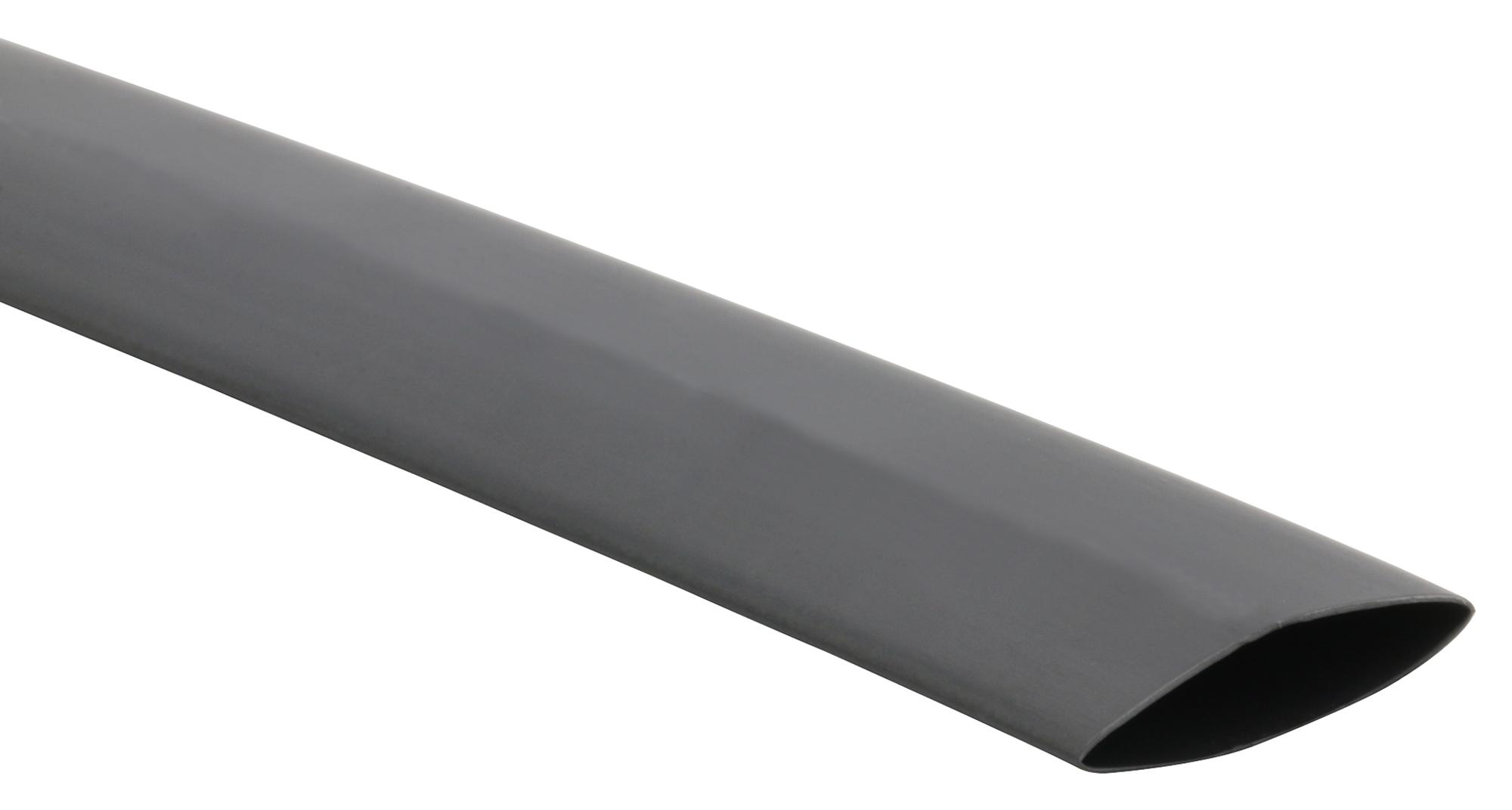

MULTICOMP PRO PP001954 heat shrink tubing
Flexible and highly flame-retardant heat shrink tubing made from polyolefin, suitable for electrical insulation and protecting inline components. Certified for military and commercial applications, it provides excellent resilience, bundling wires, and color-coding options. Designed to withstand temperatures from 1-55°C to +135°C, it features a 3:1 shrink ratio and resistance to common fluids and solvents. The tubing meets UL224 VW-1 flame test standards and AMS-DTL-23053/5 class 1&3, ensuring reliable performance in demanding environments under UL, CSA, and MIL specifications.
MULTICOMP PRO PP001954 heat shrink tubing Specifications:
- Operating temperature 1-55°C to +135°C
- Minimum Full Recovery Temperature 212°C
- Minimum shrink temperature 270°C
- Shrink Ratio 3:1
- Colors: Black and Natural
- UL224, 125°C 600V VW-1 certified
- Resistant to common fluids and solvents
- Meets AMS-DTL-23053/5 class 1&3
- Tensile Strength ASTM D 2671 210.4MPa
- Ultimate Elongation ASTM D 2671 2200%
- Heat Aging Tensile Strength at 158°C, 168hrs 27.3MPa
- Ultimate Elongation after aging 2100%
- Flammability UL224 VW-1 Pass
- Dielectric Strength ASTM D 150 215kV/mm
- Volume Resistivity ASTM D 876 21x10^0-Cm
- Copper stability UL224 Pass
- Copper corrosion UL224 No corrosion
Buy the Buy DrO-POWER Heat Shrink Part Number PP001954 Online
Enhance your electrical projects with DrO-POWER heat shrink tubing, offering exceptional flexibility, flame resistance, and MIL-spec standards. This reliable polyolefin tubing shrinks to 3:1, providing a snug fit for wires and components. Suitable for demanding environments, the tubing offers high dielectric strength, chemical resistance, and UL certification. Available in black and natural colors, it is perfect for bundling, color-coding, and protecting in-line electrical components. Purchase online today for quick delivery and trusted performance in your electrical and aerospace applications.
Order your DrO-POWER PP001954 heat shrink tubing today and ensure reliable electrical insulation with superior flame retardant and MIL-spec compliance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP001954?
You can click on the BUY or RFQ button to purchase PP001954 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001954?
You can download the PP001954 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP001954?
MULTICOMP PRO
