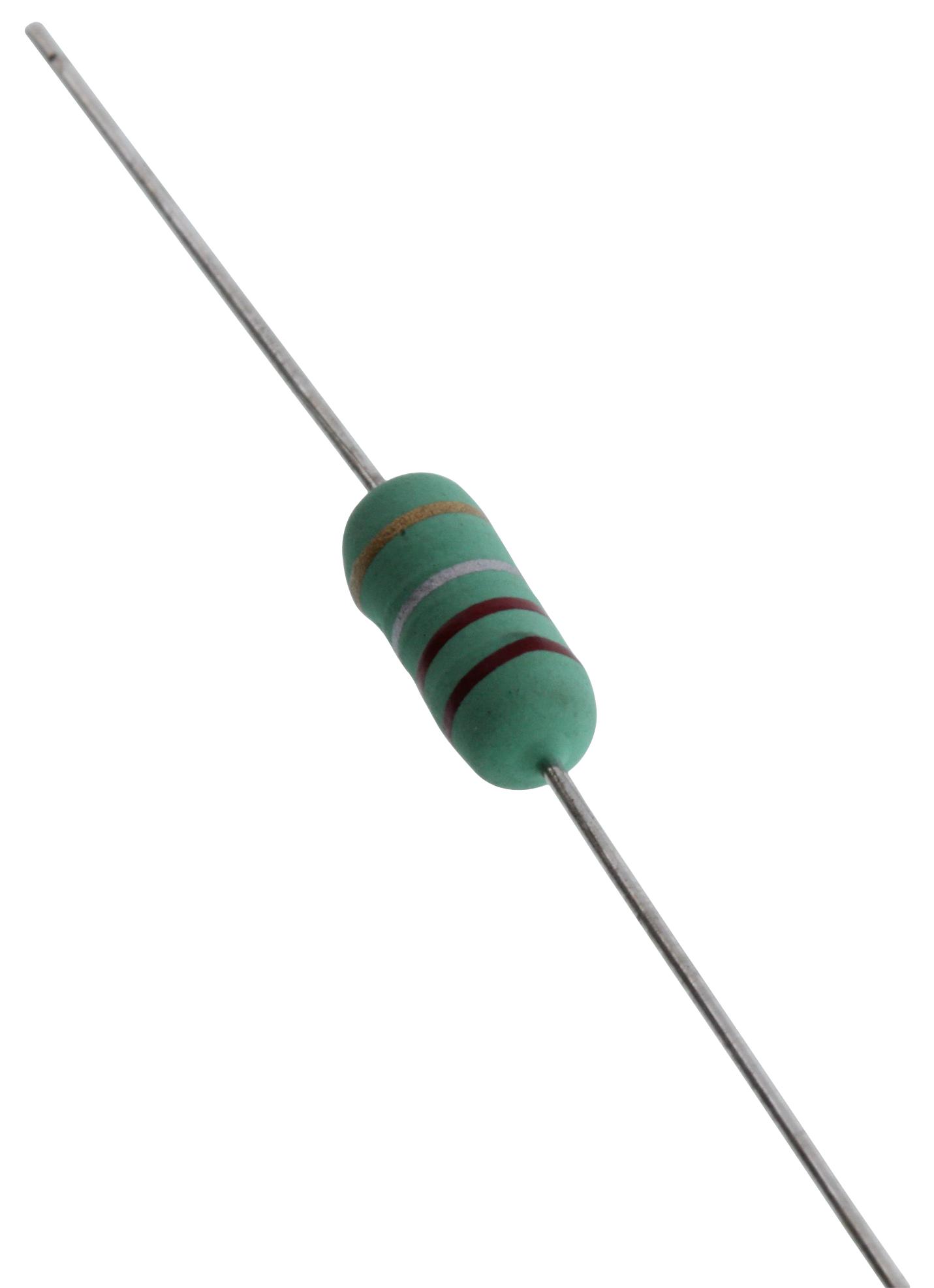

MULTICOMP PRO MCKNP02SJ022KA10 Power Wire Wound Resistor
The wire wound fixed resistor features a green color coating, high flame resistance, and non-inductive options, suitable for precise high-power applications with resistance values up to 3kΩ, mainly used in power electronics, industrial circuits, and fuse protection systems. Constructed with ceramic bodies, Cu-Ni Ni-Cr alloy resistance wire, tin-plated iron end caps, annealed copper lead wires, and insulated non-flame epoxy resin coating, these resistors offer excellent thermal stability, overload capacity, and voltage withstand capabilities, meeting industry standards in reliability and performance for demanding industrial environments.
MULTICOMP PRO MCKNP02SJ022KA10 Power Wire Wound Resistor Specifications:
- Power Ratings: 0.5W, 1W, 2W, 3W, 5W, 7W, 10W, 15W, 20W, 25W, 33W, 47W, 50W, 75W, 100W, 200W, 250W, 300W
- Resistance Range: 0.1Ω to 470kΩ (varies by series)
- Tolerance: ±2%, ±5%, ±10%, ±1% (E-24 Series and E96 Series available)
- Temperature Coefficient: < 200 to +400 PPM/°C
- Resistance Material: Cu-Ni Alloy / Ni-Cr Alloy
- Body Material: Ceramics
- End Cap Material: Steel (Tin plated iron surface)
- Lead Wire: Annealed Copper Wire coated with Tin
- Insulation Coating: Light Green non-flame epoxy resin, compliant with UL 94V-0
- Size Dimensions: Varying by power rating, typical D1 from 3.5mm to 85mm, length from 10mm to 735mm, diameter from 0.54mm to 0.75mm
- Maximum Voltage Withstanding: Up to 1500V depending on size
- Features: Flame retardant, non-inductive, high overload capacity, suitable for power supply, industrial circuitry, and fuse protection applications
Buy the Multicomp PRO 022KA10 – Reliable Power Wire Wound Resistors for Industrial Applications
Purchase the Multicomp PRO 022KA10 wire wound resistor online now to ensure reliable performance in industrial, power, and electronic circuits. Designed with a ceramic body and flame-resistant epoxy coating, this resistor offers excellent thermal stability, overload capacity, and voltage withstand features, suitable for demanding environments. Featuring a broad resistance range, varying power ratings, and industry-standard tolerances, it ensures long-lasting durability, safety, and high efficiency for power supply systems, industrial equipment, and fuse protection. Buy now to optimize your electrical projects with trusted quality.
Get Multicomp PRO 022KA10 today—built for high power, flame resistance, and industrial durability in demanding applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCKNP02SJ022KA10?
You can click on the BUY or RFQ button to purchase MCKNP02SJ022KA10 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCKNP02SJ022KA10?
You can download the MCKNP02SJ022KA10 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCKNP02SJ022KA10?
MULTICOMP PRO
