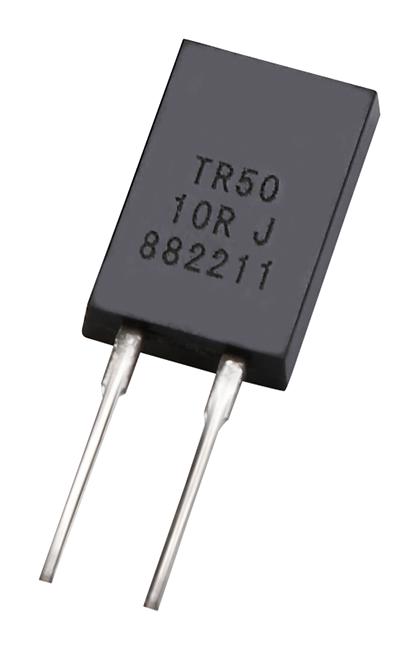

MULTICOMP-PRO MCTR50FDE1002 Power Resistor
The multicomp power resistor is a high-performance, TO-220 style component capable of dissipating 50 watts at 25°C when heat sink mounted. Featuring an alumina substrate and mold protection, it's designed for switching power supplies, pulsing applications, UPS systems, and voltage regulation with a non-inductive design for high-frequency operation. It offers electrical isolation, a maximum operating voltage of 350V, and a temperature range from -65°C to +150°C, ensuring reliable performance in demanding electronic environments. RoHS compliant for environmentally safe use.
MULTICOMP-PRO MCTR50FDE1002 Power Resistor Specifications:
- Power Rating: 50 Watts at 25°C case temperature
- Maximum Operating Voltage: 350V
- Dielectric Strength: 1,800V AC
- Insulation Resistance: 10 GΩ minimum
- Working Temperature Range: -65°C to +150°C
- Resistance Range: < 10Ω
- Resistance TCR: Referenced to 25°C, ±30 PPM/°C
- Construction: Alumina substrate with resistor layer and lead in a molded case
- Lead Material: Tinned Copper
- Short Time Overload Test: AR ±0.3% at 2x rated power for 5 seconds
- Load Life Stability: AR ±1.0% over 2,000 hours at rated power
- Thermal Shock: AR ±0.3% from -65°C to +150°C, 100 cycles
Buy the Buy multicomp Power Resistor Part Number MCTR50FDE1002 Online
Discover the multicomp 50-watt power resistor, ideal for switching power supplies, UPS, voltage regulation, and pulsing applications. This TO-220 package offers high efficiency, thermal stability, and electrical isolation, making it perfect for demanding electronic environments. RoHS compliant, with a maximum voltage of 350V and operating temperature up to 150°C, it combines durability with safety. Purchase online now to ensure your projects benefit from top-quality, reliable power components designed for professional engineering needs.
Order your multicomp MCTR50FDE1002 power resistor today and ensure your power management projects benefit from reliable high-wattage performance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCTR50FDE1002?
You can click on the BUY or RFQ button to purchase MCTR50FDE1002 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTR50FDE1002?
You can download the MCTR50FDE1002 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCTR50FDE1002?
MULTICOMP-PRO
