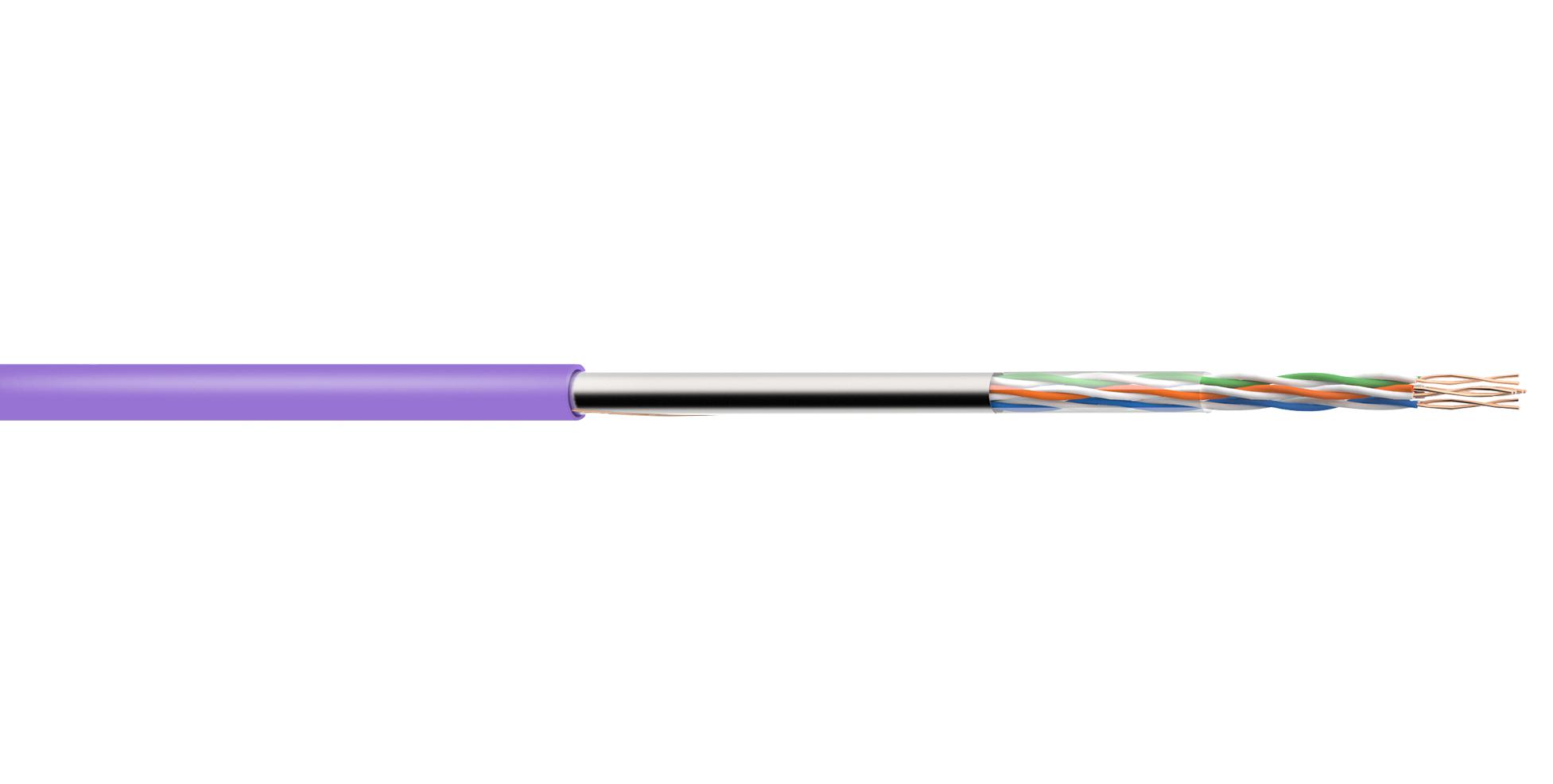

MULTICOMP PRO PP002140 Network cable
The screened Cat 5e F/UTP LSZH cable is a high-performance data transmission cable designed for reliable network connections. Constructed with solid copper conductors and insulated with HDPE, it features an aluminium foil screen for interference protection and a low smoke zero halogen sheath. It supports frequencies up to 100MHz, enabling Gigabit Ethernet speeds. The cable has a violet sheath, a diameter of 5.8 mm, and is certified to ISO/IEC 11801 and TIA standards. Suitable for indoor installations, it offers durability and high signal integrity for network applications.
MULTICOMP PRO PP002140 Network cable Specifications:
- Construction: Solid copper conductor, HDPE insulation, aluminium foil shield, LSZH sheath
- Number of Pairs: 4
- Nominal Diameter: 5.8 mm
- Sheath Colour: Violet
- Frequency Range: Up to 100MHz
- Bending Radius: Fixed: 4 x overall diameter, Flexed: 8 x overall diameter
- Temperature Rating: Fixed: -30°C to +50°C
- Screen: Aluminium foil
- Standards: ISO/IEC 11801, TIA 568C.2, YD/T1019
- Weight: Approx. 14 kg per 305m reel
- Cable Diameter: Nominal overall diameter 5.8 mm
Buy the Buy Multicomp Screened Cat 5e Part Number PP002140 Online
Get your Multicomp SeriesPP002140 screened Cat 5e network cable today to enhance data networking reliability, support gigabit speeds, and ensure quality with LSZH flame-retardant sheath. Available in 305 meters reel or per meter, this high-performance cable features a solid copper core, aluminium foil shielding for interference protection, and a violet LSZH sheath. Perfect for indoor networking environments, it meets international standards, offers excellent flexibility, and provides durable, high-speed data transmission for demanding Ethernet applications.
Order your Multicomp SeriesPP002140 screened Cat 5e cable today and ensure reliable, interference-free data transmission with durable LSZH insulation.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP002140?
You can click on the BUY or RFQ button to purchase PP002140 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002140?
You can download the PP002140 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP002140?
MULTICOMP PRO
