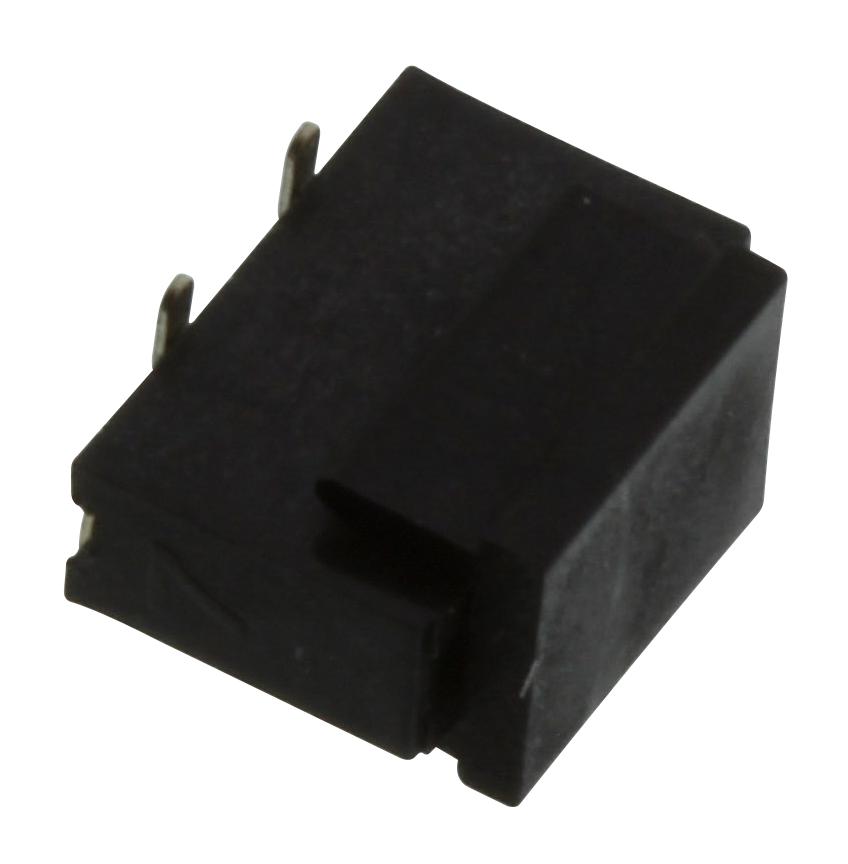

MULTICOMP PRO MCSVS1S05G PCB Socket with Cap
This 1.27mm PCB socket with cap features a single-row, vertical, SMD design suitable for compact electronic assemblies. It supports a current rating of 1A (AC/DC) and a voltage rating of 50V (AC/DC). Made with high-temperature plastic insulators rated UL94V-0, the contact component is phosphor bronze with gold plating for reliable connectivity. It withstands voltages up to 500V AC for one minute and operates effectively within temperatures from 1-25°C to +105°C. Its precise dimensions ensure easy surface-mount integration for various PCB designs, providing stable electrical connections for electronic modules.
MULTICOMP PRO MCSVS1S05G PCB Socket with Cap Specifications:
- Current Rating: 1A AC/DC
- Voltage Rating: 50V AC/DC
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 1000MΩ Min
- Withstanding Voltage: 500V AC for one minute
- Operating Temperature Range: 1-25°C to +105°C
- Insulator Material: High temp. Plastic UL94V-0
- Contact Material: Phosphor Bronze
- Contact Plating: Gold Plated
- Dimension A: 2.54mm for 3-position, extending accordingly for other models
- Dimension B: 4.19mm for 3-position, varying with number of positions
- Design: Single row, vertical SMD type
- RoHS compliant
- Suitable for surface mounting
- Number of Positions: 3 to 10+ (depending on model)
Buy the Buy Multicomp Pro PCB Socket Part Number MCSVS1S05G Online
Enhance your electronic assembly with this high-quality 1.27mm PCB socket with cap, designed for vertical surface-mount applications. Made from high-temp plastic with gold-plated phosphor bronze contacts, it offers excellent electrical performance and durability. Rated for 1A and 50V, it withstands voltages up to 500V for one minute, ensuring safe operation across temperature ranges from 1-25°C to +105°C. Its compact design makes it ideal for space-constrained electronic modules, providing reliable and stable connections in various PCB configurations.
Buy Multicomp Pro MCSVS1S05G now and experience reliable surface-mount connections for your electronic projects.
