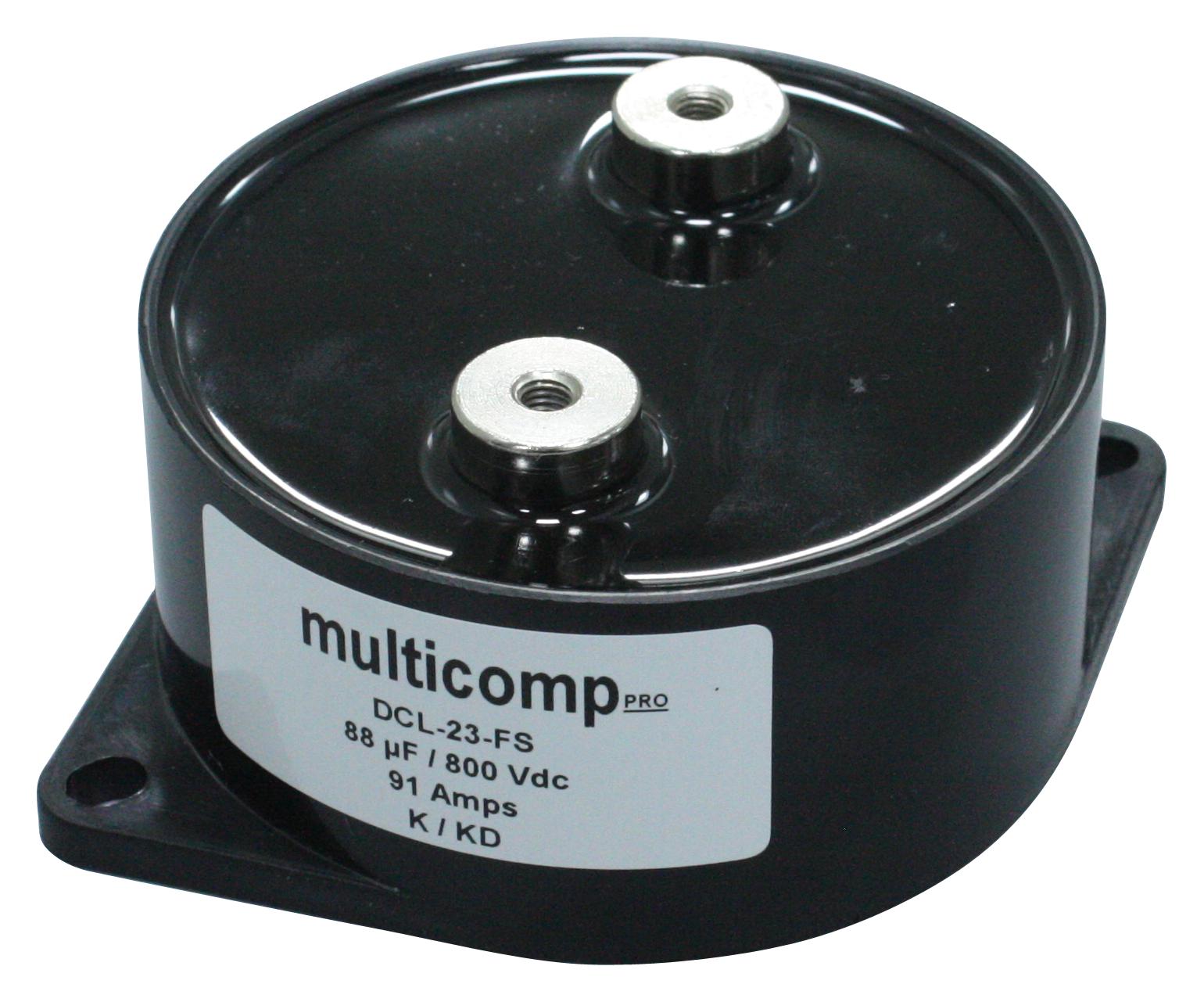

MULTICOMP-PRO MP003984 DC Link Capacitor
This high-performance DC link film capacitor features metallized polypropylene film construction, self-inductance as low as 11nH, ESR as low as 0.5mΩ, and a low profile design. It is suitable for DC filtering, wind and solar power inverters, induction heaters, electric vehicle inverters, and motor drives. The capacitor offers a life expectancy of up to 100,000 hours, integrated mounting flanges, UL94-V0 flame retardant casing, and excellent thermal conductivity for reliable operation in demanding electrical applications. Rated voltages range from 700V to 1800V, with capacitance values from 30μF to 265μF and temperature tolerance ±10%.
MULTICOMP-PRO MP003984 DC Link Capacitor Specifications:
- Electrode material: Metallised polypropylene film
- Winding construction: Polypropylene film, metallised polypropylene film
- Enclosure: Preformed UL 94-VO plastic case with thermosetting resin-fill
- Terminals: Nickel plated brass
- Capacitance range: 30μF to 265μF
- Rated voltage V DC: 700V, 800V, 900V, 1000V, 1200V, 1400V, 1600V, 1800V
- Test voltage: 1.3x rated voltage V DC for 60 seconds; terminal-to-case KV AC at 50Hz for 60 seconds
- Dissipation factor: 0.0015 at 100Hz and 25°C
- Temperature range: 0°C to +105°C
- Insulation resistance: MΩ x μF at 25°C
- Marking: Grade, capacitance in pF, rated voltage V DC, max current Arms, capacity tolerance, manufacturing code
- Dimensions: Size varies from 30mm x 51mm to 85mm x 79mm depending on model
Buy the Multicomp Series DC Link Capacitor: MP003984
Enhance your power systems with our durable and reliable DC link film capacitor. Featuring metallized polypropylene construction, low inductance, and low ESR, this capacitor ensures efficient energy transfer, reduced noise, and long life. Perfect for inverters, motor drives, and renewable energy applications, it withstands high voltages up to 1800V and temperatures up to 105°C. Easy to install with integrated flanges and marked for easy identification, this capacitor delivers consistent performance in demanding environments. Buy online now for quality and efficiency.
Get Multicomp series MP003984 high-voltage film capacitor today—designed for precision and long-lasting durability in power electronics.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP003984?
You can click on the BUY or RFQ button to purchase MP003984 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP003984?
You can download the MP003984 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP003984?
MULTICOMP-PRO
