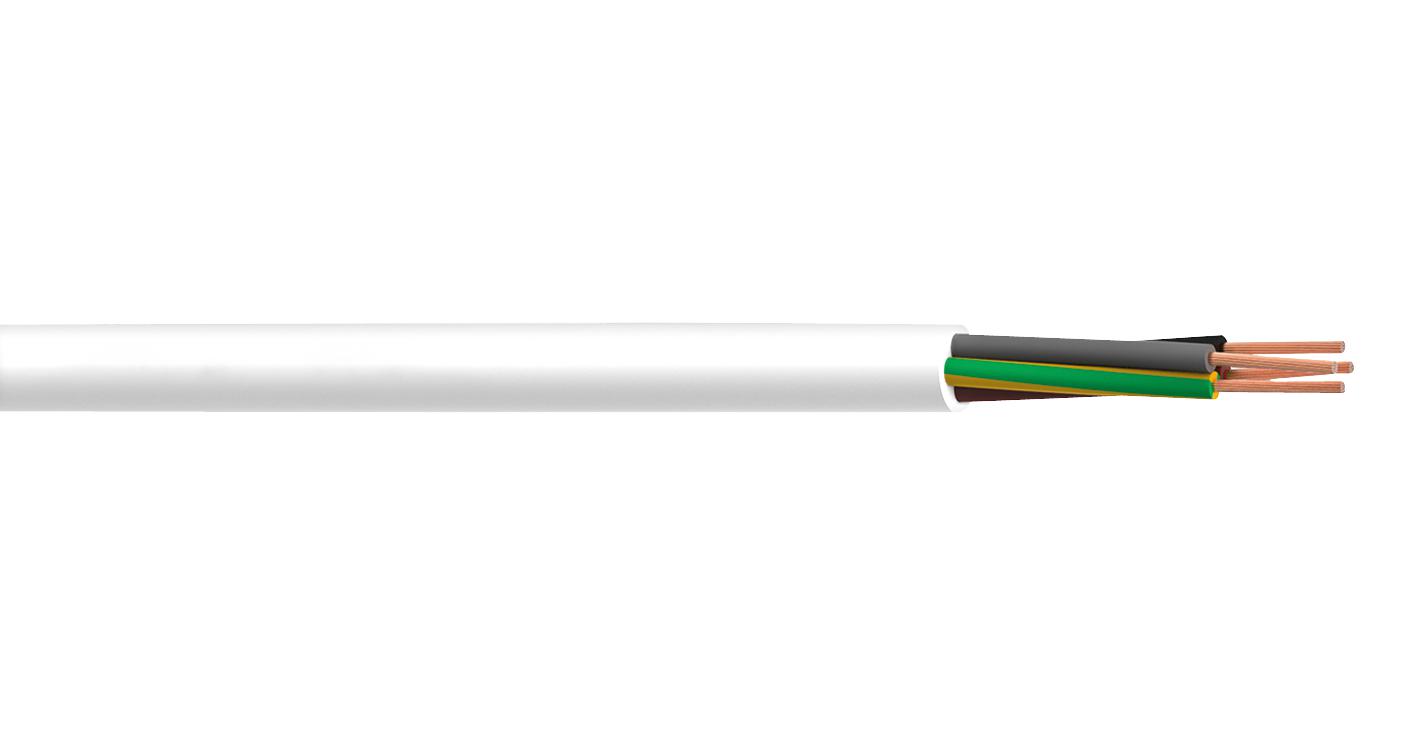

MULTICOMP PRO PP002159 Flexible Cable
Flexible cable suitable for internal wiring and supply connections in high-temperature zones such as lighting applications. Constructed with Class 5 flexible copper conductors, insulated with PVC Type TI3, and sheathed with PVC Type TM3, this RoHS-compliant cable offers reliable performance for indoor use. Available in multiple core configurations and cross-sectional areas, it meets BS EN 50525-2-11 and IEC standards. Designed for ease of installation with minimum bending radii and rated for voltages up to 300/500V, ensuring safety and durability in electrical installations.
MULTICOMP PRO PP002159 Flexible Cable Specifications:
- Voltage Rating: 300/500V
- Temperature Rating: Fixed: 0°C to +90°C
- Minimum Bending Radius: Fixed: 6 x overall diameter, Flexed: 10 x overall diameter
- Construction: Copper conductor, PVC insulation Type TI3, PVC sheath Type TM3
- Core Identification: 2 core: Blue & Brown, 3 core: Green/Yellow, Blue & Brown, 4 core: Green/Yellow, Brown, Black & Grey
- Sheath Colour: White
- Conductor: Class 5 flexible copper according to BS EN 60228
- Overall Diameter: 9.7 mm
- Cable Standards: BS EN 50525-2-11, BS EN/IEC 60332-1-2
- Cable Length: Reels of 100m or per metre
- Maximum Resistance at 20°C: 13.3 Ω/km (for 1.5mm² wire)
- Current Capacity: 16 Amps for 1.5mm² cross section
- Voltage Drop: 32 mV/A·m for 1.5mm² wire
- Operating Temperature: Up to +90°C in fixed wiring conditions
Buy the Buy Multicomp Flexible Cable Part Number PP002159 Online
Purchase multicomp Series flexible cable online today for high-quality indoor wiring solutions. Designed for reliable performance in high-temperature zones like lighting systems, with PVC insulation and sheath for durability. Available in 2, 3, or 4 core configurations and various cross-sectional areas, this RoHS-compliant cable offers ease of installation with minimum bending radii. Ideal for electrical installers seeking a dependable, UL-listed wiring product that ensures safety, flexibility, and long-lasting durability in complex electrical environments.
Get multicomp Series 309-Y / HOSV2V2-F flexible cable today—built for reliable indoor wiring in high-temperature zones.
