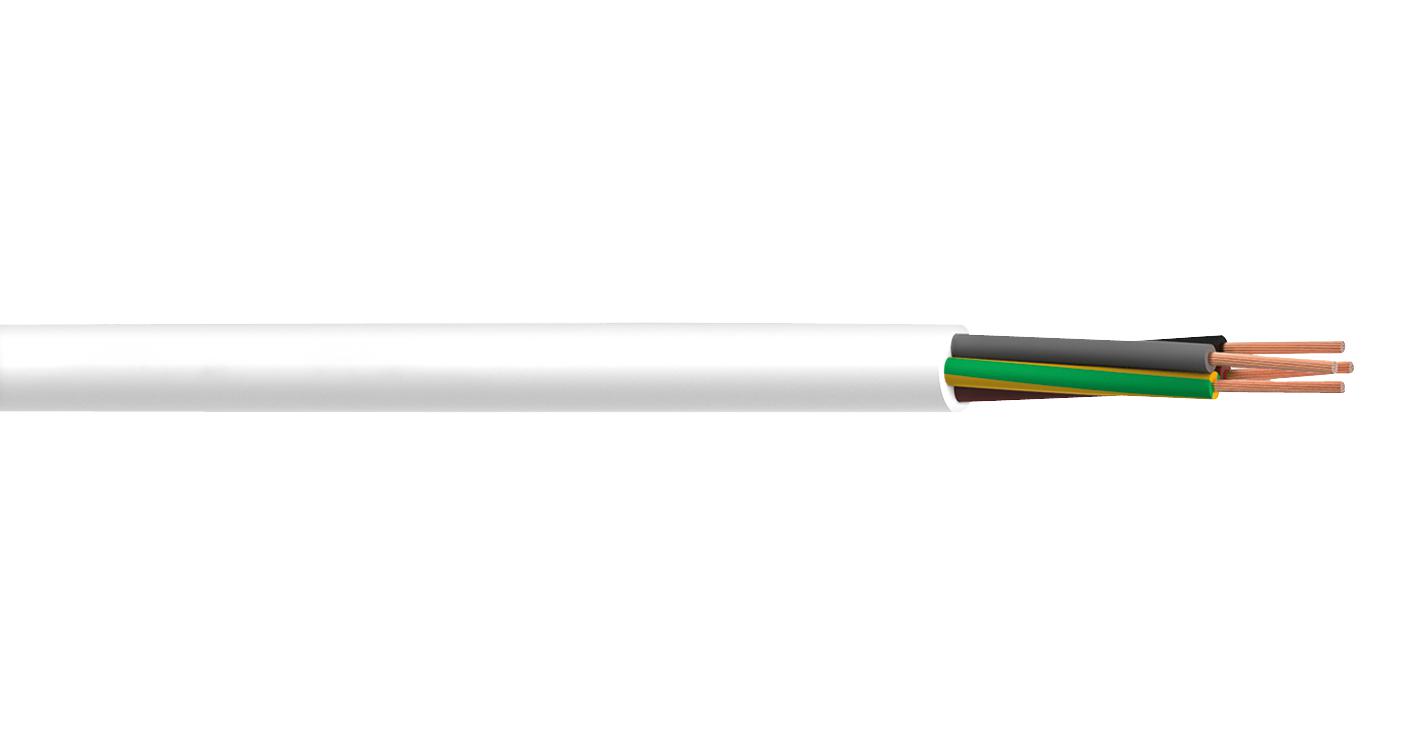

MULTICOMP PRO PP002162 Flexible Cable
This flexible cable features a multi-core design with 2, 3, or 4 cores, suitable for internal wiring and high-temperature zones such as lighting. Constructed with class 5 flexible copper conductors, it is insulated and sheathed in durable PVC Type TI3 and TM3 respectively, conforming to BS EN standards. The cable supports various cross-sectional areas from 0.75mm² to 2.5mm², with temperature ratings up to +90°C. It is available in white, supplied on reels of 100 meters or by the meter, ideal for industrial electrical applications requiring reliable, RoHS-compliant wiring solutions.
MULTICOMP PRO PP002162 Flexible Cable Specifications:
- Voltage Rating: 300/500V
- Temperature Rating: Fixed: 0°C to +90°C, Flexed: 6 x overall diameter, 10 x overall diameter
- Conductor Material: Class 5 flexible copper according to BS EN 60228
- Insulation Material: PVC Type TI3 conforming to BS EN 50363
- Sheath Material: PVC Type TM3 conforming to BS EN 50363
- Core Configurations: 2 core, 3 core, 4 core options
- Core Colors: Blue & Brown for 2 core, Green/Yellow, Blue, & Brown for 3 core, Green/Yellow, Brown, Black & Grey for 4 core
- Nominal Cross-Sectional Areas: 0.75mm², 1mm², 1.5mm², 2.5mm²
- Nominal Overall Diameter Range: 6.3 mm to 9.7 mm
- Weight: 63 kg/km to 170 kg/km depending on configuration
- Standards: BS EN 50525-2-11, BS EN/IEC 60332-1-2
- Available on reels of 100m or per meter
- Current Rating: 6-25 A depending on size
- Voltage Drop: 32-62 mV/Alm depending on cross-section
- De-Rating Factors: Based on ambient temperature up to 60°C and standard factors for higher temperatures
Buy the Multicomp Series Flexible Cable: 309-Y / HOSV2V2-F
Order the Multicomp flexible cable 309-Y / HOSV2V2-F online today and enjoy dependable, RoHS-compliant internal wiring solutions for various electrical systems. Our flexible, insulated cables are perfect for high-temperature zones like lighting applications, ensuring safety and compliance. Available in multiple core configurations and lengths, these cables are designed with durable PVC insulation and sheathing, conforming to BS standards. Whether for industrial or commercial use, purchase online now for fast delivery and expert support, ensuring your electrical projects are completed with confidence and quality.
Buy Multicomp flexible cable 309-Y / HOSV2V2-F now and experience reliable internal wiring suited for high-temperature indoor electrical installations.
