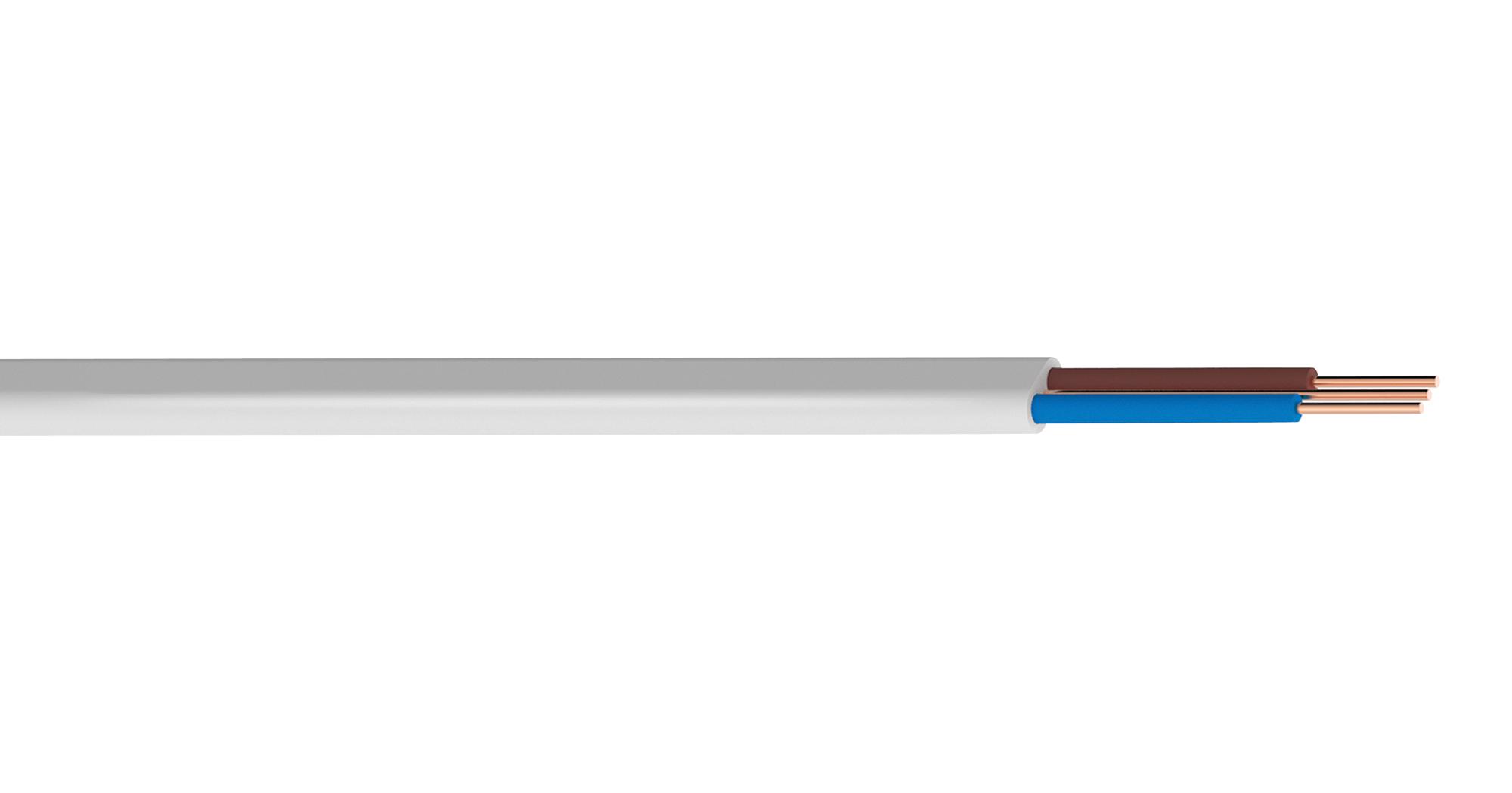

MULTICOMP PRO PP002171 Twin and Earth Cable
This Twin and Earth LSZH cable is suitable for installation in walls, on boards, and embedded in plaster, ensuring safety against fire, smoke, and toxic fumes. Constructed with cross-linked polyethylene insulation and a LSZH sheath, it meets BS 7211 standards and IEC regulations. The cable features copper conductors, either solid or stranded depending on size, with a voltage rating of 300/500V. Available in various sizes from 1.5mm² to 10mm², each reel provides reliable electrical performance with low resistance and high current capacity for safe and efficient wiring applications.
MULTICOMP PRO PP002171 Twin and Earth Cable Specifications:
- Voltage Rating: 300/500V
- Temperature Rating: -5°C to +70°C
- Minimum Bending Radius: 3 x overall diameter
- Conductor Material: Copper (solid or stranded depending on size)
- Insulation: XLPE (Cross-Linked Polyethylene) Type GP8
- Sheath: LSZH (Low Smoke Zero Halogen) Type LTS2
- Core Identification: Brown, Blue; White for sheath
- Standards Compliance: BS 7211, IEC 60754-1/2, IEC 61034, BS EN/IEC 60332-1-2
- Cable Length: Available on reels of 100m or per metre
- Cross-Sectional Area: 1mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm²
- Construction: 1mm² to 2.5mm² – Class 1 solid copper; 4mm² to 10mm² – Class 2 stranded copper
- Physical Dimensions: Nominal cross-sectional diameter varies by size, lightweight for easy handling
- Application: Power supply wiring, embedded and surface electrical installations, indoor wiring
Buy the Multicomp Series Twin and Earth LSZH Cable: PP002171
Purchase the Multicomp Series twin and earth LSZH cable online for safe, compliant, and high-quality electrical wiring solutions. Efficient for wall, in-channel, or embedded installations, this cable features low smoke zero halogen sheath and high-quality copper conductors for durability and safety. Available in various sizes with a voltage rating of 300/500V, ideal for electrical professionals seeking reliable performance across residential and commercial projects. Order now and ensure your wiring setup meets all safety standards while benefiting from quick delivery.
Get Multicomp Series PP002171 twin and earth LSZH cable today—built for safety, durability, and reliable electrical performance.
