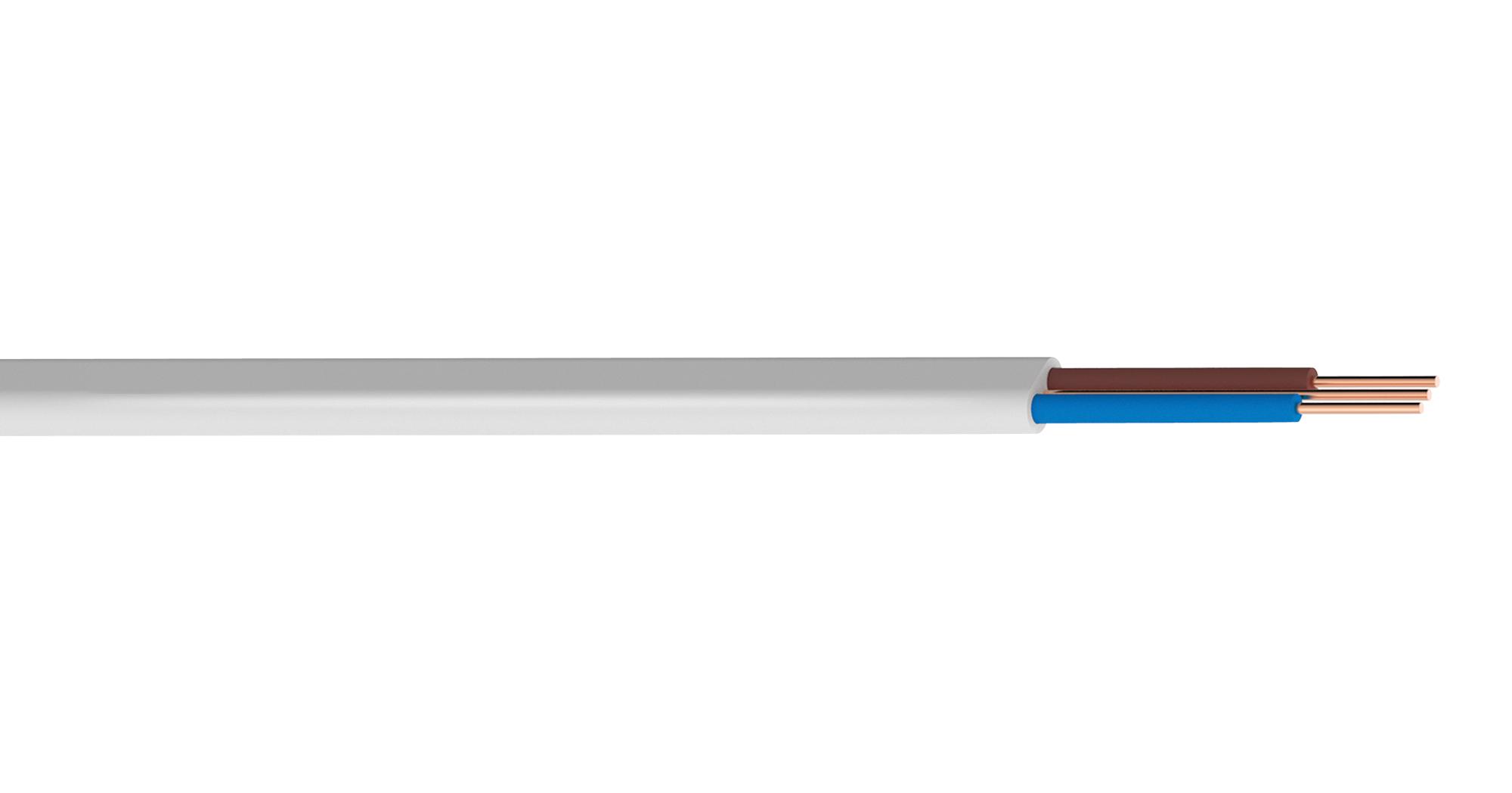

MULTICOMP PRO PP002175 Twin and Earth LSZH Cable
This twin and earth LSZH cable is designed for installations in walls, channels, or embedded in plaster, offering fire-resistant, smoke-emitting, and toxic fume reduction features. It features cross-linked polyethylene insulation and a low smoke zero halogen sheath, ensuring safety in emergency situations. Suitable for indoor electrical wiring, this cable provides reliable performance with copper conductors, available in various cross-sectional areas from 1mm² to 10mm², and is compliant with BS 7211, IEC standards. It is ideal for commercial and industrial buildings focusing on fire safety and environmental sustainability.
MULTICOMP PRO PP002175 Twin and Earth LSZH Cable Specifications:
- Voltage Rating: 300/500V
- Temperature Rating: -5°C to +70°C
- Minimum Bending Radius: 3 x overall diameter
- Core Identification: Brown, Blue
- Sheath Colour: White
- Cable Standards: BS 7211, IEC 60754-1, IEC 60754-2, IEC 61034, BS EN/IEC 60332-1-2
- Conductor Material: Copper
- Conductor Class: 1 Solid or 2 Stranded, depending on size
- Insulation Material: XLPE (Cross-Linked Polyethylene) Type GP8
- Sheath Material: LSZH (Low Smoke Zero Halogen) Type LTS2
- Nominal Cross Sectional Area: 1mm² to 10mm²
- Construction: 2 core, twin and earth
- Cable Length: Available on reels of 100m or per metre
- Wire Range: 1mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm²
- Wire Resistance at 20°C: 1mm² - 18.1 Ω/km, 1.5mm² - 12.1 Ω/km, 2.5mm² - 7.41 Ω/km, 4mm² - 4.61 Ω/km, 10mm² - 1.83 Ω/km
- Current Capacity: 11.5A (1mm²), 14.5A (1.5mm²), 20A (2.5mm²), 26A (4mm²), 32A (6mm²), 44A (10mm²)
Buy the Multicomp Series Twin and Earth LSZH Cable: PP002175
Buy the Twin and Earth LSZH Cable today from our online store—engineered for safety, durability, and compliance with BS 7211 standards. Ideal for building wiring, it features cross-linked polyethylene insulation and a low smoke zero halogen sheath, minimizing fire hazards and toxic fumes. Available in various sizes, this copper conductor cable ensures reliable electrical performance in residential, commercial, and industrial applications. Order now for prompt delivery and enjoy the peace of mind that comes with high-quality wiring solutions designed for safety and sustainability.
Get Multicomp Series PP002175 today—built for electrical safety and environmental sustainability.
