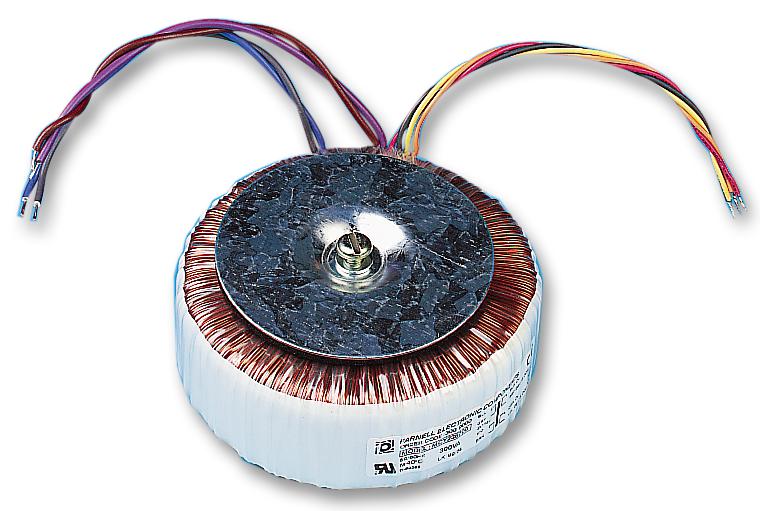

MULTICOMP-PRO MCTA16015 Toroidal Transformer
The Multicomp MCTA series are versatile toroidal transformers featuring dual primary windings for series or parallel connection at 115V or 230V, with power ratings from 15VA to 1000VA. They incorporate dual secondary windings, allowing independent or series/parallel use, and feature double-insulated primary leads and flexible lead-outs that can be trimmed without removing the enamel coating. All units are 100% electrically and flash tested, suitable for industrial, power management, and lighting applications. Each includes a mounting plate, foam pads, screw, nut, and washer, with a 12-month limited warranty. These transformers offer reliable performance, safety compliance, and easy installation, making them ideal for diverse electrical projects.
MULTICOMP-PRO MCTA16015 Toroidal Transformer Specifications:
- Power ratings: 15VA to 1000VA
- Input Voltage: 115V or 230V ±10%, 50/60Hz
- Primary Windings: Dual, connect in series or parallel
- Secondary Windings: Dual, independently or series/parallel connected
- Secondary Voltages: 2 x 6VAC to 2 x 55VAC depending on model
- Wire Gauge: 22AWG to 14 AWG (depending on model)
- Insulation: Double insulated primary leads, PVC sleeving rated 600V /105°C
- Standards: EN61558-1 / EN61558-2-4 / UL recognized
- Temperature Class: Winding wire Class H (180°C), insulation Class B (130°C)
- Physical Dimensions: Diameter varies with power rating, typical height 40-70mm
- Lead Lengths: Approximately 50mm with tinned ends, flexible lead-outs
- Testing: 100% electrical and flash testing
- Package includes: Transformer, mounting plate, foam pads, screw, nut, washer
Buy the Multicomp Series Toroidal Transformers: MCTA16015
Enhance your electrical projects with the reliable Multicomp Toroidal Transformers. Designed for industrial and power management needs, these transformers feature dual primary windings for versatile connection options, high-grade insulation, and rigorous testing for safety and performance. Easy to install with included mounting plates and foam pads, they support a wide range of power ratings from 15VA to 1000VA. Buy online to ensure fast delivery, expert support, and a trusted product tailored for efficient and safe operation in your electrical system.
Order your Multicomp SeriesToroidal Transformer today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCTA16015?
You can click on the BUY or RFQ button to purchase MCTA16015 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTA16015?
You can download the MCTA16015 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCTA16015?
MULTICOMP-PRO
