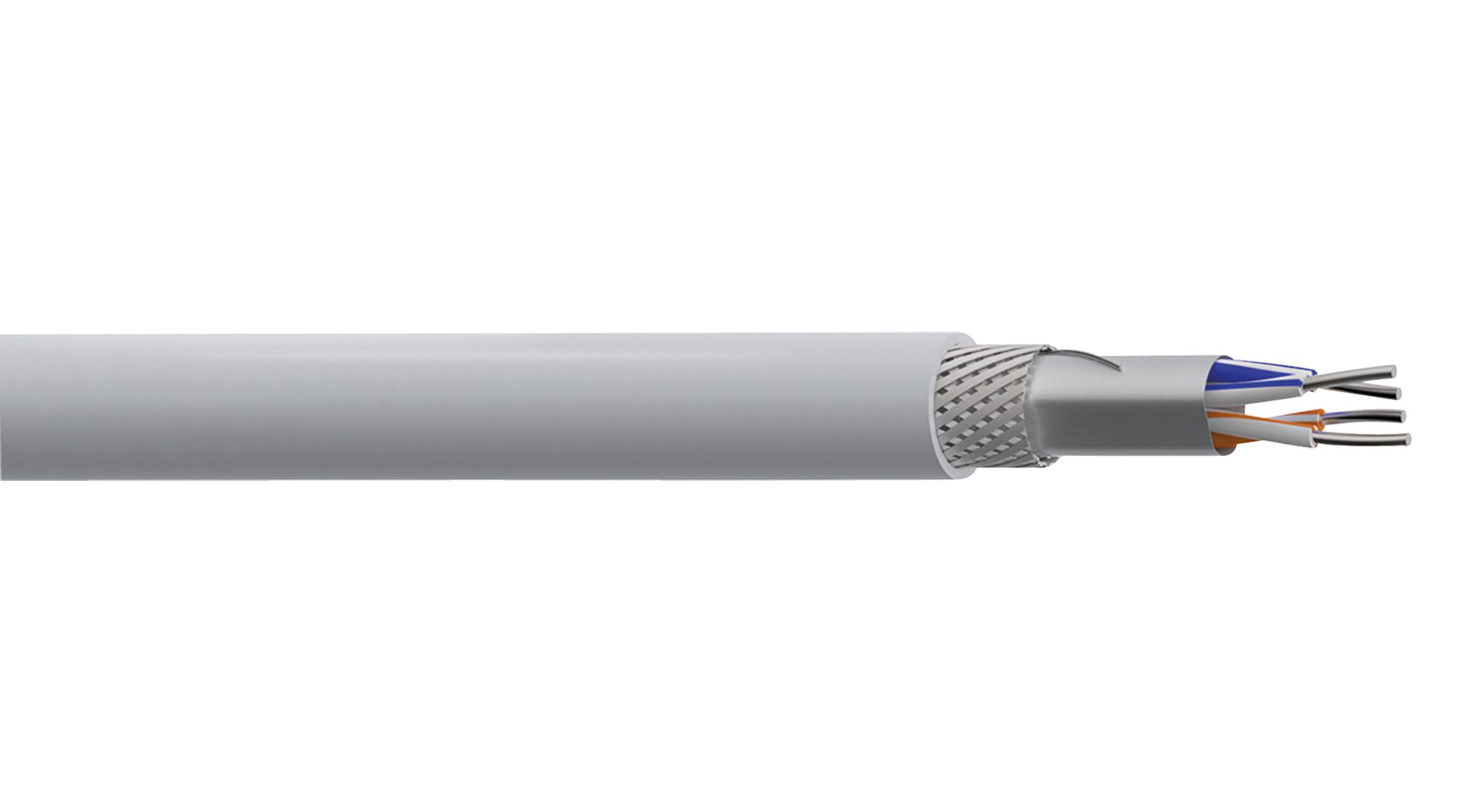

MULTICOMP PRO PP002187 multi-conductor data cable
This multi-conductor low capacitance cable is an ideal alternative to Belden 8102 for high-speed data transmission over extended distances. Designed for RS232 and RS422 applications, it features a foil and braid screen for superior shielding, ensuring minimal signal interference. Constructed with Class 2 stranded tinned copper conductors and Datalene® FPE insulation, it guarantees durability and stable performance in industrial environments. The grey sheath, rated for 300V and temperatures from -30°C to +80°C, complies with RoHS standards. Available on reels of 100m or per meter, it offers reliable connectivity for data communication systems.
MULTICOMP PRO PP002187 multi-conductor data cable Specifications:
- Number of Pairs: 2
- Conductor: 24 AWG, 7 strands, tinned copper
- Nominal Diameter: 0.032 mm
- Overall Diameter: 6.85 mm
- Nominal Weight: 50.6 kg/km
- Insulation: Datalene® FPE (Foam Polyethylene)
- Shielding: Beldfoil® (Aluminium foil polyester tape), Tinned Copper Wire Braid (TCWB)
- Drain Wire: Tinned Copper
- Sheath Material: PVC (Polyvinyl Chloride)
- Voltage Rating: 300V
- Temperature Range: -30°C to +80°C
- Minimum Bending Radius: 10 x overall diameter
- Application Standards: EIA RS-232, RS422, UL Style 2919, UL 1685
- Capacitance: 41.01 pF/im conductor to conductor, 72.18 pF/im conductor to shield
- Inductance: 0.65 μH per meter
- Impedance: 100 Ω at 20°C
Buy the Belden 8102 Alternative – Reliable Data Cable for Industrial Applications
Purchase this high-quality multi-conductor low capacitance cable online today to ensure reliable data transmission in your industrial projects. This cable features excellent shielding with foil and braid for minimized interference and consistent signal quality. Its construction with tinned copper conductors and Datalene® FPE insulation provides durability and stability over long distances. Suitable for RS232 and RS422 applications, the cable meets industry standards and RoHS compliance. Available on reels of 100 meters or per meter, it is perfect for industrial automation, communication, and control systems, ensuring high performance and long-lasting connectivity.
Buy multicomp low capacitance data cable now and enhance your industrial communication systems with dependable performance and shielding efficiency.
